1995 Yamaha YZF600R (YZF600RG) Steering Diagram

← All diagrams

Find the part on the Steering diagram for your 1995 Yamaha YZF600R (YZF600RG), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

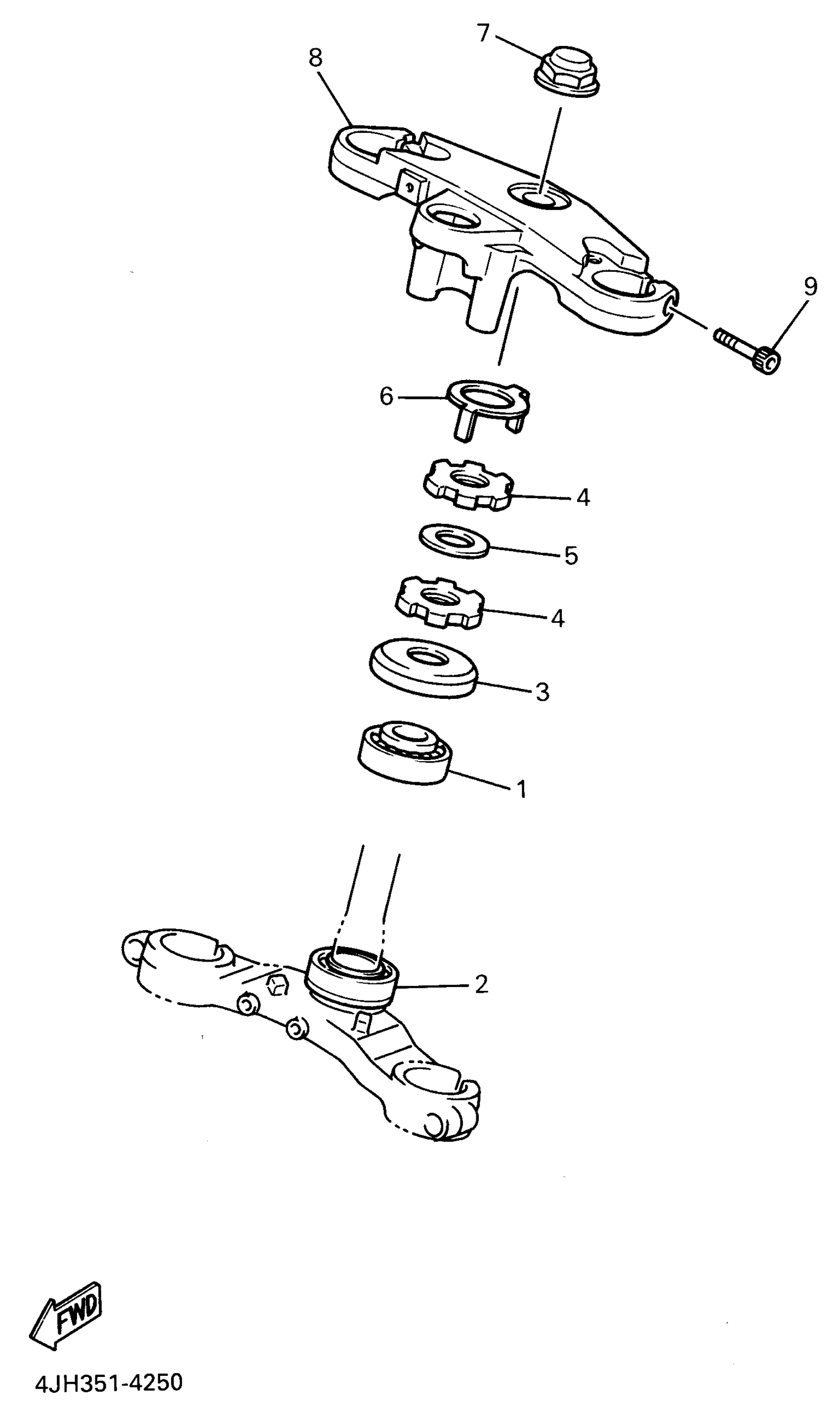

1995 Yamaha YZF600R (YZF600RG) Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRG, TAPERED ROLLER (409)

93332-00001-00

1
Out of stock

2

1

$60.13

In stock

3

COVER, BALL RACE 2

1W1-23416-00-00

—

$25.83

In stock

4

NUT

90179-25004-00

1

$20.78

In stock

5

WASHER, PLATE (26H)

90202-26142-00

1

$8.06

In stock

6

WASHER, SPECIAL

26H-23418-01-00

1

$12.68

In stock

7

NUT, CROWN(4FM)

90176-22081-00

1
Out of stock

8

CROWN, HANDLE

4JH-23435-00-00

1
Out of stock

9

BOLT,SOCKET

91314-08030-00

1

$2.29

In stock
← Rear Wheel Steering Handle →
