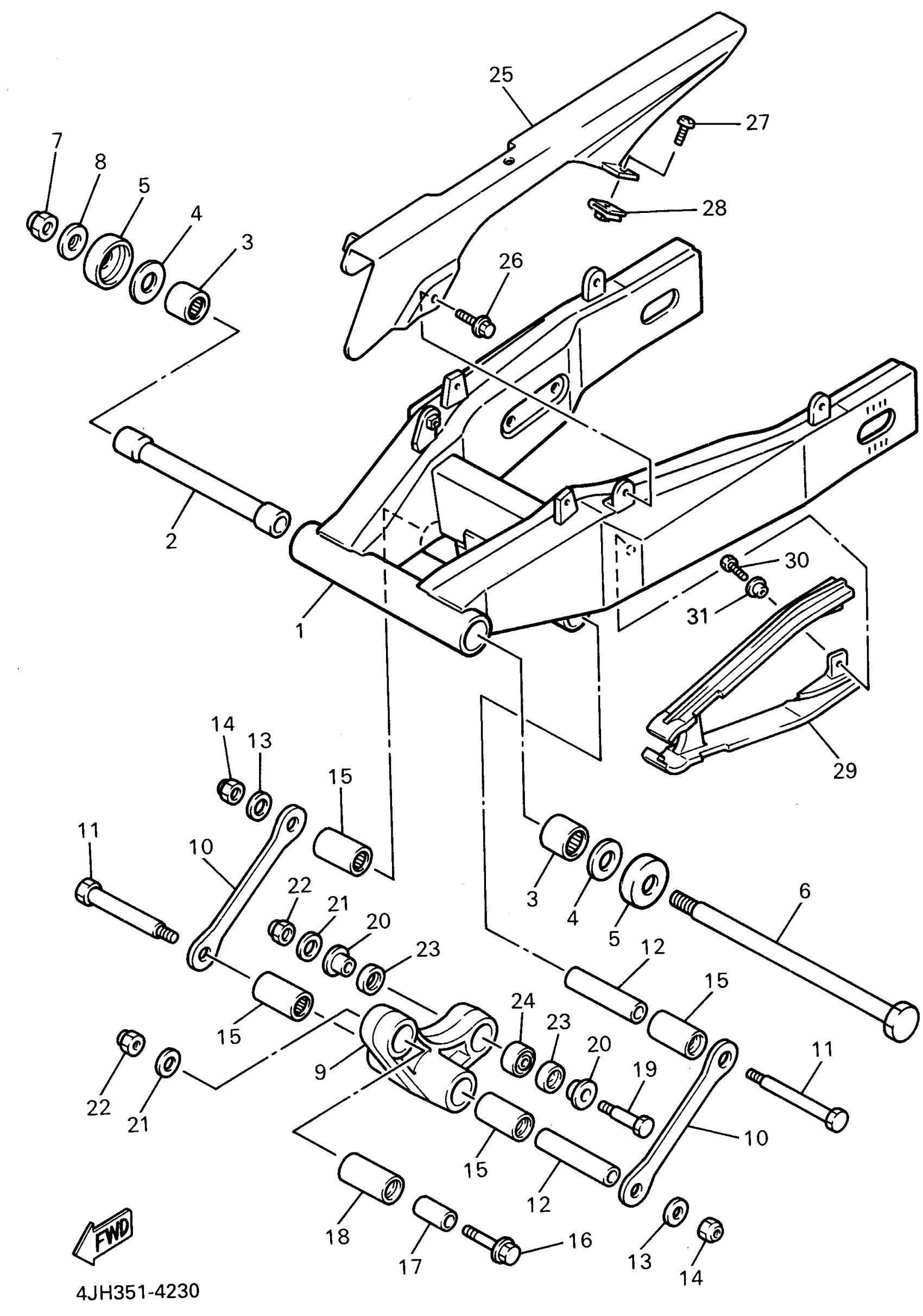

Yamaha YZF600RG (YZF600R) 1995 REAR ARM Diagram

#

Description
Price

1

REAR ARM COMP.

4JH-22110-00-T9

Unavailable

2

BUSH

47X-22184-00-00

Unavailable

3

BEARING (4X7)

93320-32403-00

$37.78

4

WASHER, PLATE(48H)

90201-161J3-00

Unavailable

5

COVER, THRUST 2

4X7-22129-00-00

$18.23

6

SHAFT, PIVOT

1UY-22141-10-00

$51.55

7

NUT, SELF-LOCKING

90185-16002-00

$14.11

8

WASHER, PLATE (5X6)

90201-160F6-00

$7.03

9

ARM,RELAY

3GM-2217A-01-00

Unavailable

10

ARM 1

3GM-2217M-00-00

Unavailable

11

BOLT(2GH)

90101-12673-00

$14.50

12

COLLAR(2GH)

90387-126T1-00

Unavailable

13

WASHER, PLATE (4N0)

90201-126A7-00

$5.86

14

NUT, U (4PM)

95617-12100-00

$3.54

15

BEARING, CYLINDRICAL(2GH)

93317-41761-00

$34.19

16

BOLT, WASHER BASED(3FA)

90105-10727-00

Unavailable

17

COLLAR(2MF)

90387-100T8-00

Unavailable

18

BEARING, CYLINDRICAL(2GH)

93317-42060-00

Unavailable

19

BOLT(1WG)

90101-10659-00

Unavailable

20

COLLAR(3BC)

90387-124W2-00

Unavailable

21

WASHER, PLATE(47X)

90201-101J1-00

Unavailable

22

NUT, U

95617-10100-00

Unavailable

23

OIL SEAL(47X)

93101-16131-00

Unavailable

24

BEARING(47X)

93399-99919-00

Unavailable

25

CASE, CHAIN

4JH-22311-00-00

Unavailable

26

BOLT, WITH WASHER(55K)

90119-06117-00

Unavailable

27

SCREW, BINDING (10V)

90154-05013-00

Unavailable

28

NUT, SPRING

90183-051A0-00

Unavailable

29

SEAL, GUARD

4JH-22151-00-00

Unavailable

30

BOLT, HEXAGON DEEP RECESS

97D95-06014-00

$1.57

31

C0LLAR

90387-062M9-00

Unavailable
