1995 Yamaha YZF600R (YZF600RG) Stand Diagram

← All diagrams

Find the part on the Stand diagram for your 1995 Yamaha YZF600R (YZF600RG), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

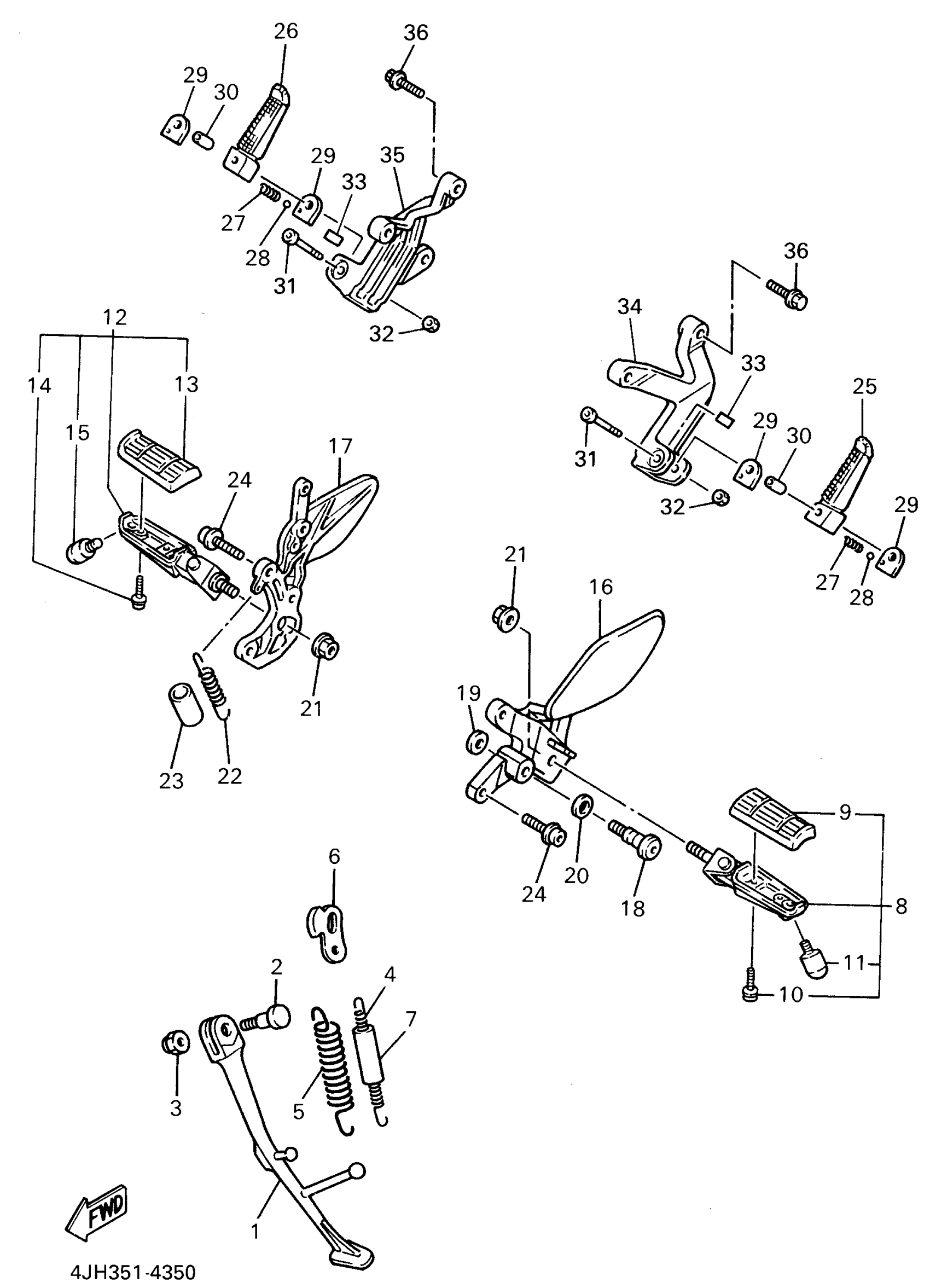

1995 Yamaha YZF600R (YZF600RG) Stand Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STAND, SIDE

4FM-27311-00-00

1
Out of stock

2

BOLT(2GH)

90109-104E6-00

1

$8.12

In stock

3

NUT, U

90185-10037-00

1

$6.68

In stock

4

SPRING, TENSION (4K0)

90506-18224-00

1

$4.20

In stock

5

SPRING, TENSION (4K0)

90506-26225-00

1
Out of stock

6

LINK, SIDE STAND

4FM-27315-00-00

—
Out of stock

7

GUIDE, SIDE STAND

1TX-27351-00-00

—
Out of stock

8

FRT FOOTREST ASY L

4JH-27410-01-00

1
Out of stock

9

COVER, FOOTREST

3YX-27413-00-00

1

$25.22

In stock

10

SCREW, PAN HEAD

98507-05014-00

1

$6.18

In stock

11

BOLT

3HE-27435-00-00

1
Out of stock

12

FRONT FOOTREST ASSY (RIGHT)

4JH-27420-01-00

1
Out of stock

13

COVER, FOOTREST

3YX-27413-00-00

1

$25.22

In stock

14

SCREW, PAN HEAD

98507-05014-00

1

$6.18

In stock

15

BOLT

3HE-27435-00-00

1
Out of stock

16

BRACKET 2

4FM-27442-02-00

—
Out of stock

17

BRACKET 3

4FM-27443-02-00

—
Out of stock

18

BOLT

4BP-27434-11-00

—

$2.57

In stock

19

WASHER (853)

90201-08326-00

—

$6.17

In stock

20

WASHER, PLATE(55K)

90201-127J6-00

—

$5.66

In stock

21

NUT(4KG)

90179-10658-00

—

$7.49

In stock

22

SPRING, TENSION(46X)

90506-20377-00

—
Out of stock

23

HOSE(3GM)

90446-17346-00

—
Out of stock

24

BOLT,SOCKET

91314-08025-00

—

$6.17

In stock

25

FOOTREST, REAR 1

3XV-27431-01-00

—

$35.77

In stock

26

FOOTREST, REAR 2

3XV-27441-11-00

—

$31.09

In stock

27

SPRING, COMPRESSION (22N)

90501-12743-00

—
Out of stock

28

BALL

93501-04011-00

—
Out of stock

29

WASHER, SPECIAL

1HX-27437-00-00

—
Out of stock

30

COLLAR (24R)

90387-064H8-00

—
Out of stock

31

BOLT, SOCKET

91314-06045-00

—

$6.17

In stock

32

NUT, SELF-LOCKING

95617-06100-00

—

$2.32

In stock

33

PLATE, FOOTREST

1HX-27415-00-00

—

$6.38

In stock

34

BRACKET 4

4JH-2741L-03-00

1
Out of stock

35

BRACKET 5

4JH-2742L-10-00

—
Out of stock

36

BOLT, FLANGE

95817-08035-00

—

$6.68

In stock
