1995 Yamaha YZF600R (YZF600RG) Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 1995 Yamaha YZF600R (YZF600RG), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

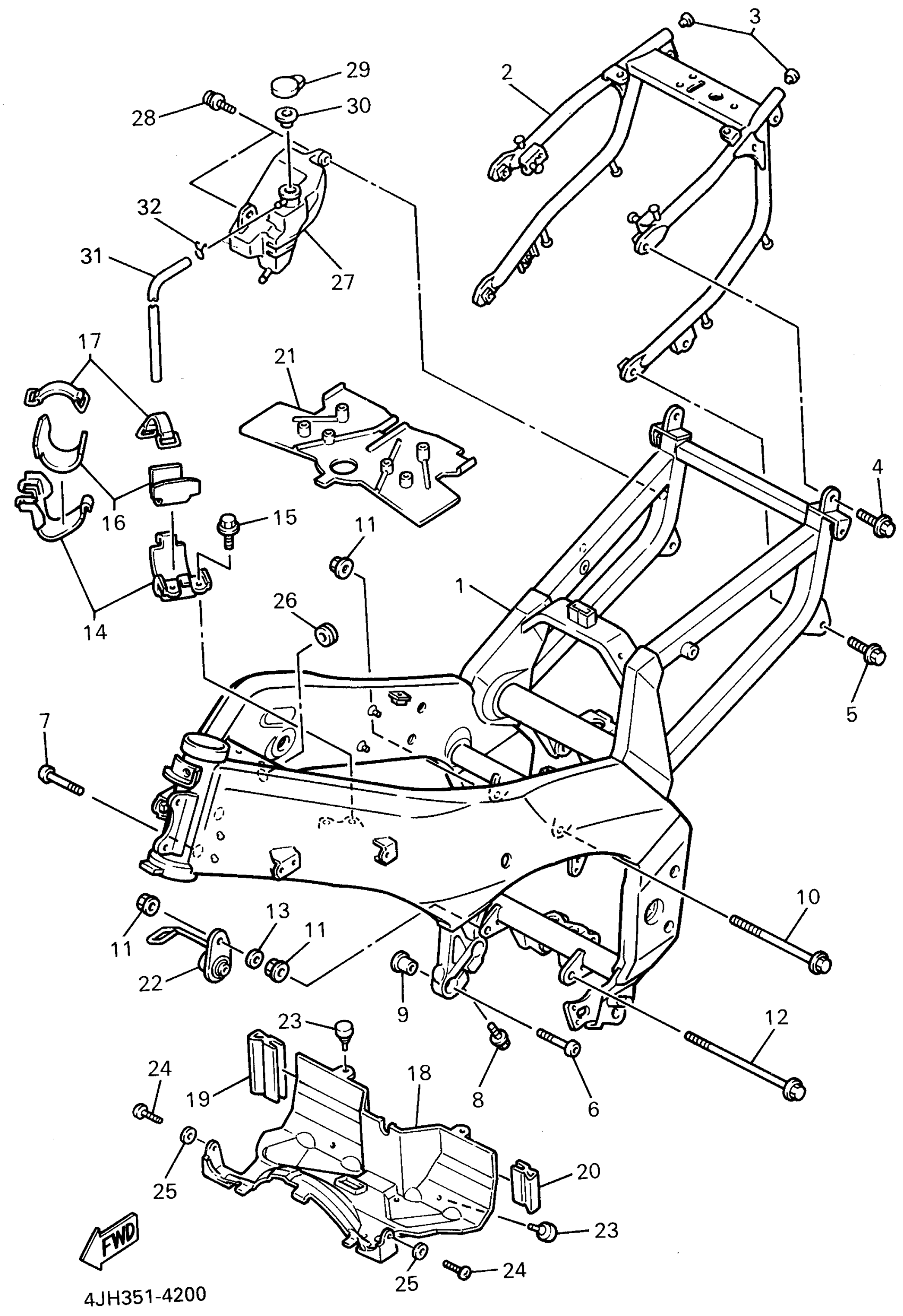

1995 Yamaha YZF600R (YZF600RG) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

4JH-21110-10-T9

1
Out of stock

2

STAY, REAR

4FM-21645-01-00

1
Out of stock

3

PLUG(55K)

90338-16148-00

1

$9.89

In stock

4

BOLT, FLANGE(JN5)

95817-08016-00

1

$4.12

In stock

5

BOLT, FLANGE

95817-08035-00

1

$6.68

In stock

6

BOLT, SOCKET

91317-10045-00

1

$5.62

In stock

7

BOLT

91311-10050-00

1
Out of stock

8

BOLT, FLANGE(3GD)

95817-10025-00

1

$6.17

In stock

9

COLLAR

90387-115V8-00

1
Out of stock

10

BOLT, WASHER BASED

90105-10130-00

1
Out of stock

11

NUT, FLANGE(3BM)

95704-10500-00

1

$1.71

In stock

12

BOLT,FLANGE

95827-10175-00

1
Out of stock

13

WASHER, PLATE (3L6)

90201-10774-00

1

$6.25

In stock

14

BRACKET, COIL

4JH-21359-00-00

1
Out of stock

15

BOLT, FLANGE

95817-06012-00

1

$1.49

In stock

16

DAMPER

4JH-21488-00-00

1
Out of stock

17

BAND, BATTERY

3TJ-82131-00-00

—

$19.40

In stock

18

COVER 2

4JH-2117M-00-00

1
Out of stock

19

SEAL SET, 1

4JH-21208-00-00

1
Out of stock

20

SEAL SET, 2

4JH-21209-00-00

1
Out of stock

21

COVER 3

4JH-2117N-01-00

1
Out of stock

22

STAY, MUFFLER 2

4JH-21446-00-00

1
Out of stock

23

DAMPER 2

36Y-21639-00-00

1
Out of stock

24

SCREW, PAN HEAD(3TJ)

98507-06016-00

—

$2.43

In stock

25

WASHER(6TA)

92907-06600-00

—

$0.78

In stock

26

GROMMET (509)

90480-18171-00

—

$6.55

In stock

27

TANK, RECOVERY

4FM-21871-02-00

1
Out of stock

28

SCREW, W/WASHER (4L0)

90159-06060-00

—

$6.17

In stock

29

CAP

1AA-21815-00-00

—

$11.09

In stock

30

GASKET

1AA-21874-00-00

—

$6.38

In stock

31

HOSE (L1500)

90445-084J0-00

—

$16.40

In stock

32

CLIP 101235600

90467-08003-00

—

$6.13

In stock
