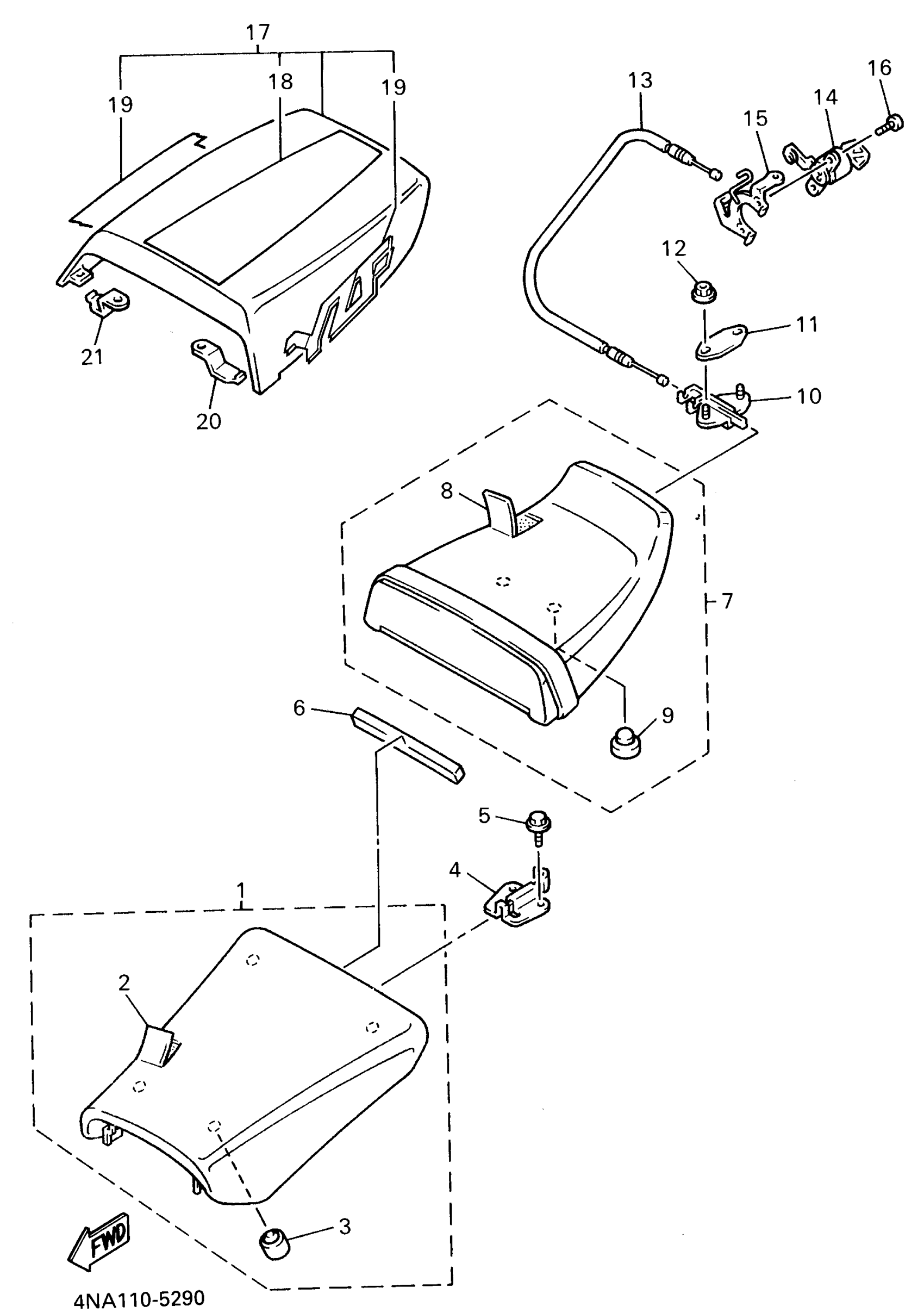

Yamaha YZF600RG (YZF600R) 1995 SEAT Diagram
#
Description
Price
1
SINGLE SEAT ASSEMBLY
4JH-24710-00-00
Unavailable
2
. COVER, SINGLE SEAT
4JH-24711-00-00
Unavailable
4
SEAT LOCK ASSEMBLY
4FM-24780-00-00
Unavailable
5
BOLT, FLANGE
91002-06016-00
Unavailable
6
DAMPER 1
88T-77198-00-00
Unavailable
7
TANDEM SEAT ASSEMBLY
4FM-24750-00-00
Unavailable
8
. COVER, TANDEM SEAT
4FM-24751-00-00
Unavailable
11
PLATE
4BP-24792-00-00
Unavailable
13
WIRE,SEAT HOOK
4FM-2478E-01-00
Unavailable
15
STAY, LOCK
4FM-2117K-00-00
Unavailable
16
SCREW(4HM)
90149-06308-00
Unavailable
17
COVER, SEAT
4FM-Y2479-30-P3
Unavailable
18
. GRAPHIC, SEAT
4FM-2478M-10-00
Unavailable
19
. EMBLEM
4FM-24786-10-00
Unavailable
20
BRACKET,SEAT LVR 2
4FM-2475J-01-00
Unavailable
21
BRACKET,SEAT LVR 1
4FM-2475H-01-00
Unavailable
