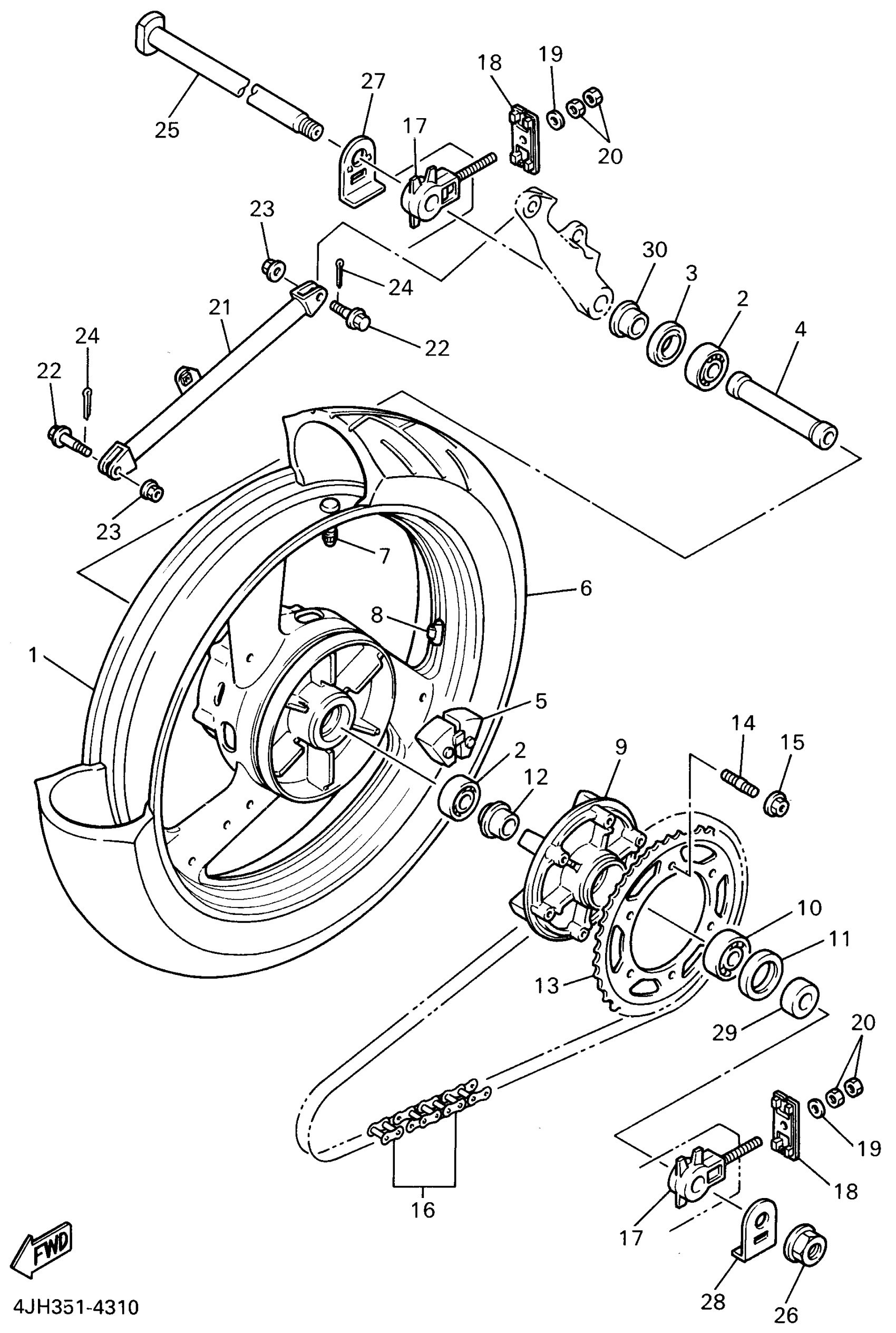

Yamaha YZF600RG (YZF600R) 1995 REAR WHEEL Diagram

#

Description
Price

1

CAST WHEEL, REAR

4JH-25338-00-P0

Unavailable

2

BEARING(8AE)

93306-20469-00

$41.99

3

OIL SEAL (28X47X7-102)

93102-28022-00

$14.99

4

COLLAR(4JH)

90387-2004F-00

Unavailable

5

DAMPER

4FM-25364-00-00

$37.99

6

160/60ZR17 BS BT50R

94116-1711V-00

Unavailable

7

VALVE, RIM(2GH)

93900-00030-00

$16.99

8

BALANCER, WHEEL

5MT-25398-00-00

$17.49

9

CLUTCH, HUB

4FM-25366-00-00

Unavailable

10

BEARING(4HD)

93306-20644-00

Unavailable

11

OIL SEAL

93106-40041-00

$17.99

12

COLLAR

90387-2004E-00

Unavailable

13

SPROCKET, DRIVEN (47T)

4JH-25447-00-00

Unavailable

14

BOLT, STUD(4HD)

90116-10575-00

$10.49

15

NUT, SELF-LOCKING

90185-10170-00

$9.49

16

CHAIN(4JH)

94581-59108-00

Unavailable

17

PULLER, CHAIN 1

3XW-25388-00-00

Unavailable

18

END 1

4JH-22174-00-00

Unavailable

19

.. WASHER, PLATE

92990-08600-00

Unavailable

20

NUT(6L2)

95333-08600-00

Unavailable

21

BAR, TENSION

4JH-25371-01-00

Unavailable

22

BOLT, WASHER BASED(47X)

90105-08321-00

Unavailable

23

NUT, FLANGE

95704-08500-00

Unavailable

24

PIN, COTTER

91490-20025-00

Unavailable

25

AXLE, WHEEL

3GM-25381-10-00

Unavailable

26

NUT, U FLANGE

95604-18200-00

Unavailable

27

WASHER, WHEEL

4JH-25384-03-00

Unavailable

28

WASHER, WHEEL

4JH-25384-12-00

Unavailable

29

COLLAR

90387-2004C-00

Unavailable

30

COLLAR(4JH)

90387-2004D-00

Unavailable
