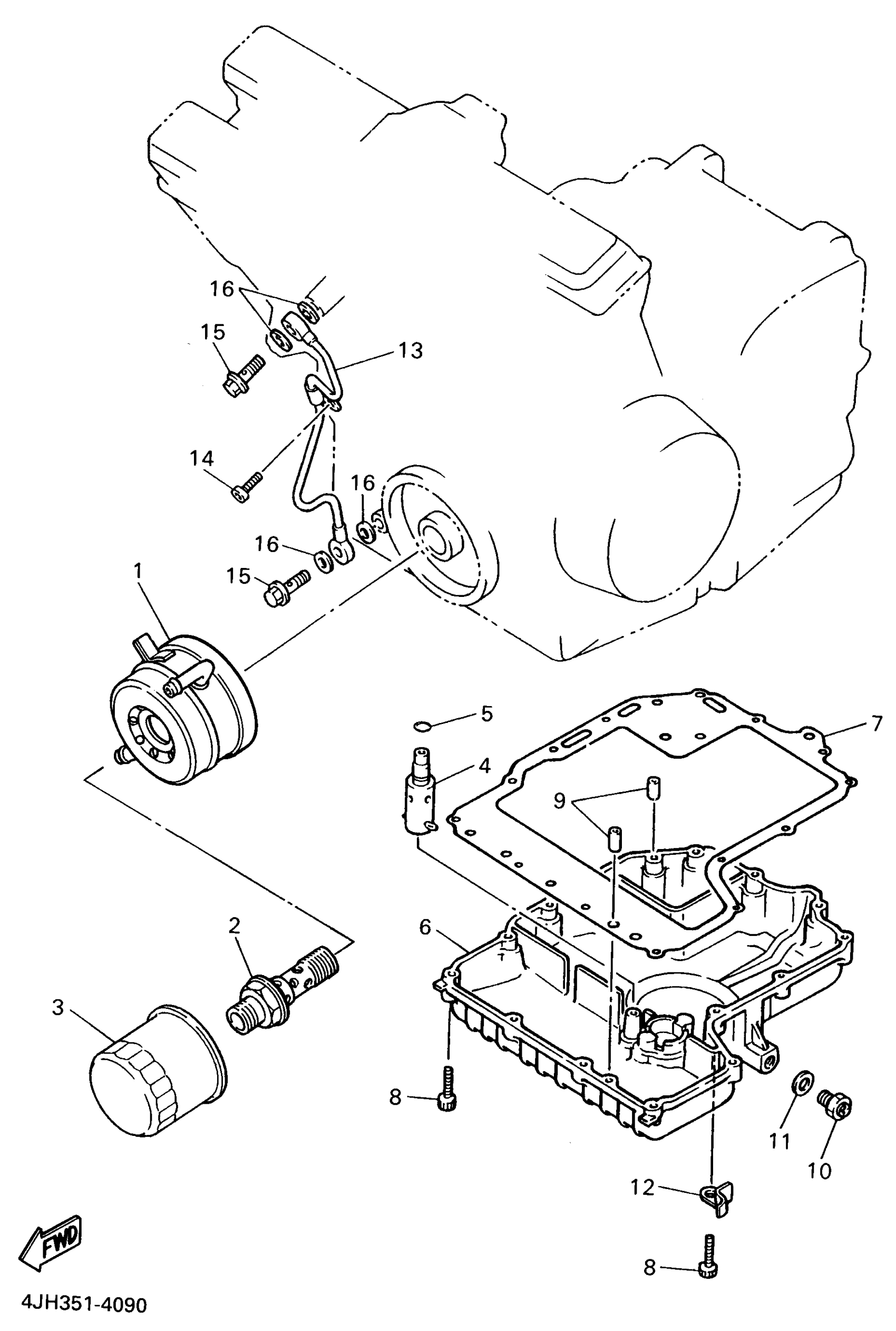

Yamaha YZF600RG (YZF600R) 1995 OIL COOLER Diagram

#

Description
Price

1

OIL COOLER ASY

4JH-13470-02-00

Unavailable

2

BOLT, UNION

90401-20158-00

Unavailable

3

ELEMENT ASSY, OIL CLEANER

3FV-13440-31-00

Unavailable

4

RELIEF VALVE ASSY

11H-13490-00-00

Unavailable

5

O-RING (611)

93210-10096-00

$2.90

6

COVER,STRAINER

4YR-13417-00-00

Unavailable

7

GASKET, STRAINER COVER

4TV-13414-00-00

Unavailable

8

BOLT,SOCKET

91317-06025-00

$1.91

9

PIN, DOWEL(3XW)

91808-16023-00

$5.26

10

PLUG, STRAIGHT SCREW(3FA)

90340-14132-00

$2.47

11

GASKET

214-11198-01-00

$1.93

12

CLAMP

90465-10306-00

$3.29

13

PIPE, DELIVERY 1

3HE-13161-00-00

Unavailable

14

BOLT,SOCKET

91317-06012-00

$5.75

15

BOLT, UNION(1HX)

90401-10106-00

$3.22

16

GASKET (5R6)

90430-10171-00

Unavailable
