FRONT FORK

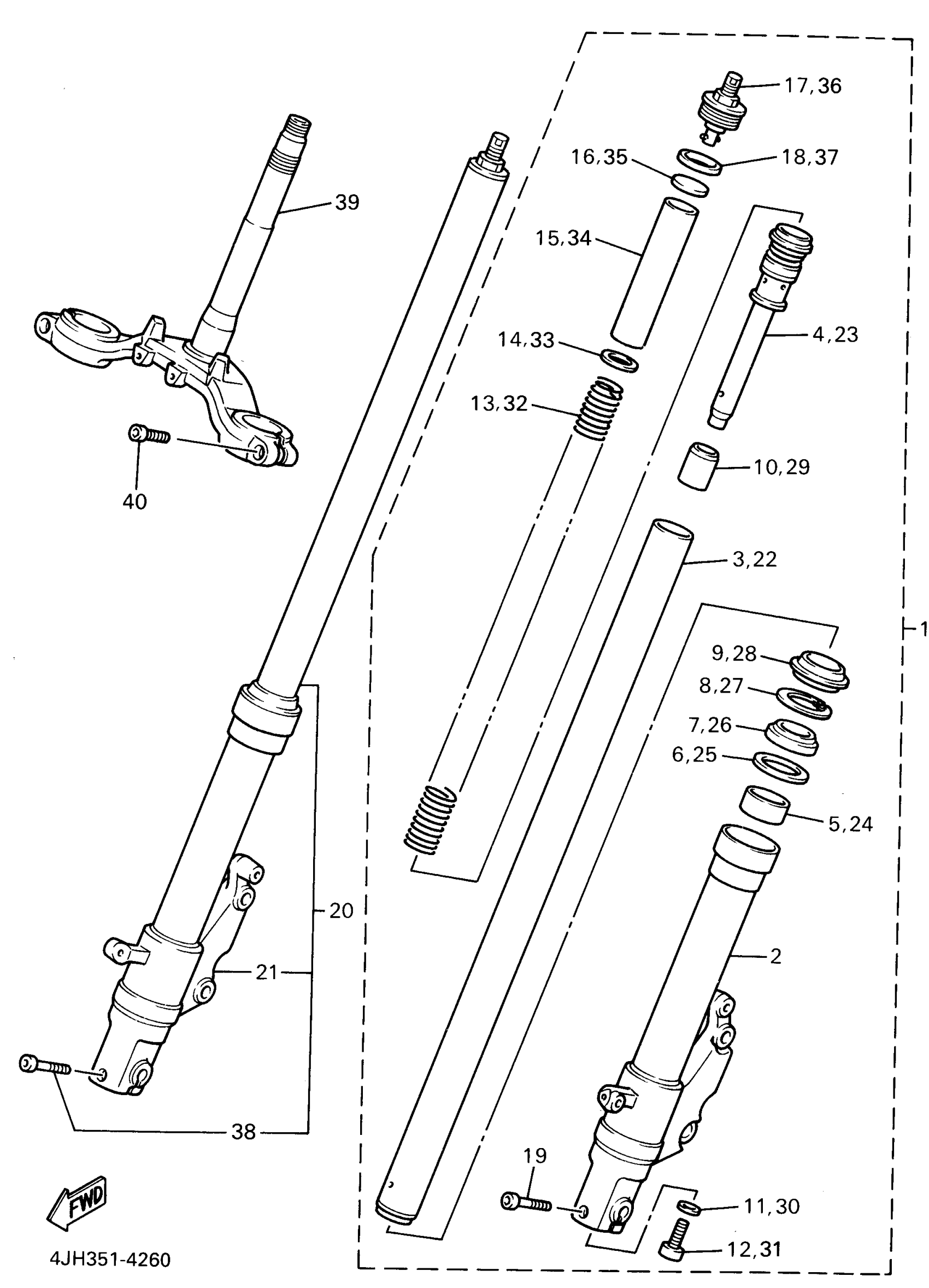

Yamaha YZF600RG (YZF600R) 1995 FRONT FORK Diagram
#
Description
Price
1
FRONT FORK ASSEMBLY (L.H)
4JH-23102-00-00
Unavailable
2
. TUBE, OUTER (LEFT)
4JH-23126-00-00
Unavailable
3
INNER TUBE 1
4JH-23110-01-00
Unavailable
4
. CYLINDER COMP, FRONT FORK
4JH-23170-00-00
Unavailable
5
METAL, SLIDE 1
3GM-23125-50-00
Unavailable
9
SEAL, DUST
3XV-23144-50-00
Unavailable
10
SPINDLE, TAPER
3GM-23173-00-00
Unavailable
13
. SPRING, FRONT FORK
4JH-23141-00-00
Unavailable
16
. WASHER, SPRING UPPER
4JH-23149-00-00
Unavailable
17
BOLT, CAP
4JH-23111-00-00
Unavailable
18
O-RING
43F-23188-10-00
Unavailable
19
BOLT, SOCKET
91317-10045-00
Unavailable
20
FRONT FORK ASSEMBLY (R.H)
4JH-23103-00-00
Unavailable
21
. TUBE, OUTER (RIGHT)
4JH-23136-00-00
Unavailable
22
INNER TUBE 1
4JH-23110-01-00
Unavailable
23
. CYLINDER COMP, FRONT FORK
4JH-23170-00-00
Unavailable
24
METAL, SLIDE 1
3GM-23125-50-00
Unavailable
28
SEAL, DUST
3XV-23144-50-00
Unavailable
29
SPINDLE, TAPER
3GM-23173-00-00
Unavailable
32
. SPRING, FRONT FORK
4JH-23141-00-00
Unavailable
35
. WASHER, SPRING UPPER
4JH-23149-00-00
Unavailable
36
BOLT, CAP
4JH-23111-00-00
Unavailable
37
O-RING
43F-23188-10-00
Unavailable
38
BOLT, SOCKET
91317-10045-00
Unavailable
39
UNDER BRACKET COMP.
4JH-23340-00-00
Unavailable
40
BOLT,SOCKET HEAD
91317-12030-00
Unavailable
