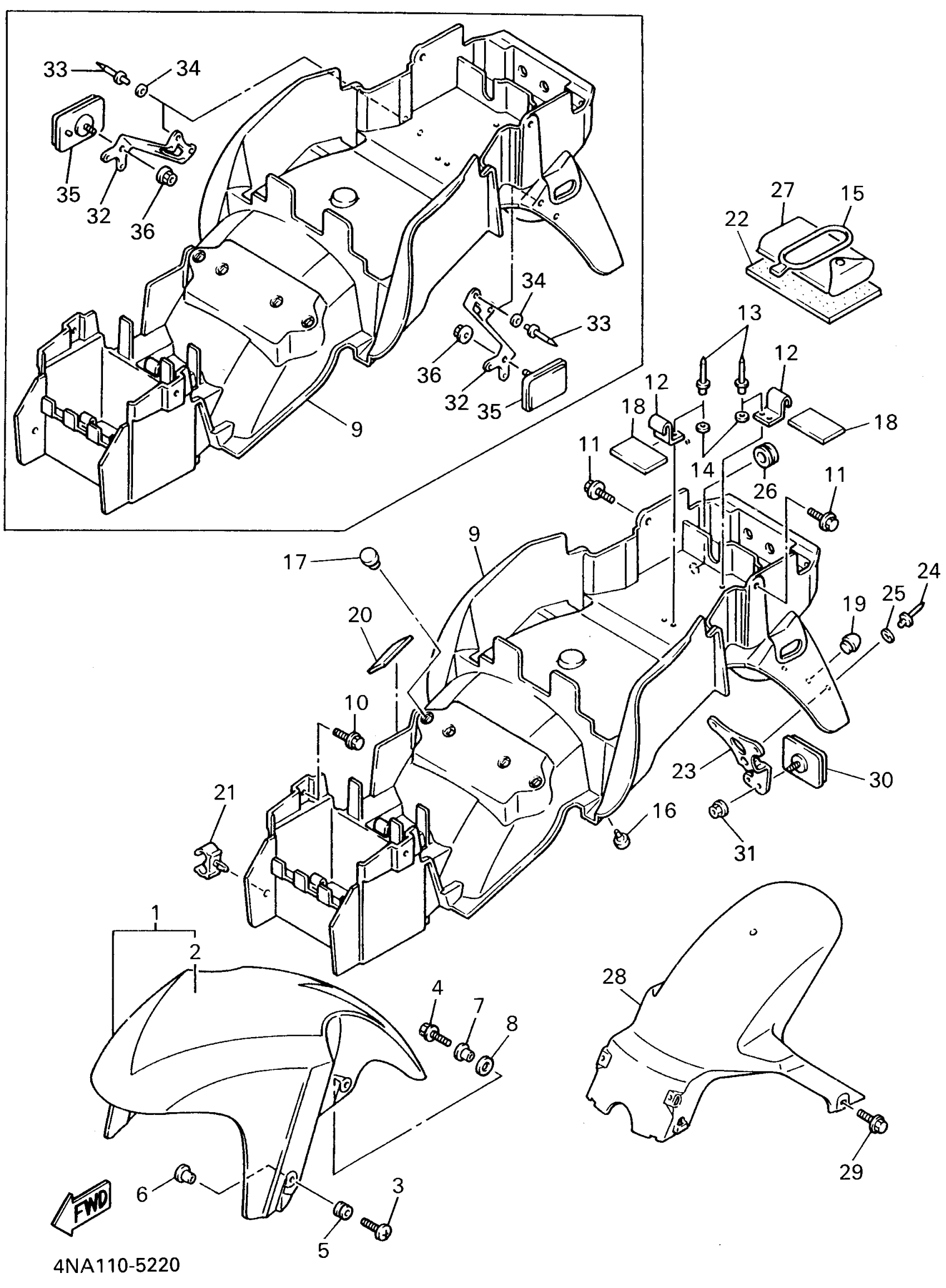

Yamaha YZF600RG (YZF600R) 1995 FENDER Diagram

#

Description
Price

1

FRT FNDR

4FM-Y2151-13-P1

Unavailable

2

. GRAPHIC 1

4FM-21569-30-00

Unavailable

3

SCREW, BINDING(3XV)

90154-06061-00

$8.49

4

BOLT, FLANGE

95817-06016-00

$2.75

5

GROMMET(53Y)

90480-12072-00

$8.49

6

COLLAR

90387-06159-00

$8.49

7

COLLAR(50M)

90387-087L0-00

$8.49

8

DAMPER

4FM-28372-00-00

$6.99

9

FENDER, REAR

99999-02811-00

Unavailable

10

BOLT, WITH WASHER(81H)

90119-06118-00

$8.49

11

BOLT, WITH WASHER (25K)

90119-06079-00

$7.49

12

HOOK, TOOL BAND

3VD-21366-00-00

Unavailable

13

RIVET, BLIND (8K1)

90267-40076-00

$8.49

14

WASHER, PLATE(26H)

90201-044H9-00

$8.49

15

BAND, TOOL

3YX-21376-00-00

Unavailable

16

DAMPER, SEAT

35T-24724-00-00

Unavailable

17

PLUG (17J)

90338-10132-00

Unavailable

18

DAMPER

5H0-8235Y-M0-00

Unavailable

19

PLUG

90338-07018-00

Unavailable

20

DAMPER, LOCATING 1

3XV-21778-00-00

Unavailable

21

CLAMP(3LD)

90464-09130-00

Unavailable

22

DAMPER 2

1VJ-14426-00-00

Unavailable

23

BRACKET, REFLECTOR 1

4FM-85132-00-00

Unavailable

24

RIVET, BLIND (8K1)

90267-40076-00

$8.49

25

WASHER, PLATE(26H)

90201-044H9-00

$8.49

26

GROMMET

90480-10258-00

Unavailable

27

TOOL KIT

1WG-W2810-00-00

Unavailable

28

REAR FENDER COMP.

4JH-21650-00-00

Unavailable

29

BOLT, WITH WASHER(55K)

90119-06117-00

Unavailable

30

REAR REFLECTOR ASSY

4KM-85130-00-00

Unavailable

31

NUT, FLANGE(3GM)

95707-05500-00

Unavailable

32

BRACKET, REAR STAY

4FM-21688-00-00

Unavailable

33

RIVET, BLIND (8K1)

90267-40076-00

$8.49

34

WASHER, PLATE(26H)

90201-044H9-00

$8.49

35

REAR REFLECTOR ASSY

4KM-85130-00-00

Unavailable

36

NUT, FLANGE(3GM)

95707-05500-00

Unavailable
