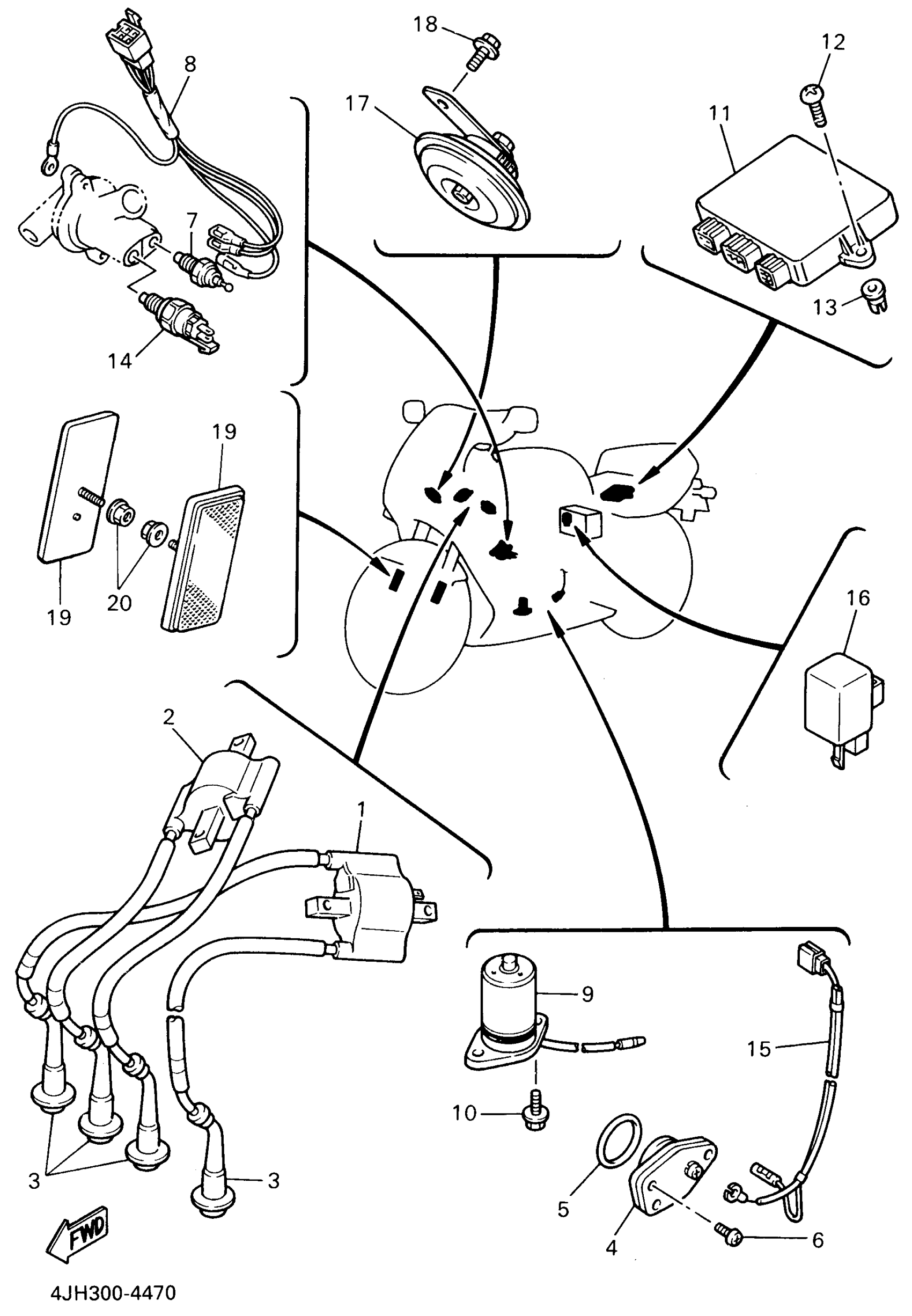

Yamaha YZF600RG (YZF600R) 1995 ELECTRICAL 1 Diagram

#

Description
Price

1

IGNITION COIL ASSY

4BR-82310-06-00

Unavailable

2

IGNITION COIL ASSY

4BR-82320-06-00

$69.99

3

PLUG CAP ASSEMBLY

1WG-82370-00-00

Unavailable

4

NEUTRAL SWITCH ASSY

1AE-82540-00-00

$30.99

5

O-RING (371)

93210-29196-00

$8.49

6

SCREW, PAN HEAD

98580-06016-00

Unavailable

7

THERMO UNIT

11H-83591-00-00

$105.99

8

WIRE, SUB LEAD

3TJ-82583-00-00

Unavailable

9

OIL LEVEL GAUGE ASSY

4H7-85720-02-00

Unavailable

10

BOLT, WASHER BASED(JA9)

90105-06696-00

$9.49

11

IGNITOR UNIT ASSEMBLY

4JH-82305-00-00

Unavailable

12

SCREW, TRUSS TAP.

97707-60016-00

$1.70

13

PLUG(4BP)

90338-08226-00

$2.17

14

THERMO SWITCH ASSY

3LN-82560-01-00

Unavailable

15

WIRE, LEAD

1WG-82541-00-00

Unavailable

16

FLASHER RELAY ASSY

3GM-83350-03-00

Unavailable

17

HORN

2KG-83371-00-00

Unavailable

18

BOLT, FLANGE

95817-06010-00

Unavailable

19

FRONT REFLECTOR ASSY

11H-85110-01-00

Unavailable

20

NUT, FLANGE(3GM)

95707-05500-00

Unavailable
