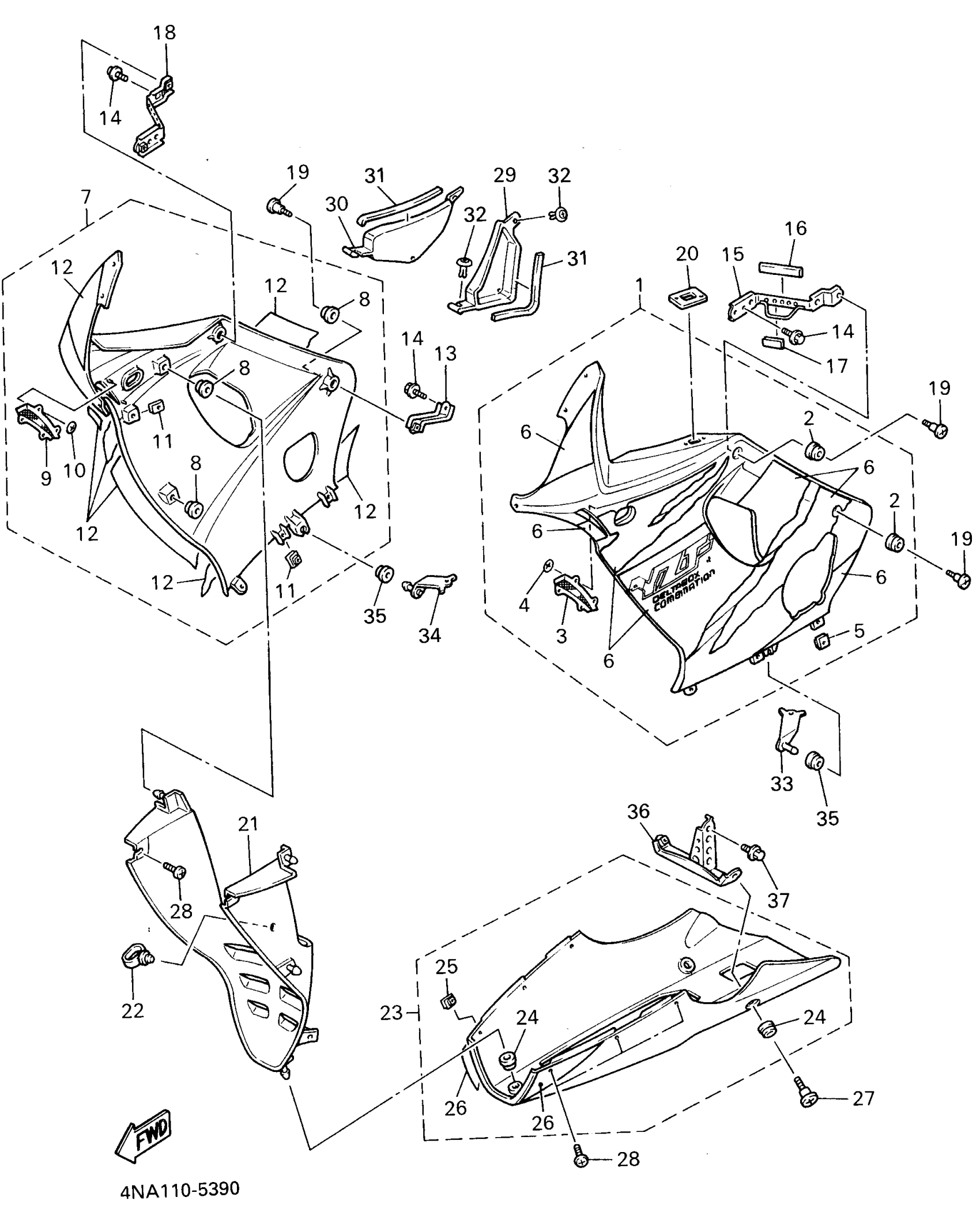

Yamaha YZF600RG (YZF600R) 1995 COWLING 2 Diagram

#

Description
Price

1

PANEL ASSEMBLY 1

4JH-Y283U-20-P0

Unavailable

2

GROMMET

90480-13014-00

$8.49

3

. PANEL 1

4JH-2172A-00-00

Unavailable

4

NUT, SPRING

90183-03010-00

$0.85

5

NUT, SPRING

90183-051A0-00

$3.81

6

. GRAPHIC SET, LOWER COVER 1

4NA-28301-00-00

Unavailable

7

PANEL ASSEMBLY 2

4JH-Y283V-20-P0

Unavailable

8

GROMMET

90480-13014-00

$8.49

9

. PANEL 2

4JH-2172F-00-00

Unavailable

10

NUT, SPRING

90183-03010-00

$0.85

11

NUT, SPRING

90183-051A0-00

$3.81

12

. GRAPHIC SET, LOWER COVER 2

4NA-28303-01-00

Unavailable

13

STAY, SIDE 1

4JH-2832U-00-00

Unavailable

14

BOLT, FLANGE

95817-06010-00

$4.73

15

BRACKET 5

4JH-2836H-00-00

Unavailable

16

MOLD, FUEL TANK

1HX-24188-01-00

Unavailable

17

MOLD, FUEL TANK

1HX-24188-01-00

Unavailable

18

BRACKET 6

4JH-2836J-00-00

Unavailable

19

SCREW, ROUND HEAD(4HD)

90150-06036-00

Unavailable

20

COVER

3FV-28365-00-00

Unavailable

21

PANEL, INNER 1

4JH-2836K-00-P1

Unavailable

22

GUIDE, WIRE

1A8-21518-00-00

Unavailable

23

COVER ASSEMBLY, UNDER

4JH-Y2808-30-P2

Unavailable

24

GROMMET

90480-13014-00

$8.49

25

NUT, SPRING

90183-051A0-00

$3.81

26

. GRAPHICSET, LOWER COVER 3

4NA-28304-00-00

Unavailable

27

SCREW, ROUND HEAD(4HD)

90150-06036-00

Unavailable

28

SCREW, BINDING(3XV)

90154-05059-00

Unavailable

29

PLATE 1

4JH-28396-00-00

Unavailable

30

PLATE 2

4JH-28397-00-00

Unavailable

31

SEAL

4DN-21669-00-00

Unavailable

32

RIVET(4JH)

90269-07076-00

Unavailable

33

BRACKET 3

4JH-2836F-00-00

Unavailable

34

BRACKET 4

4JH-2836G-00-00

Unavailable

35

GROMMET

90480-12320-00

Unavailable

36

STAY, SUPPORT 1

4JH-2831T-00-00

Unavailable

37

BOLT, FLANGE

95817-06010-00

$4.73
