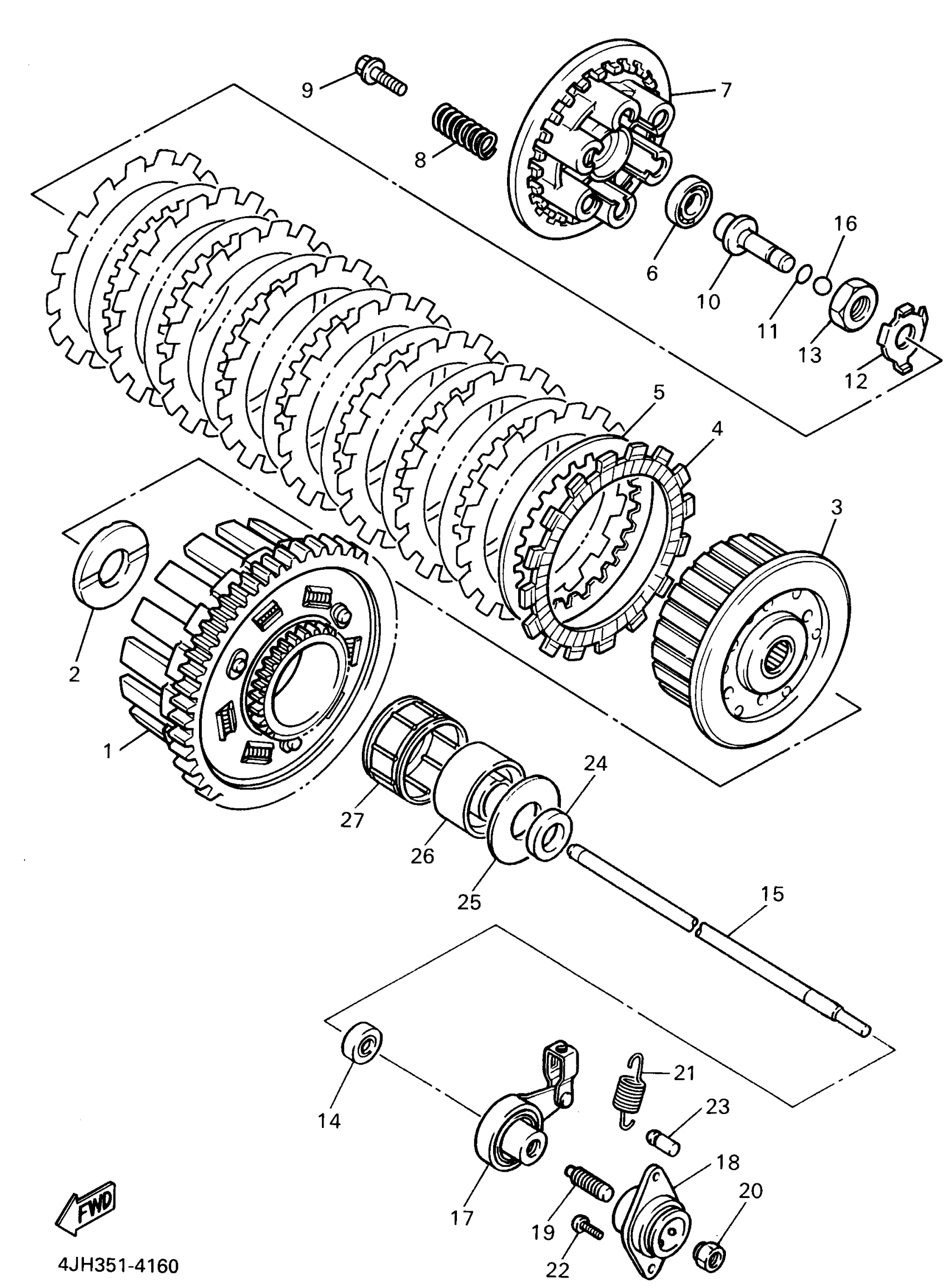

Yamaha YZF600RG (YZF600R) 1995 CLUTCH Diagram

#

Description
Price

1

PRIMARY DRIVEN GEAR COMP.

4JH-16150-00-00

Unavailable

2

PLATE, THRUST 1

1WG-16154-00-00

Unavailable

3

BOSS, CLUTCH

4JH-16371-01-00

Unavailable

4

PLATE, FRICTION

4JH-16321-00-00

Unavailable

5

PLATE, CLUTCH 1

1LX-16324-00-00

$23.99

6

BRG,R-B 6001 28MM 28G KY

93306-00105-00

$30.99

7

PLATE, PRESSURE 1

4JH-16351-00-00

Unavailable

8

SPRING, COMPRESSION(4JH)

90501-224J9-00

$11.49

9

SCREW, WITH WASHER(33M)

90159-06092-00

$9.49

10

ROD, PUSH 1

4JH-16356-00-00

Unavailable

11

O-RING (2H7)

93210-48364-00

$8.49

12

WASHER, LOCK (33M)

90215-18225-00

$14.99

13

NUT, HEXAGON (2H7)

90170-18221-00

$14.99

14

SEAL, PUSH ROD (8.0X21X5.5)

93109-08058-00

Unavailable

15

ROD, PUSH 2

4JH-16357-01-00

Unavailable

16

BALL

93505-16006-00

Unavailable

17

PUSH LEVER ASSY

4JH-16340-00-00

Unavailable

18

BALL SCREW HOUSING ASSY

1WG-16304-00-00

Unavailable

19

BOLT SET 256163430100

90113-08021-00

Unavailable

20

NUT

90179-08179-00

Unavailable

21

SPRING, TENSION(4JH)

90506-11488-00

Unavailable

22

SCREW, PAN HEAD(3LA)

98517-05010-00

Unavailable

23

HOOK, SPRING

132-16346-00-00

Unavailable

24

COLLAR(1WG)

90387-212R3-00

Unavailable

25

PLATE, THRUST 2

1WG-16164-00-00

Unavailable

26

SPACER 1

1WG-16181-00-00

Unavailable

27

BEARING, CYLINDRICAL(1WG)

93310-345R8-00

Unavailable
