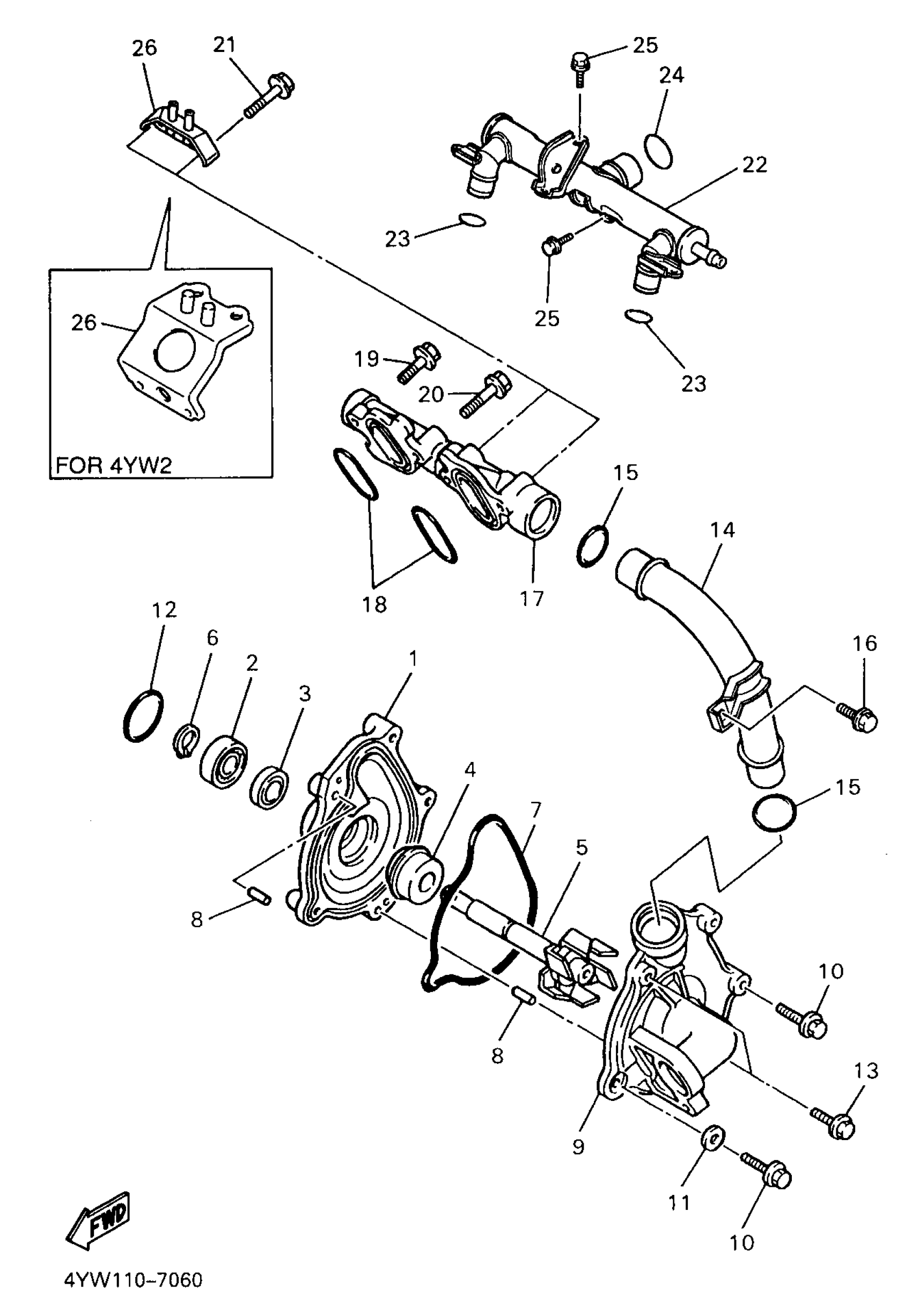

Yamaha YZF1000RJC (YZF1000R CA) 1997 WATER PUMP Diagram

#

Description
Price

1

HOUSING, WATER PUMP

1UF-12421-09-00

Unavailable

2

BRG,R-B 6001 28MM 28G KY

93306-00105-00

$30.99

3

OIL SEAL

93101-12173-00

$13.49

4

SEAL, MECHANICAL

11H-12438-10-00

$62.99

5

IMPELLER SHAFT ASSY

1UF-12450-00-00

Unavailable

6

CIRCLIP(10Y)

99009-12400-00

$3.59

7

O-RING

1AE-12439-00-00

$28.99

8

PIN,DOWEL (603)

93604-10011-00

$8.49

9

COVER, HOUSING

3GM-12422-00-00

Unavailable

10

BOLT, WASHER BASED(4KG)

90105-060A0-00

$8.49

11

GASKET 256113960000

90430-06014-00

Unavailable

12

O-RING (626)

93210-33133-00

$2.92

13

BOLT, WASHER BASED(4KG)

90105-06798-00

$7.49

14

PIPE 1

1AE-12481-01-00

Unavailable

15

O-RING(1LT)

93210-23787-00

$8.49

16

BOLT, FLANGE(4MY)

95027-06012-00

Unavailable

17

JOINT 1

3FV-12469-00-00

Unavailable

18

O-RING(1AA)

93210-30694-00

Unavailable

19

. BOLT, FLANGE

95027-06020-00

Unavailable

20

BOLT, SMALL FLANGE

95027-06030-00

Unavailable

21

BOLT, WASHER BASED(4EB)

90105-06792-00

Unavailable

22

PIPE 2

4SV-12482-00-00

Unavailable

23

O-RING (716)

93210-18417-00

Unavailable

24

O-RING(1LT)

93210-23787-00

$8.49

25

BOLT, FLANGE(4MY)

95027-06010-00

Unavailable

26

STAY

2GH-14413-00-00

Unavailable

26

STAY

3LK-14413-00-00

Unavailable
