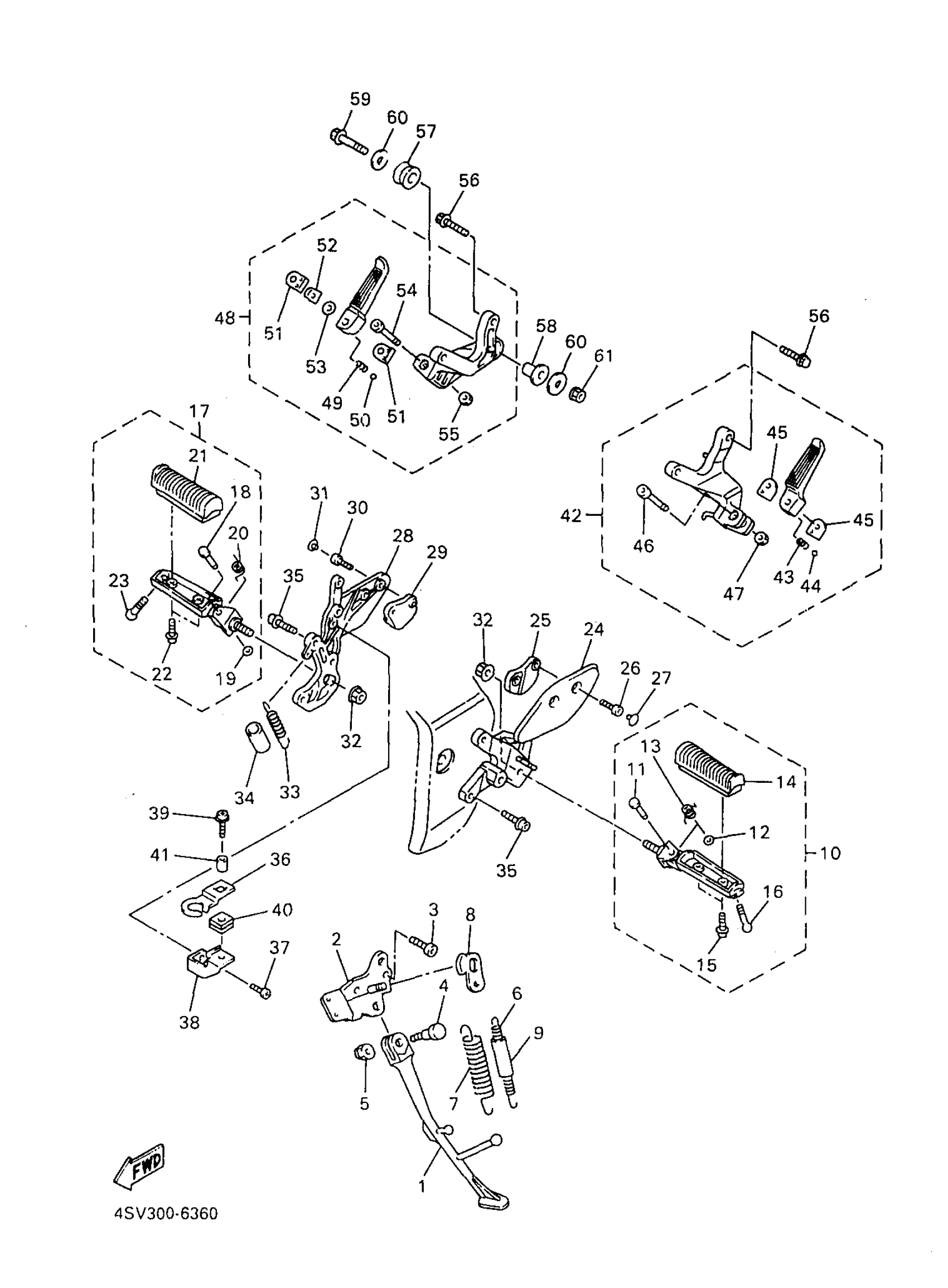

Yamaha YZF1000RJC (YZF1000R CA) 1997 STAND FOOTREST Diagram

#

Description
Price

1

STAND, SIDE

4FM-27311-00-00

Unavailable

2

BRACKET, SIDE STAND

4FM-27321-00-00

Unavailable

3

BOLT, SOCKET

91317-08030-00

$8.49

4

BOLT(2GH)

90109-104E6-00

$9.49

5

NUT, U

90185-10037-00

$9.49

6

SPRING, TENSION (4K0)

90506-18224-00

$5.60

7

SPRING, TENSION (4K0)

90506-26225-00

$11.49

8

LINK, SIDE STAND

4FM-27315-00-00

Unavailable

9

GUIDE, SIDE STAND

1TX-27351-00-00

Unavailable

10

FRONT FOOTREST ASSY (LEFT)

4SV-27410-10-00

Unavailable

11

PIN(2AL)

90243-08029-00

$8.49

12

WASHER, PLATE (214-27417-00)

90201-06042-00

$9.49

13

SPRING, TORSION (22N)

90508-20572-00

$8.49

14

COVER, FOOTREST

4BP-27413-00-00

$30.99

15

SCREW, PAN HEAD

98507-05014-00

$8.49

16

BOLT

90109-08177-00

Unavailable

17

FRONT FOOTREST ASSY (RIGHT)

4SV-27420-10-00

Unavailable

18

PIN(2AL)

90243-08029-00

$8.49

19

WASHER, PLATE (214-27417-00)

90201-06042-00

$9.49

20

SPRING, TORSION (22N)

90508-20572-00

$8.49

21

COVER, FOOTREST

4BP-27413-00-00

$30.99

22

SCREW, PAN HEAD

98507-05014-00

$8.49

23

BOLT

90109-08177-00

Unavailable

24

BRACKET 2

4FM-27442-02-00

Unavailable

25

WEIGHT

4SV-2622H-00-00

Unavailable

26

BOLT,SOCKET

91317-06016-00

Unavailable

27

PLUG(42H)

90338-06162-00

Unavailable

28

BRACKET 3

4FM-27443-02-00

Unavailable

29

WEIGHT ASSEMBLY

4SV-2622J-00-00

Unavailable

30

BOLT,SOCKET

91317-06016-00

Unavailable

31

PLUG(42H)

90338-06162-00

Unavailable

32

NUT(4KG)

90179-10658-00

Unavailable

33

SPRING, TENSION(46X)

90506-20377-00

Unavailable

34

HOSE(3GM)

90446-17346-00

Unavailable

35

BOLT, HEXAGON SOCKET HEAD(3GM)

90110-08199-00

Unavailable

36

STAY, STOP SWITCH

4SV-2144G-00-00

Unavailable

37

SCREW, PAN

98507-06010-00

Unavailable

38

BRACKET, STOP SWITCH

4SV-21441-00-00

Unavailable

39

SCREW, PANHEAD W/WASHER (22F)

90159-06082-00

Unavailable

40

GROMMET(4SV)

90480-12607-00

Unavailable

41

COLLAR 8121444900

90387-06023-00

Unavailable

42

REAR FOOTREST ASSEMBLY 1

4SV-27430-00-00

Unavailable

43

SPRING, COMPRESSION (22N)

90501-12743-00

Unavailable

44

BALL

93501-04011-00

Unavailable

45

WASHER, SPECIAL

4BP-27437-00-00

Unavailable

46

. BOLT, HEXAGON SOCKET HEAD

90110-08244-00

Unavailable

47

NUT, U (1X2)

95680-08100-00

Unavailable

48

REAR FOOTREST ASSEMBLY 2

4SV-27440-00-00

Unavailable

49

SPRING, COMPRESSION (22N)

90501-12743-00

Unavailable

50

BALL

93501-04011-00

Unavailable

51

. WASHER, SPECIAL

4SV-27437-00-00

Unavailable

52

. STOPPER

4SV-26247-00-00

Unavailable

53

WASHER(6TC)

92907-08200-00

Unavailable

54

. BOLT, HEXAGON SOCKET HEAD

90110-08244-00

Unavailable

55

NUT, U (1X2)

95680-08100-00

Unavailable

56

BOLT, FLANGE(6TA)

95817-08030-00

Unavailable

57

DAMPER, MUFFLER BRACKET

2H7-27414-00-00

Unavailable

58

COLLAR (2H7)

90387-10636-00

Unavailable

59

BOLT, FLANGE(4KG)

95024-10045-00

Unavailable

60

WASHER, PLATE (2H7)

90201-10669-00

Unavailable

61

NUT, SELF-LOCKING

90185-10170-00

Unavailable
