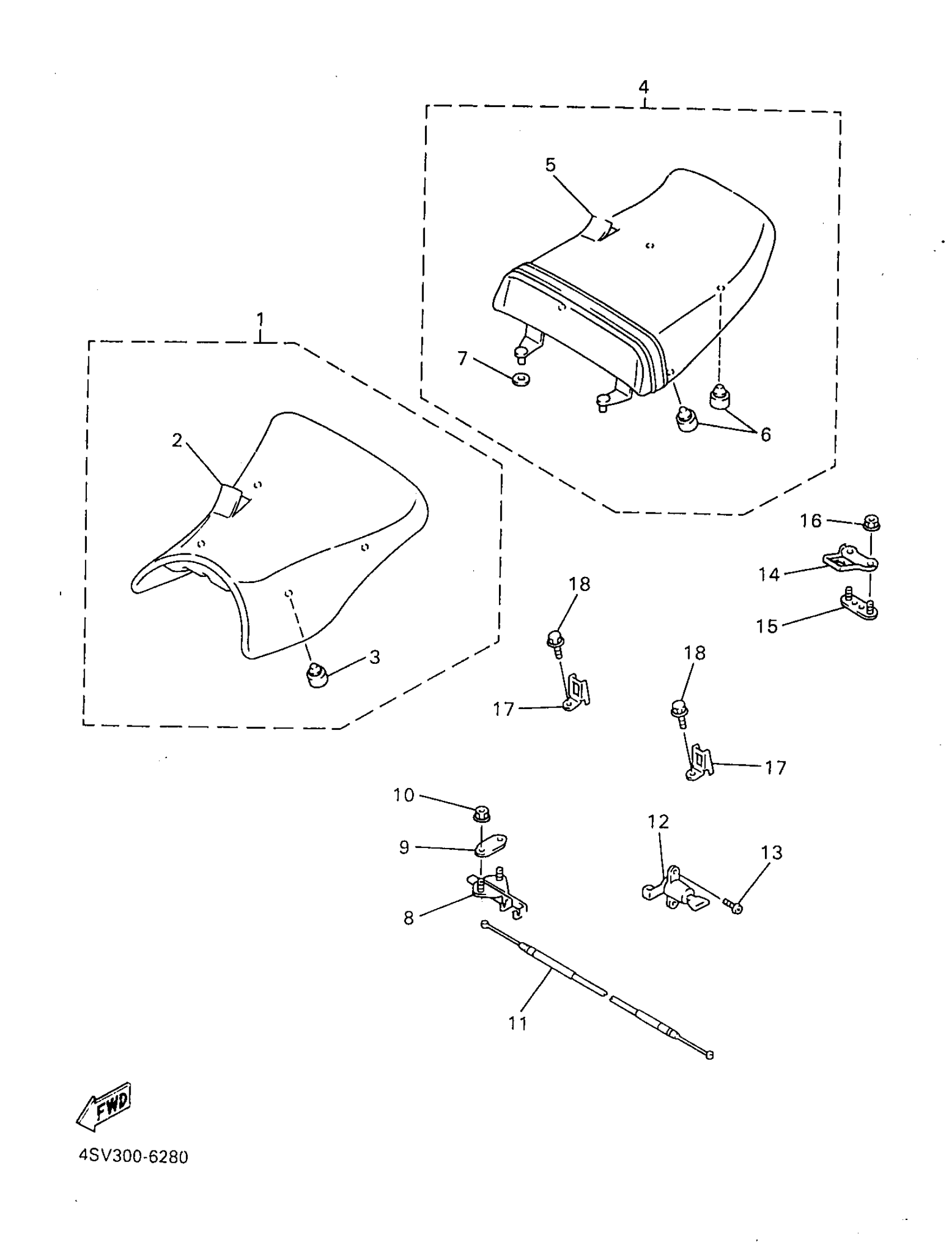

Yamaha YZF1000RJC (YZF1000R CA) 1997 SEAT Diagram
#
Description
Price
1
SINGLE SEAT ASSEMBLY
4SV-24710-00-00
Unavailable
2
. COVER, SINGLE SEAT
4SV-24711-00-00
Unavailable
4
TANDEM SEAT ASSEMBLY
4SV-24750-00-00
Unavailable
5
. COVER, TANDEM SEAT
4SV-24751-00-00
Unavailable
9
PLATE
4BP-24792-00-00
Unavailable
11
CABLE, SEAT LOCK
4BP-2478E-00-00
Unavailable
14
BRACKET, SEAT 2
4SV-21342-00-00
Unavailable
15
BRACKET, SEAT
4SV-24718-00-00
Unavailable
17
HOOK, SEAT
4SV-24755-00-00
Unavailable
18
BOLT, FLANGE
95817-06016-00
Unavailable
