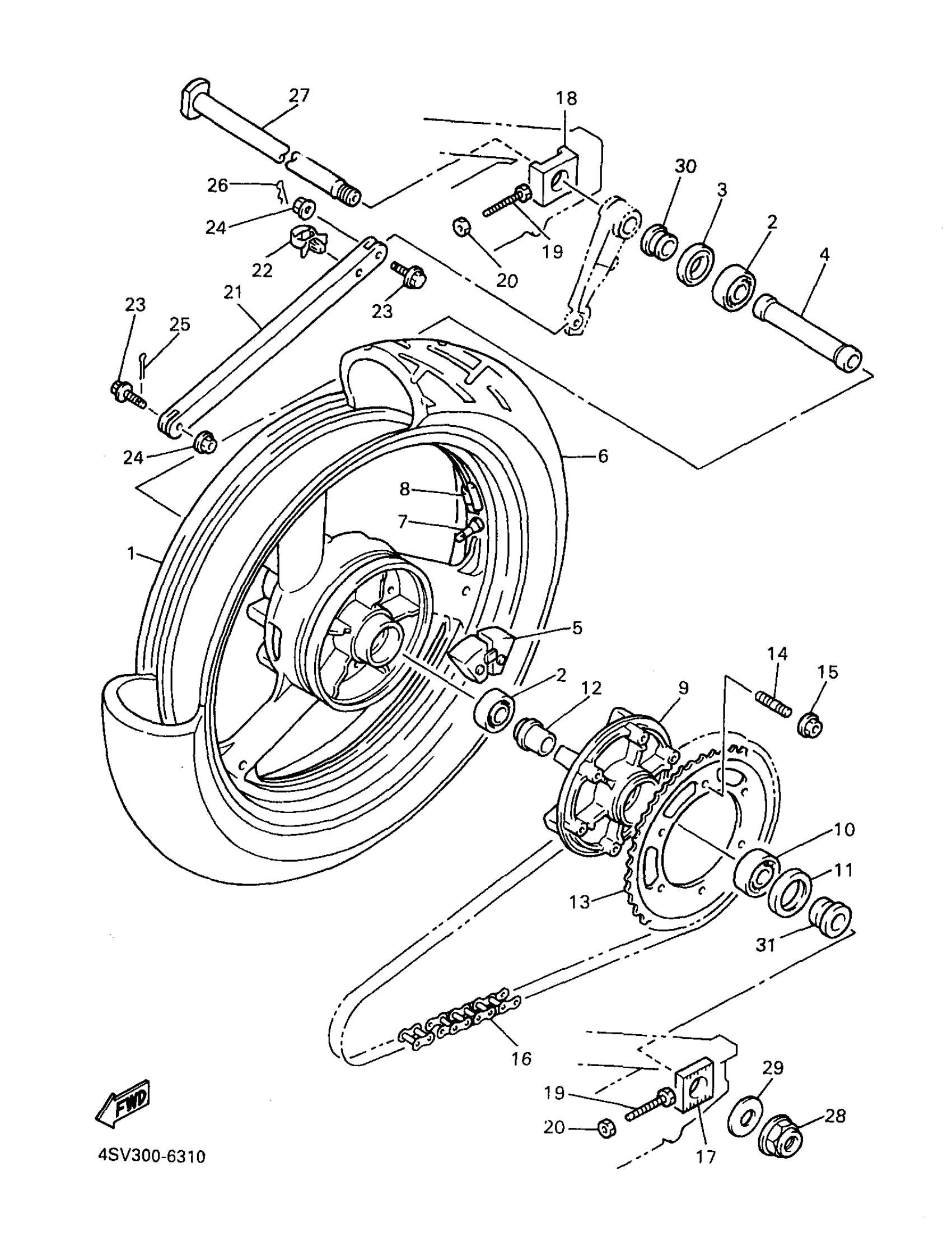

Yamaha YZF1000RJC (YZF1000R CA) 1997 REAR WHEEL Diagram
#
Description
Price
1
WHEEL,CAST REAR
4FM-25338-01-7B
Unavailable
6
TIRE (180/55 ZR17 B50RBZ)
94118-1708Y-00
Unavailable
6
TIRE (180/55 ZR17 D204)
94118-1709K-00
Unavailable
8
BALANCER, WHEEL
5MT-25398-20-00
Unavailable
8
CLUTCH, HUB
4FM-25366-00-00
Unavailable
10
BEARING(89A)
93306-20640-00
Unavailable
13
SPROCKET, DRIVEN (46T)
4SV-25446-00-00
Unavailable
14
BOLT, STUD(4HD)
90116-10575-00
Unavailable
15
NUT, SELF-LOCKING(JN5)
95607-10200-00
Unavailable
16
CHAIN (DID532ZLVKA1-110L)(3GM)
94581-57110-00
Unavailable
17
PULLER,CHAIN 1
4FM-25388-01-00
Unavailable
18
PULLER, CHAIN 2
4FM-25389-00-00
Unavailable
19
BOLT(3GM)
90101-08766-00
Unavailable
20
NUT(6TA)
95337-08600-00
Unavailable
21
BAR, TENSION
4FM-25371-10-00
Unavailable
22
CLAMP(4NX)
90464-23239-00
Unavailable
23
BOLT, WASHER BASED(47X)
90105-08321-00
Unavailable
24
NUT, FLANGE(JN5)
95707-08500-00
Unavailable
25
PIN, COTTER (648)
91490-20015-00
Unavailable
26
CLIP(4BP)
90468-16192-00
Unavailable
27
AXLE, WHEEL
4FM-25381-20-00
Unavailable
28
NUT, SELF-LOCKING
90185-24007-00
Unavailable
29
WASHER, PLATE
90201-25020-00
Unavailable
30
COLLAR(4HA)
90387-2805W-00
Unavailable
31
COLLAR
90387-2805X-00
Unavailable
