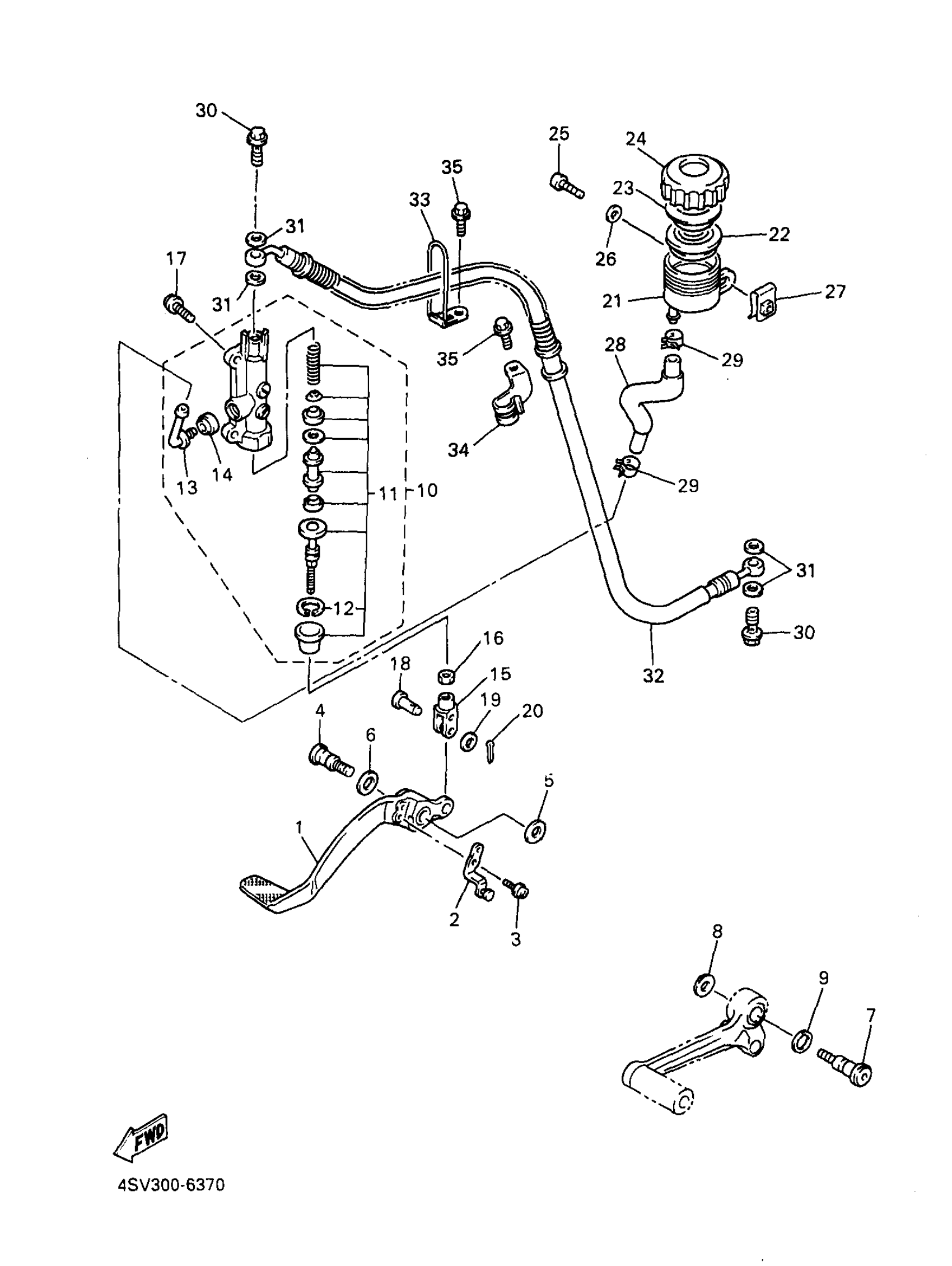

Yamaha YZF1000RJC (YZF1000R CA) 1997 REAR MASTER CYLINDER Diagram

#

Description
Price

1

PEDAL, BRAKE

4FM-27211-21-00

Unavailable

2

HOOK

4FM-27254-00-00

Unavailable

3

SCREW, PAN

98517-06012-00

$3.78

4

SHAFT

21C-27261-01-00

Unavailable

5

WASHER PLATE (3L6)

90201-08759-00

$3.23

6

WASHER, WAVE(6T4)

90206-14086-00

$8.49

7

BOLT

4BP-27434-11-00

$3.17

8

WASHER (853)

90201-08326-00

$8.49

9

WASHER, WAVE (17W)

90206-12074-00

$9.49

10

RR. MASTER CYLINDER ASSY.

4BH-2583V-00-00

Unavailable

11

CYLINDER KIT, MASTER

4BH-W0042-50-00

Unavailable

12

CIRCLIP, MASTER CYLINDER

3LN-2585G-00-00

$4.63

13

JOINT

4BP-2582A-00-00

$17.49

14

O-RING

4BP-2585F-01-00

Unavailable

15

JOINT

4FM-27222-00-00

$23.99

16

NUT, HEXAGON SMALL

95317-08700-00

Unavailable

17

BOLT, BUTTON

92014-08020-00

Unavailable

18

PIN, CLEVIS(2YK)

90240-08124-00

Unavailable

19

WASHER, PLATE 1562722600

90201-08083-00

Unavailable

20

PIN, COTTER (648)

91490-20015-00

Unavailable

21

TANK, RESERVOIR

31A-25894-01-00

Unavailable

22

DIAPHRAGM, RESERVER

360-25854-01-00

Unavailable

23

BUSH,DIAPHRAGM

2GU-25855-00-00

Unavailable

24

CAP, RESERVOIR

2KF-25852-50-00

Unavailable

25

SCREW, PAN

98517-06020-00

Unavailable

26

WASHER(6TA)

92907-06600-00

Unavailable

27

NUT, SPRING (26H)

90183-06023-00

Unavailable

28

HOSE, RESERVOIR

4FM-25895-00-00

Unavailable

29

CLIP (5K4)

90467-14057-00

Unavailable

30

BOLT, UNION(3GM)

90401-10159-00

Unavailable

31

WASHER, PLATE(481)

90201-10118-00

Unavailable

32

HOSE, BRAKE

4SV-25874-00-00

Unavailable

33

HOLDER, BRAKE HOSE

4BH-25886-02-00

Unavailable

34

HOLDER, BRAKE HOSE

4SV-25887-00-00

Unavailable

35

BOLT, FLANGE(4MY)

95027-06010-00

Unavailable
