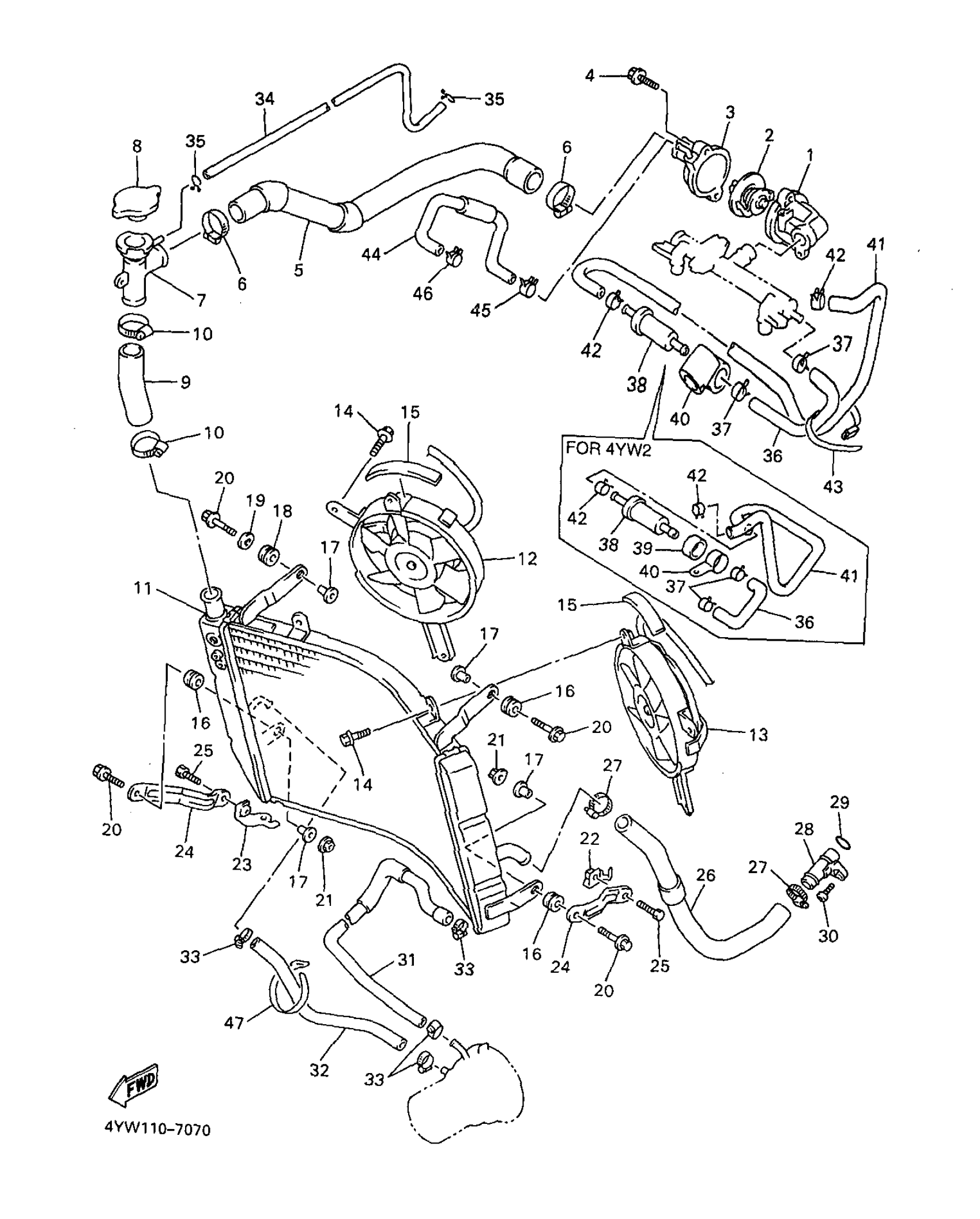

Yamaha YZF1000RJC (YZF1000R CA) 1997 RADIATOR HOSE Diagram

#

Description
Price

1

HOUSING, THERMOSTAT

3GM-12417-00-00

Unavailable

2

THERMOSTAT ASSY

4FM-12410-01-00

$41.99

3

THERMOSTAT COVER ASSY

3FV-1240G-00-00

Unavailable

4

BOLT, WASHER BASED(4KG)

90105-060A0-00

$8.49

5

HOSE 1

4SV-12576-00-00

Unavailable

6

HOSE CLAMP ASSY(3GM)

90450-38040-00

$17.99

7

SUPT, FILLER NECK

4SV-12591-00-00

Unavailable

8

CAP, RADIATOR

5SL-12462-01-00

$29.99

9

HOSE 2

4SV-12577-00-00

Unavailable

10

HOSE CLAMP ASSY(3GM)

90450-38040-00

$17.99

11

RADIATOR ASSEMBLY

4SV-12461-01-00

Unavailable

12

BLOWER ASSEMBLY

4SV-12405-01-00

Unavailable

13

BLOWER ASSEMBLY

4SV-12405-11-00

Unavailable

14

BOLT, FLANGE

95817-06010-00

$4.73

15

DAMPER 1

2TV-21638-00-00

Unavailable

16

GROMMET (29L)

90480-15363-00

Unavailable

17

COLLAR 437216330000

90387-07391-00

Unavailable

18

GROMMET(3XV)

90480-10542-00

Unavailable

19

WASHER, PLATE

90201-06020-00

Unavailable

20

BOLT, FLANGE

95817-06025-00

Unavailable

21

NUT, FLANGE(4MV)

95707-06500-00

Unavailable

22

BRACKET 1

4SV-1244E-01-00

Unavailable

23

BRACKET 1

4SV-1244F-00-00

Unavailable

24

STAY, RADIATOR

4SV-12464-00-00

Unavailable

25

BOLT, HEXAGON

97017-06012-00

Unavailable

26

HOSE 4

4SV-12579-00-00

Unavailable

27

HOSE CLAMP ASSY(3GM)

90450-38040-00

$17.99

28

PIPE 4

2GH-12484-00-00

Unavailable

29

O-RING(1LT)

93210-23787-00

Unavailable

30

BOLT, HEXAGON SOCKET HEAD(1WG)

90110-06142-00

Unavailable

31

HOSE 5

4SV-12588-00-00

Unavailable

32

HOSE 6

4SV-12589-00-00

Unavailable

33

HOSE CLAMP ASSY(64X)

90450-22M14-00

Unavailable

34

HOSE

90445-086J6-00

Unavailable

35

CLIP (16G)

90467-08021-00

Unavailable

36

HOSE 7

4SV-12551-00-00

Unavailable

36

HOSE 7

4YW-12551-00-00

Unavailable

37

CLIP (7K7)

90467-11044-00

Unavailable

38

THERMOSTAT ASSY

4SV-1240G-00-00

Unavailable

38

THERMOSTAT COVER ASSEMBLY

4TV-1240G-00-00

Unavailable

39

PROTECTOR

4YW-12498-00-00

Unavailable

40

ADAPTER

4TV-12572-00-00

Unavailable

40

CLAMP 1

4YW-12491-00-00

Unavailable

41

HOSE 8

4SV-12552-00-00

Unavailable

41

HOSE 8

4YW-12552-00-00

Unavailable

42

CLIP (7K7)

90467-11044-00

Unavailable

43

CLAMP(4FM)

90464-15195-00

Unavailable

44

HOSE 2

4SV-1243E-00-00

Unavailable

45

CLIP (3G0)

90467-10039-00

Unavailable

46

CLIP

90467-09120-00

Unavailable

47

BAND, SWITCH CORD

437-83936-01-00

Unavailable
