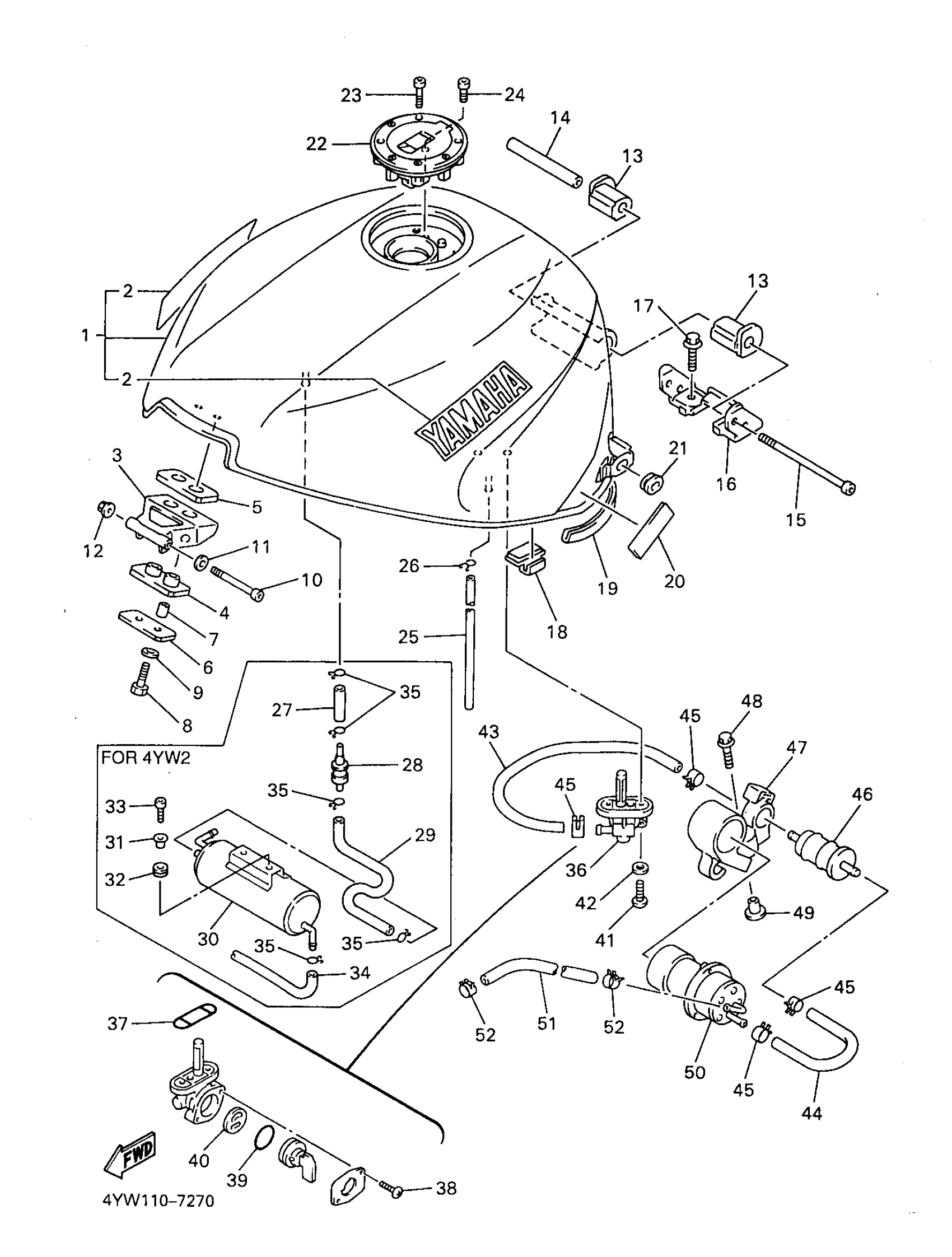

Yamaha YZF1000RJC (YZF1000R CA) 1997 FUEL TANK Diagram
#
1
FUEL TANK COMP. (BLACK 2)
4SV-24110-10-05
Unavailable
1
FUEL TANK COMP. (VIVID RED COCKTAIL 1)
4SV-24110-10-06
Unavailable
1
FUEL TANK COMP. (BLACK 2)
4SV-24110-30-05
Unavailable
1
FUEL TANK COMP. (VIVID RED COCKTAIL 1)
4SV-24110-30-06
Unavailable
2
. EMBLEM, YAMAHA (VIVID RED COCKTAIL 1)
4SV-2153A-20-00
Unavailable
2
. EMBLEM, YAMAHA (BLACK 2)
4TV-2153A-30-00
Unavailable
3
BRACKET, FUEL TANK 1
4SV-24191-00-00
Unavailable
4
DAMPER, LOCATING 1
2GH-24181-00-00
Unavailable
5
DAMPER, LOCATING 3
2GH-24183-00-00
Unavailable
6
WASHER, SPECIAL
2GH-24186-00-00
Unavailable
12
NUT,SELF-LOCKING
95607-06200-00
Unavailable
13
DAMPER, LOCATING 1
4YR-24181-00-00
Unavailable
14
COLLAR(3TJ)
90387-061W9-00
Unavailable
15
BOLT, SOCKET
91317-06110-00
Unavailable
16
BRACKET, TANK FITTING
4SV-21348-00-00
Unavailable
17
BOLT, WITH WASHER
90119-06179-00
Unavailable
18
DAMPER, LOCATING 3
4SV-24183-00-00
Unavailable
19
MOLD, FUEL TANK
1HX-24188-01-00
Unavailable
20
TAPE
3TU-28344-00-00
Unavailable
21
GROMMET(4DN)
90480-01558-00
Unavailable
22
CAP ASSY
4FM-24602-20-00
Unavailable
22
CAP ASSY
4HM-24602-01-00
Unavailable
23
BOLT, HEXAGON SOCKET HEAD(1FM)
90110-05112-00
Unavailable
24
BOLT, SOCKET
91317-05010-00
Unavailable
25
HOSE
90445-11M78-00
Unavailable
26
CLIP
90467-090A2-00
Unavailable
27
HOSE (L120)
90445-113E8-00
Unavailable
28
ROLL OVER VALVE ASSY
25H-24180-00-00
Unavailable
29
PIPE 3
4SV-24313-00-00
Unavailable
30
CANISTER ASSY
3LK-24170-00-00
Unavailable
31
COLLAR(42G)
90387-062L2-00
Unavailable
32
GROMMET (1E5)
90480-13163-00
Unavailable
33
BOLT,SOCKET
91317-06016-00
Unavailable
34
HOSE (L370)
90445-112E1-00
Unavailable
35
CLIP
90467-100A1-00
Unavailable
36
FUEL COCK ASSY 1
4KM-24500-20-00
Unavailable
37
O-RING
4X8-24512-00-00
Unavailable
38
SCREW, PAN HEAD(3AC)
98517-03008-00
Unavailable
39
SEAL, COCK
3AJ-24534-01-00
Unavailable
40
VALVE PACKING
3AC-24523-00-00
Unavailable
41
SCREW 366241430000
90149-06008-00
Unavailable
42
WASHER, PLATE(3MB)
90202-05187-00
Unavailable
43
PIPE, FUEL 1
4SV-24311-00-00
Unavailable
44
PIPE 2
4SV-24312-00-00
Unavailable
45
CLIP (7K7)
90467-11044-00
Unavailable
46
FILTER ASSY
1FK-24560-10-00
Unavailable
47
BAND 1
4SV-24398-00-00
Unavailable
48
BOLT, WITH WASHER(2WG)
90119-06172-00
Unavailable
49
COLLAR 437216330000
90387-07391-00
Unavailable
50
FUEL PUMP COMP.
4SV-13907-03-00
Unavailable
51
HOSE
90445-146F9-00
Unavailable
52
CLIP(3YX)
90467-13133-00
Unavailable
