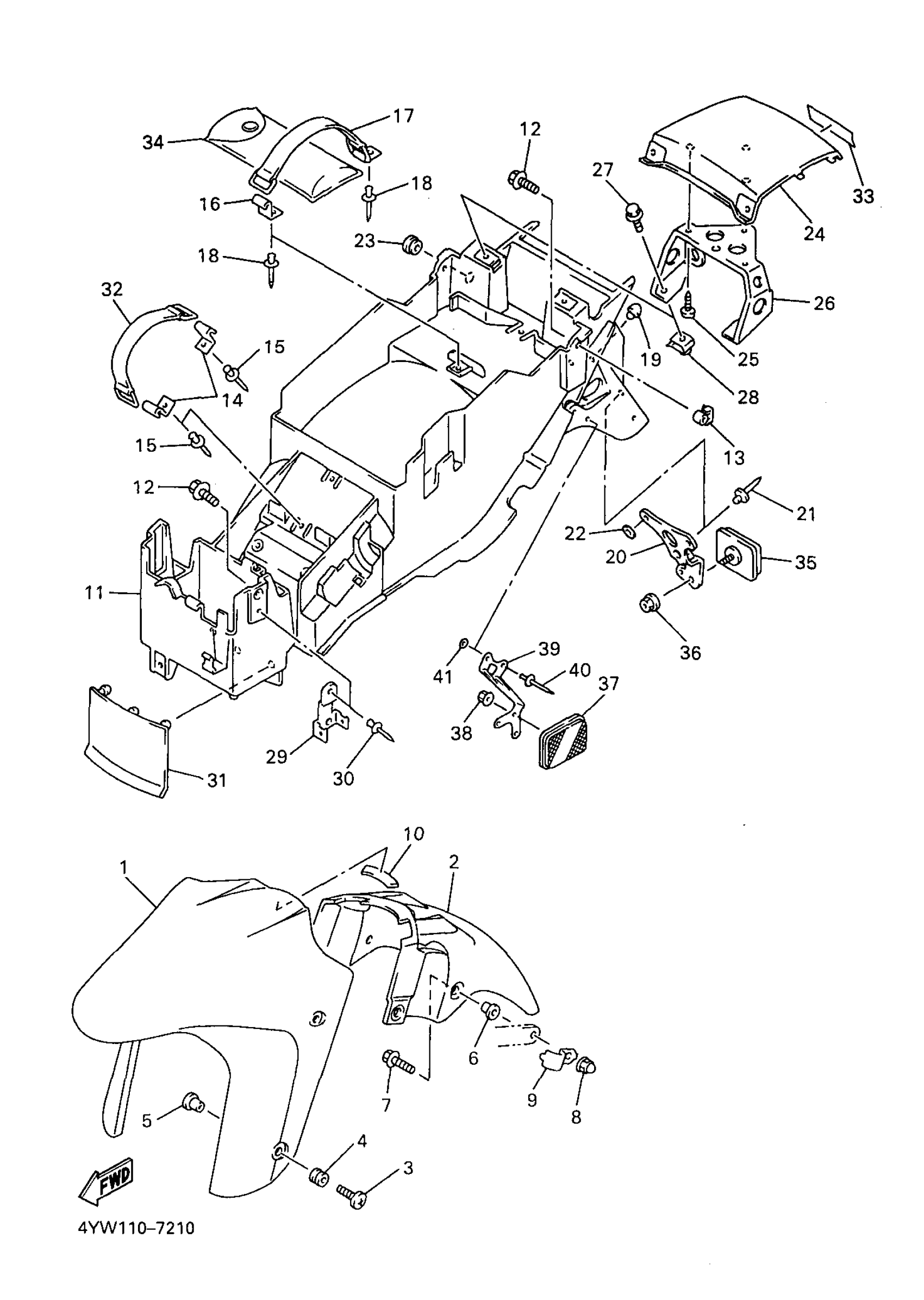

Yamaha YZF1000RJC (YZF1000R CA) 1997 FENDER Diagram

#

Description
Price

1

FENDER, FRONT

4SV-21511-00-PA

Unavailable

1

FENDER, FRONT (STAR SILVER) (BLACK 2)

4SV-21511-00-6M

Unavailable

2

FENDER, FRONT 2

4SV-21556-00-00

Unavailable

3

SCREW, BINDING(3XV)

90154-06061-00

$8.49

4

GROMMET(53Y)

90480-12072-00

$8.49

5

COLLAR

90387-06159-00

$8.49

6

COLLAR (3L1)

90387-07717-00

$8.49

7

BOLT, WITH WASHER(2WG)

90119-06172-00

$10.49

8

NUT, CROWN(2GM)

90176-06065-00

$9.49

9

HOLDER, BRAKE HOSE 2

4SV-25876-00-00

Unavailable

10

DAMPER, PLATE 2

1LJ-2414J-00-00

$7.99

11

FENDER, REAR

4SV-21611-00-00

Unavailable

12

BOLT, WITH WASHER(81H)

90119-06118-00

$8.49

13

NUT, REAR FENDER

4SV-21635-00-00

Unavailable

14

HOOK

36F-28379-00-00

$3.85

15

RIVET, BLIND (8K1)

90267-40076-00

Unavailable

16

HOOK

36F-28379-00-00

$3.85

17

BAND

4HM-21647-00-00

Unavailable

18

RIVET, BLIND (8K1)

90267-40076-00

Unavailable

19

DAMPER 2

5A8-21639-00-00

Unavailable

20

BRACKET, REFLECTOR 1

4FM-85132-00-00

Unavailable

21

RIVET, BLIND

90267-40029-00

Unavailable

22

WASHER, PLATE(26H)

90201-044H9-00

Unavailable

23

GROMMET

90480-13014-00

Unavailable

24

COVER, REAR FENDER (STAR SILVER) (BLACK 2)

4SV-21651-00-6M

Unavailable

24

COVER, REAR FENDER (VIVID RED COCKTAIL 1) (BLUISH WHITE COCKTAIL 1)

4SV-21651-00-P0

Unavailable

25

SCREW, TRUSS TAP.

97707-50012-00

Unavailable

26

BRACKET, TAILLIGHT

4SV-2117E-00-00

Unavailable

27

BOLT, FLANGE

95817-06016-00

Unavailable

28

NUT, SPRING (26H)

90183-06023-00

Unavailable

29

STAY 1

4SV-2164F-00-00

Unavailable

30

RIVET, BLIND (8K1)

90267-40076-00

Unavailable

31

FLAP

30X-21621-00-00

Unavailable

32

BAND, BATTERY

2T4-82131-00-00

Unavailable

33

EMBLEM, YAMAHA

99244-00080-00

Unavailable

34

TOOL KIT

4SV-28100-00-00

Unavailable

35

REAR REFLECTOR ASSY

4KM-85130-00-00

Unavailable

36

NUT, FLANGE(3GM)

95707-05500-00

Unavailable

37

REAR REFLECTOR ASSY

4KM-85130-00-00

Unavailable

38

NUT, FLANGE(3GM)

95707-05500-00

Unavailable

39

BRACKET, REAR STAY

4FM-21688-00-00

Unavailable

40

RIVET, BLIND

90267-40029-00

Unavailable

41

WASHER, PLATE(26H)

90201-044H9-00

Unavailable
