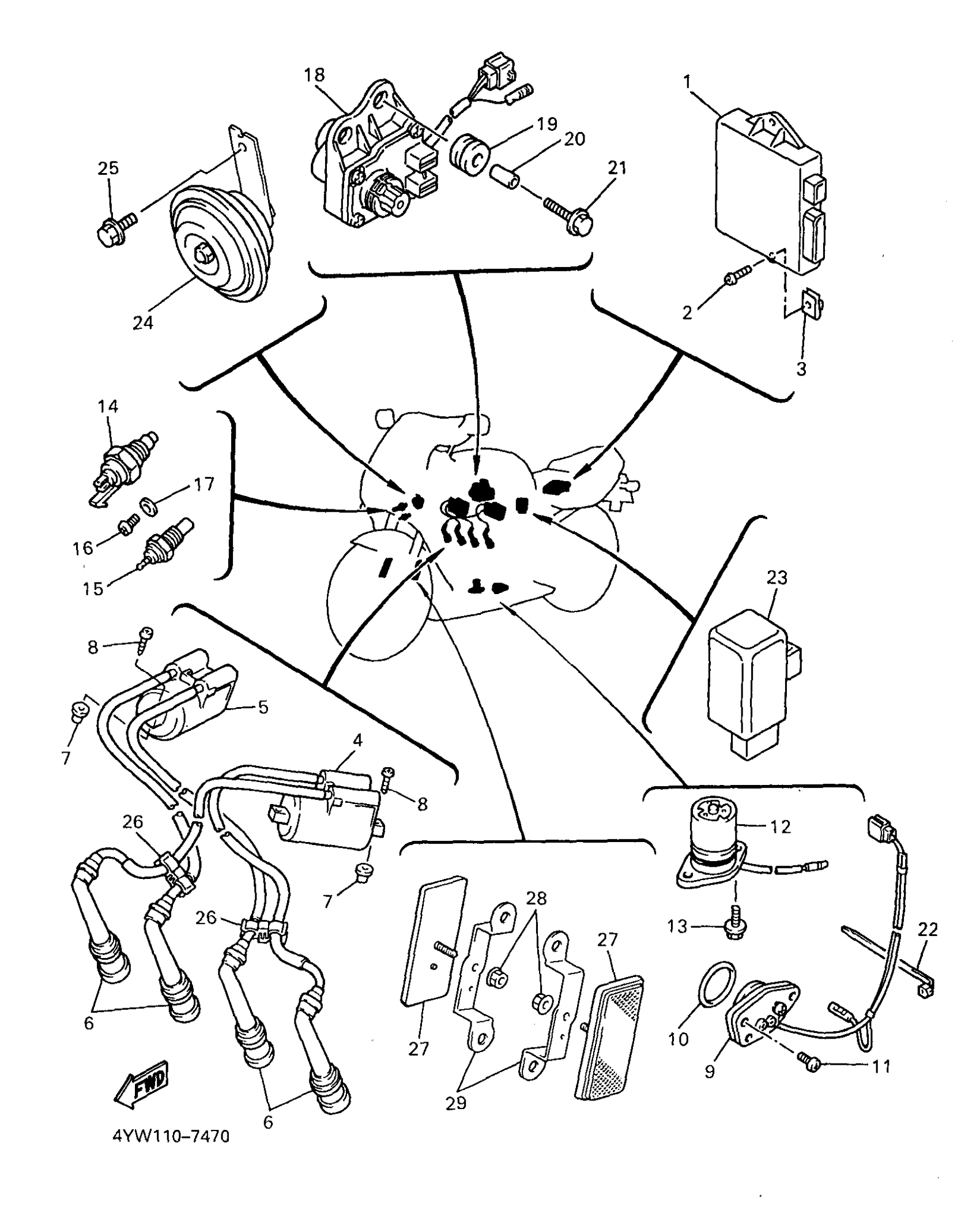

Yamaha YZF1000RJC (YZF1000R CA) 1997 ELECTRICAL 1 Diagram

#

Description
Price

1

IGNITOR UNIT ASSEMBLY

4YW-82305-00-00

Unavailable

2

BOLT, BUTTON

92017-06020-00

$3.76

3

NUT, SPRING (26H)

90183-06023-00

$9.49

4

IGNITION COIL ASSY

4KM-82310-02-00

Unavailable

5

IGNITION COIL ASY

4BH-82320-01-00

Unavailable

6

PLUG CAP ASSEMBLY

4SV-82370-10-00

Unavailable

7

PLUG(4BP)

90338-08226-00

$2.17

8

SCREW, TAPPING

97707-60525-00

$8.49

9

NEUTRAL SWITCH ASSEMBLY

4FM-82540-01-00

Unavailable

10

O-RING (371)

93210-29196-00

$8.49

11

SCREW, PAN HEAD(3TJ)

98507-06016-00

$3.48

12

OIL LEVEL GAUGE ASSEMBLY

3GM-85720-00-00

Unavailable

13

BOLT, WASHER BASED(JA9)

90105-06696-00

$9.49

14

THERMO SWITCH ASSY

3LN-82560-01-00

Unavailable

15

THERMO UNIT

11H-83591-00-00

$105.99

16

SCREW, PAN

98507-06010-00

Unavailable

17

WASHER(6TA)

92907-06600-00

Unavailable

18

SERVOMOTOR ASY

4FM-85820-01-00

Unavailable

19

GROMMET

90480-14412-00

Unavailable

20

COLLAR(3GM)

90387-0609L-00

Unavailable

21

BOLT, FLANGE

95817-06030-00

Unavailable

22

CLAMP(4FM)

90464-15195-00

Unavailable

23

FLASHER RELAY ASSY

3GM-83350-03-00

Unavailable

24

HORN

2KG-83371-00-00

Unavailable

25

BOLT, FLANGE

95817-06010-00

Unavailable

26

CLAMP

90464-10186-00

Unavailable

27

FRONT REFLECTOR ASSY

11H-85110-01-00

Unavailable

28

NUT, FLANGE(3GM)

95707-05500-00

Unavailable

29

BRACKET, REFLECTOR 1

4SV-85112-00-00

Unavailable
