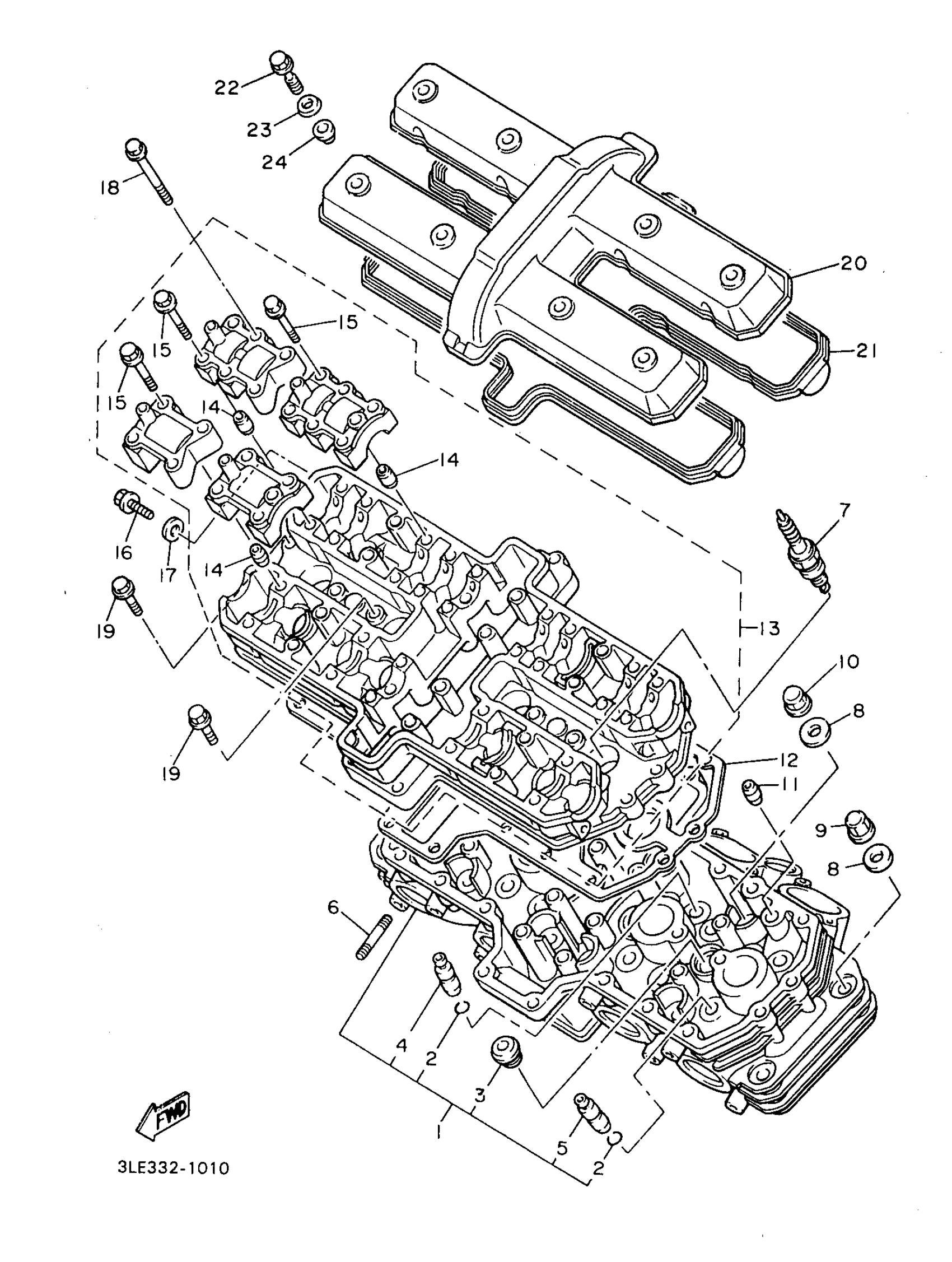

Yamaha YZF1000RJC (YZF1000R CA) 1997 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSEMBLY

4SV-11102-00-00

Unavailable

2

CIRCLIP(1WG)

93440-10153-00

$2.39

3

PLUG, STRAIGHT SCREW (33M)

90340-18101-00

$11.49

4

. GUIDE, INTAKE VALVE

3GM-11133-10-00

Unavailable

5

. GUIDE, EXHAUST VALVE

3GM-11134-10-00

Unavailable

6

BOLT, STUD 3

95617-08625-00

$8.49

7

PLUG, SPARK (ND X24ESR-U)

94701-00222-00

Unavailable

7

DR8EA NGK SPLUG 10PK

DR8-EA000-00-00

Unavailable

8

WASHER, PLATE(3GM)

90201-103M4-00

$1.81

9

NUT, CROWN(2GG)

90176-10075-00

$8.49

10

NUT(3GM)

90179-10584-00

$18.99

11

PIN, DOWEL(3VD)

99530-10114-00

$2.55

12

GASKET, CYLINDER HEAD 2

3FV-11182-00-00

Unavailable

13

CAM CASE ASSY

3GM-1115A-01-00

Unavailable

14

PIN, DOWEL(3XW)

91808-16023-00

$8.49

15

BOLT, WASHER BASED (4H7)

90105-06153-00

Unavailable

16

BOLT, FLANGE(4MY)

95027-06012-00

Unavailable

17

GASKET 256113960000

90430-06014-00

Unavailable

18

BOLT, WASHER BASED

90105-06541-00

Unavailable

19

BOLT, WASHER BASED(4KG)

90105-060A0-00

Unavailable

20

COVER,CYL.HEAD 1

3GM-11191-01-00

Unavailable

21

GASKET, HEAD COVER 1

4SV-11193-01-00

Unavailable

22

BOLT(3TJ)

90109-064F0-00

Unavailable

23

WASHER(46X)

90209-11262-00

Unavailable

24

RUBBER, MOUNT 1

2GH-1111G-00-00

Unavailable
