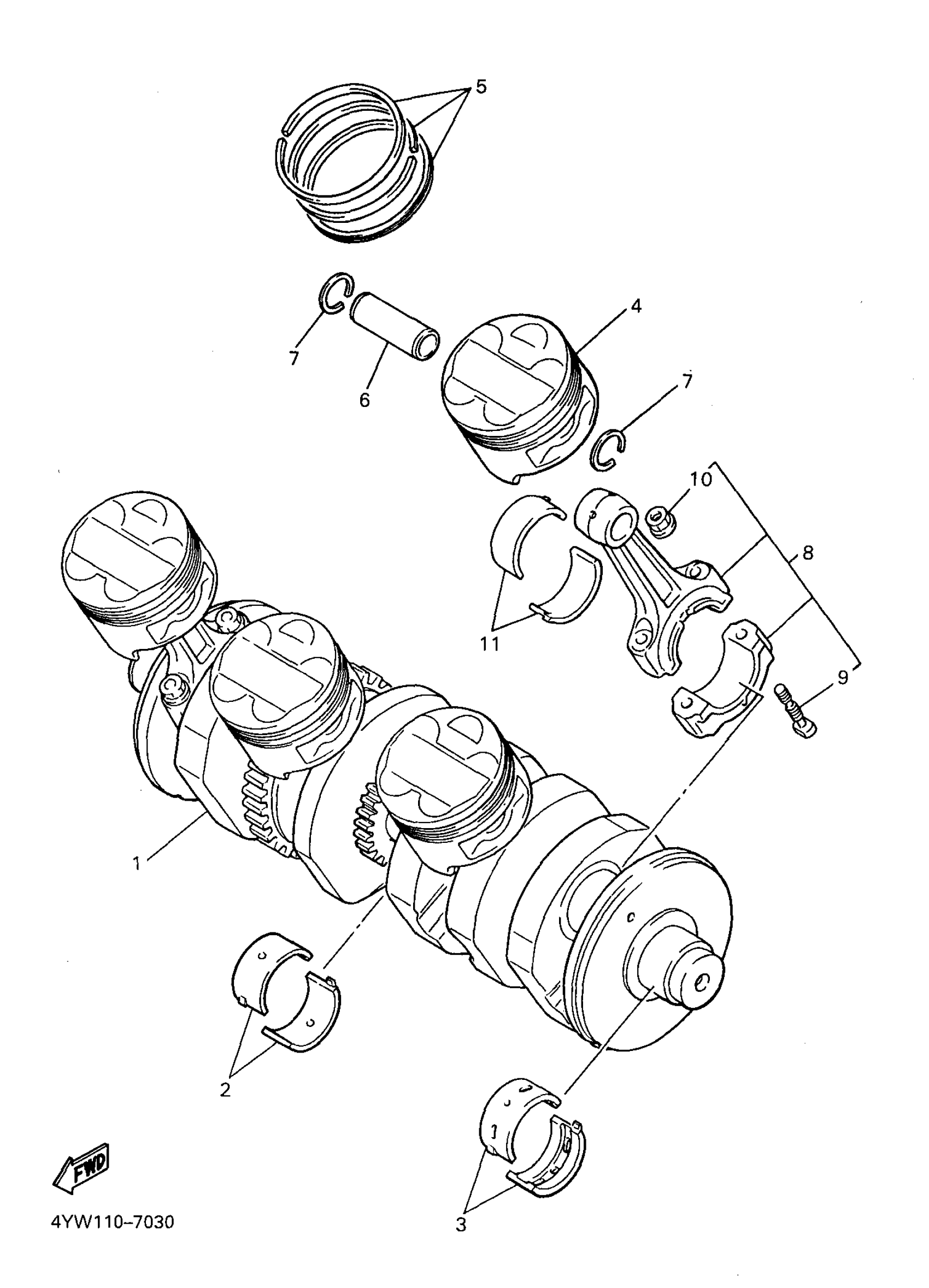

Yamaha YZF1000RJC (YZF1000R CA) 1997 CRANKSHAFT PISTON Diagram

#

Description
Price

1

CRANKSHAFT

4SV-11411-00-00

Unavailable

2

PLANE BEARING, CRA

4SV-11416-01-00

Unavailable

2

PLANE BEARING, CRA

4SV-11416-11-00

Unavailable

2

PLANE BEARING, CRA

4SV-11416-21-00

Unavailable

2

PLANE BEARING, CRA

4SV-11416-31-00

Unavailable

2

PLANE BEARING, CRA

4SV-11416-41-00

Unavailable

3

PLANE BEARING, CRANKSHAFT 1

3GM-11416-00-00

$30.99

3

PLANE BEARING, CRANKSHAFT 1

3GM-11416-10-00

$30.99

3

PLANE BEARING, CRANKSHAFT 1

3GM-11416-20-00

$30.99

3

PLANE BEARING, CRANKSHAFT 1

3GM-11416-30-00

$28.99

3

PLANE BEARING, CRANKSHAFT 1

3GM-11416-40-00

$13.49

4

PISTON (STD)

4SV-11631-00-00

Unavailable

4

PISTON (0.50MM O/S)

4SV-11636-00-00

Unavailable

5

PISTON RING SET (STD)

4BH-11603-00-00

$68.99

5

PISTON RING SET (0.50MM O/S)

4BH-11605-00-00

$81.99

6

PIN, PISTON

4SV-11633-00-00

Unavailable

7

CIRCLIP (26H)

93450-19095-00

Unavailable

8

CONNECTING ROD ASSY

3GM-11650-10-00

Unavailable

9

BOLT, CONNECTING ROD

12R-11654-00-00

Unavailable

10

NUT (11H)

90179-08327-00

Unavailable

11

PLANE BEARING, CONNECTING ROD

3GM-11656-00-00

Unavailable

11

PLANE BEARING, CONNECTING ROD

3GM-11656-10-00

Unavailable

11

PLANE BEARING, CONNECTING ROD

3GM-11656-20-00

Unavailable

11

PLANE BEARING, CONNECTING ROD

3GM-11656-30-00

Unavailable
