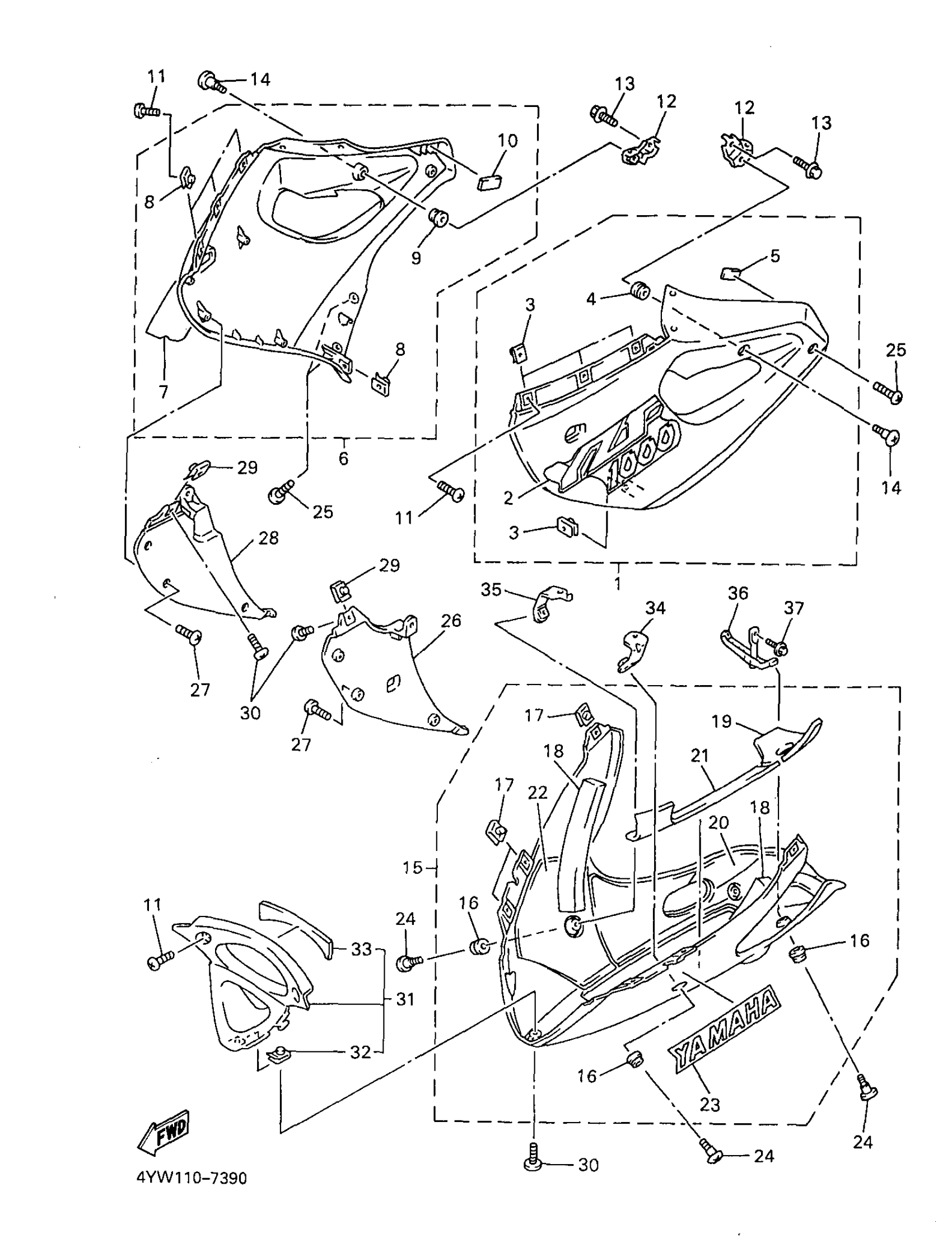

Yamaha YZF1000RJC (YZF1000R CA) 1997 COWLING 2 Diagram
#
1
PANEL ASSEMBLY 1
4SV-Y283U-11-P0
Unavailable
1
PANEL ASSY 1
4SV-W283U-51-P3
Unavailable
2
. GRAPHIC 1 (VIVID RED COCKTAIL 1)
4WN-28391-00-00
Unavailable
2
. GRAPHIC 1 (BLACK 2)
4WN-28391-10-00
Unavailable
5
DAMPER
4SV-28372-00-00
Unavailable
6
PANEL ASSY 2
4SV-Y283V-11-P0
Unavailable
6
PANEL ASSEMBLY 2
4SV-Y283V-51-4B
Unavailable
7
. GRAPHIC 2 (VIVID RED COCKTAIL 1)
4WN-28392-00-00
Unavailable
7
. GRAPHIC 2 (BLACK 2)
4WN-28392-10-00
Unavailable
10
DAMPER
4SV-28372-00-00
Unavailable
12
BRACKET 1
4SV-2836A-00-00
Unavailable
13
BOLT, FLANGE
95817-06012-00
Unavailable
14
SCREW, ROUND HEAD(4HD)
90150-06036-00
Unavailable
15
COVER ASSEMBLY, UNDER (STAR SILVER) (BLACK 2)
4SV-Y2808-10-6M
Unavailable
15
COVER ASSEMBLY, UNDER (VIVID RED COCKTAIL 1) (BLUISH WHITE COCKTAIL 1)
4SV-Y2808-10-P0
Unavailable
18
DAMPER
4SV-28371-00-00
Unavailable
19
. SEAT 2
4SV-2848K-00-00
Unavailable
20
. SEAT 3
4SV-2848L-00-00
Unavailable
21
. SEAT 4
4SV-2848M-00-00
Unavailable
22
. SEAT 5
4SV-2848N-00-00
Unavailable
23
EMBLEM, YAMAHA
99244-00280-00
Unavailable
24
SCREW, ROUND HEAD(4HD)
90150-06036-00
Unavailable
26
PANEL, INNER 1
4SV-2836K-00-P3
Unavailable
26
PANEL, INNER 1 (VIVID RED COCKTAIL 1)
4SV-2836K-00-P0
Unavailable
27
SCREW, TAPPING(3BM)
97704-40012-00
Unavailable
28
PANEL, INNER 2
4SV-2836L-00-P3
Unavailable
28
PANEL, INNER 2 (VIVID RED COCKTAIL 1)
4SV-2836L-00-P0
Unavailable
31
PANEL, INNER 3 (STAR SILVER) (BLACK 2)
4SV-Y283S-00-6M
Unavailable
31
PANEL, INNER 3 (VIVID RED COCKTAIL 1) (BLUISH WHITE COCKTAIL 1)
4SV-Y283S-00-P0
Unavailable
33
. SEAT
4SV-2848H-00-00
Unavailable
34
BRACKET 3
4SV-2836F-00-00
Unavailable
35
BRACKET 4
4SV-2836G-00-00
Unavailable
36
STAY, SUPPORT 1
4FM-2831T-00-00
Unavailable
37
BOLT, HEXA W/W
90119-06018-00
Unavailable
