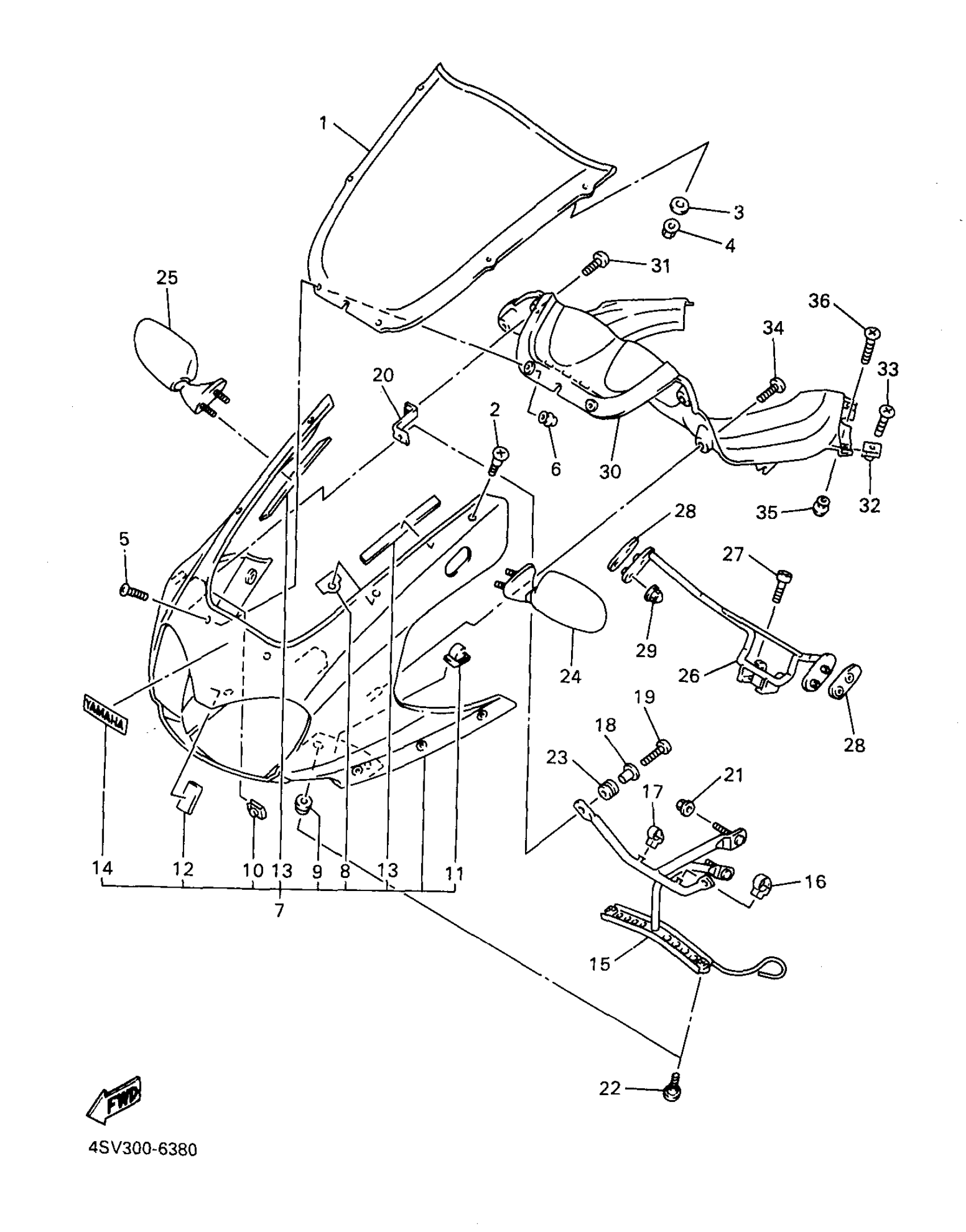

Yamaha YZF1000RJC (YZF1000R CA) 1997 COWLING 1 Diagram
#
1
WINDSHIELD
4SV-28381-01-00
Unavailable
7
BODY, FRONT UPPER 1
4SV-W283G-00-4X
Unavailable
7
BODY, FRONT UPPER 1
4SV-W283G-10-5X
Unavailable
8
. PROTECTOR 1
4SV-2834V-00-00
Unavailable
12
. DAMPER, LOCATING 1
22F-24181-00-00
Unavailable
13
. DAMPER 1
4SV-28415-00-00
Unavailable
14
EMBLEM, YAMAHA
99244-00100-00
Unavailable
14
EMBLEM, YAMAHA
99246-00100-00
Unavailable
15
STAY 1
4SV-28356-00-00
Unavailable
16
CLAMP(4GY)
90464-20191-00
Unavailable
17
CLAMP(4GY)
90464-10190-00
Unavailable
18
COLLAR(1LJ)
90387-067N5-00
Unavailable
19
SCREW, PAN
98517-06020-00
Unavailable
20
STAY 2
4SV-28357-00-00
Unavailable
21
NUT, SELF-LOCKING
90185-08169-00
Unavailable
22
SCREW, ROUND HEAD(4HD)
90150-06036-00
Unavailable
24
REAR VIEW MIRROR ASSY(LEFT)
4SV-26280-00-00
Unavailable
25
REAR VIEW MIRROR ASSY(RIGHT)
4SV-26290-00-00
Unavailable
26
STAY, MIRROR 1
4SV-2831W-00-00
Unavailable
27
BOLT
90110-06210-00
Unavailable
28
PLATE, MIRROR FITTING 1
4SV-26298-00-00
Unavailable
29
NUT, CROWN(1FN)
90176-06055-00
Unavailable
30
PANEL, CONSOLE 1
4SV-2837L-00-00
Unavailable
31
SCREW, BINDING (10V)
90154-05013-00
Unavailable
32
NUT, SPRING
90183-051A0-00
Unavailable
33
SCREW, ROUND HEAD(4HD)
90150-05039-00
Unavailable
34
SCREW, TAPPING
90167-05075-00
Unavailable
36
SCREW, BINDING
98907-05016-00
Unavailable
