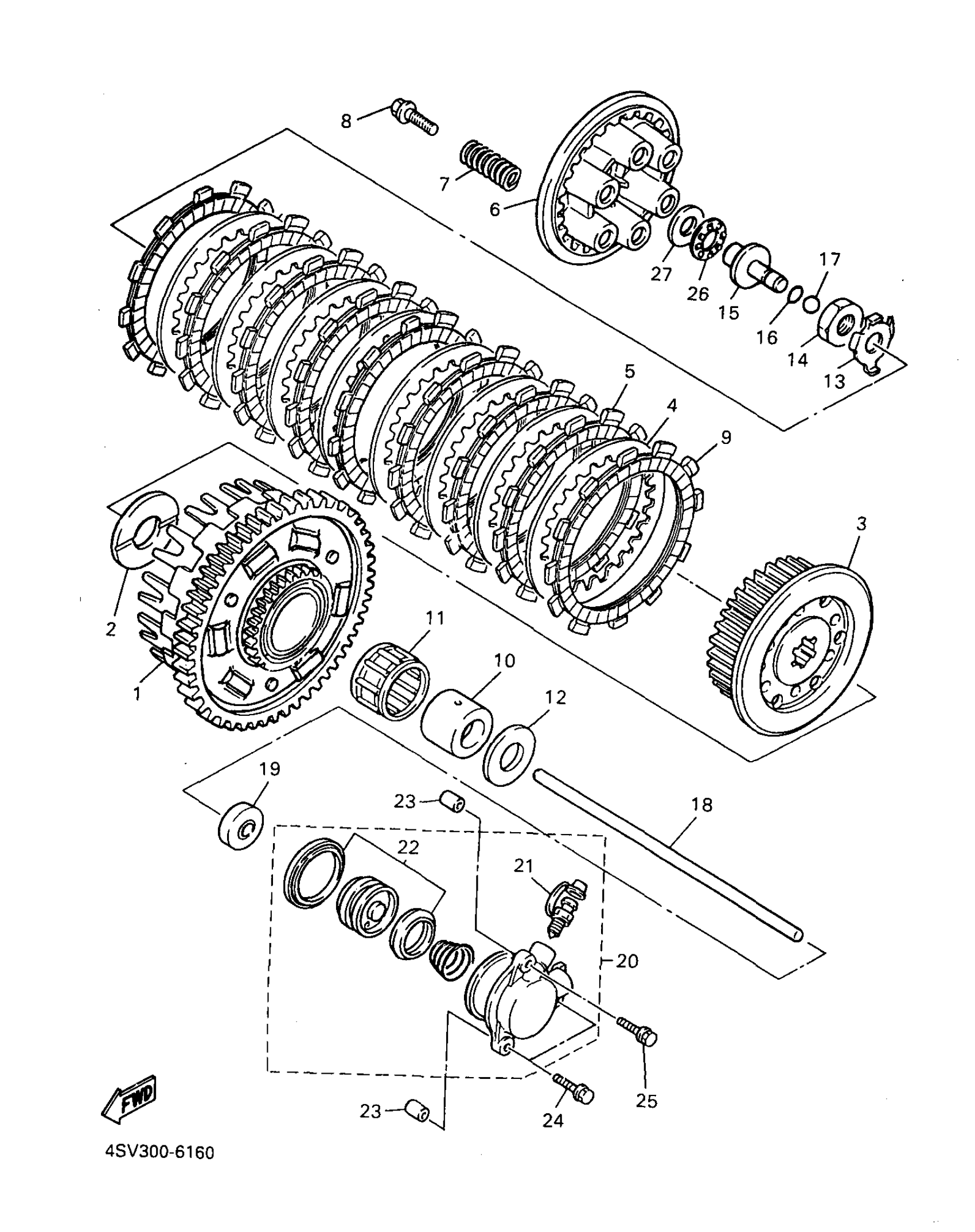

Yamaha YZF1000RJC (YZF1000R CA) 1997 CLUTCH Diagram

#

Description
Price

1

PRIMARY DRIVEN GEAR COMP.

4SV-16150-01-00

Unavailable

2

PLATE, THRUST 1

1AE-16154-00-00

Unavailable

3

BOSS, CLUTCH

4BH-16371-02-00

Unavailable

4

PLATE, CLUTCH 2

31A-16325-10-00

$9.99

5

PLATE, FRICTION

4H7-16321-02-00

$23.99

6

PLATE, PRESSURE 1

3GM-16351-00-00

Unavailable

7

SPRING, COMPRESSION(3GM)

90501-230E4-00

$9.49

8

SCREW, WITH WASHER(1AE)

90159-06123-00

$9.49

9

PLATE, FRICTION

3GM-16321-00-00

$19.99

10

COLLAR

90387-25024-00

Unavailable

11

BEARING, CYLINDRICAL(1FN)

93310-340N8-00

Unavailable

12

PLATE, THRUST 2

1AE-16164-00-00

$16.49

13

WASHER, LOCK (34L)

90215-20231-00

$4.41

14

NUT (34L)

90170-20327-00

$18.99

15

ROD, PUSH 1

3GM-16356-00-00

Unavailable

16

O-RING (26H)

93210-06632-00

Unavailable

17

BALL (498)

93511-32027-00

Unavailable

18

ROD, PUSH 2

1AE-16357-00-00

Unavailable

19

OIL SEAL(12E)

93109-08061-00

Unavailable

20

PUSH LEVER COMP.

1TV-16381-12-00

Unavailable

21

BLEED SCREW KIT

36Y-W0048-00-00

Unavailable

22

PUSH LEVER SEAL KIT

26H-W0098-00-00

Unavailable

23

PIN, DOWEL

99530-08012-00

Unavailable

24

BOLT, SMALL FLANGE

95027-06030-00

Unavailable

25

BOLT, SMALL FLANGE

95027-06090-00

Unavailable

26

BEARING, THRUST (713)

93340-21505-00

Unavailable

27

WASHER, PLATE(3GD)

90201-150U6-00

Unavailable
