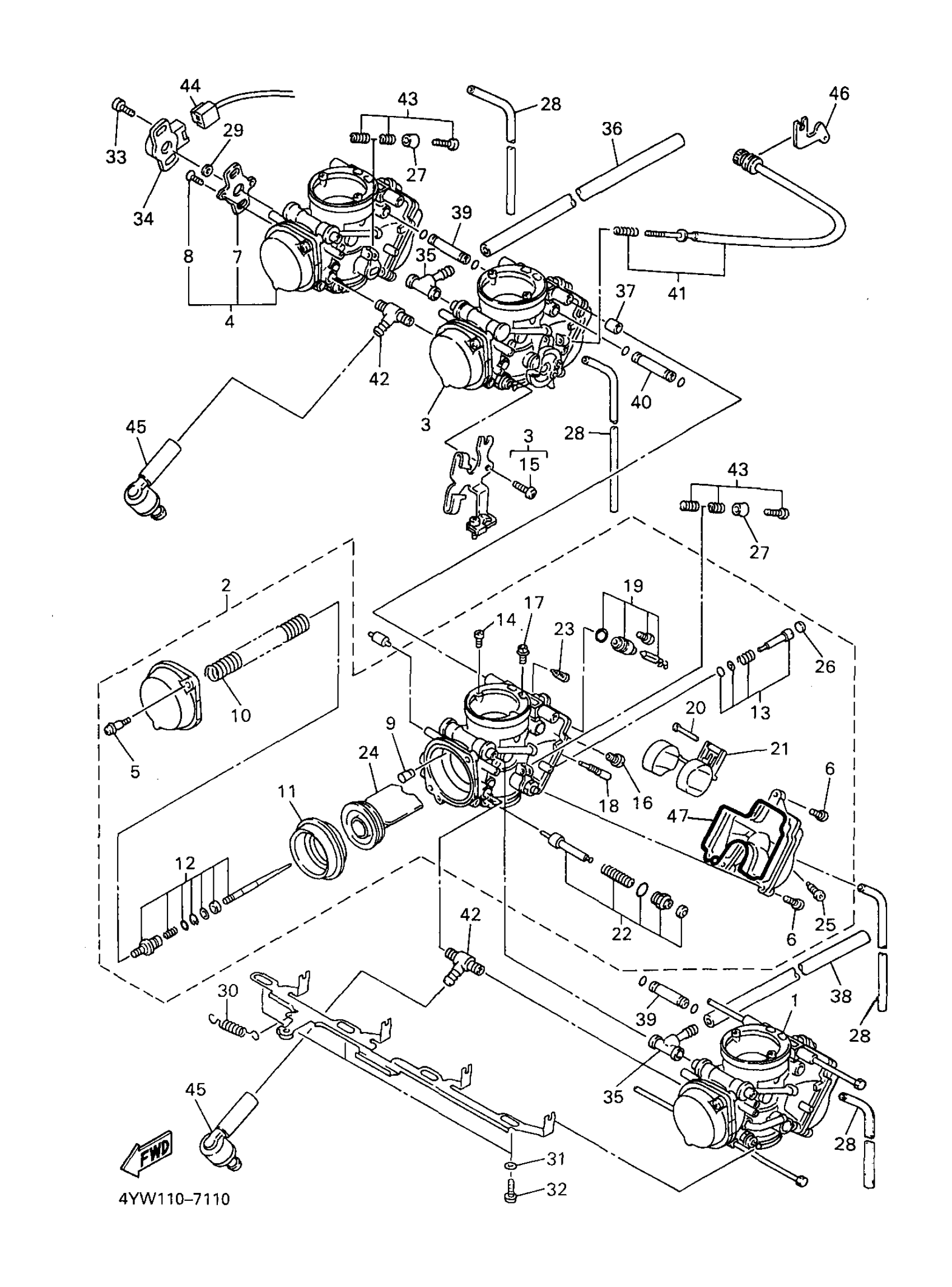

Yamaha YZF1000RJC (YZF1000R CA) 1997 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSEMBLY 1

4YW-14901-00-00

Unavailable

1

CARBURETOR ASSEMBLY 1

4YW-14901-10-00

Unavailable

2

CARBURETOR ASSEMBLY 2

4YW-14902-00-00

Unavailable

2

CARBURETOR ASSEMBLY 2

4YW-14902-10-00

Unavailable

3

CARBURETOR ASSEMBLY 3

4YW-14903-00-00

Unavailable

3

CARBURETOR ASSEMBLY 3

4YW-14903-10-00

Unavailable

4

CARBURETOR ASSEMBLY 4

4YW-14904-00-00

Unavailable

4

CARBURETOR ASSEMBLY 4

4YW-14904-10-00

Unavailable

5

SCREW

4KM-14216-00-00

$7.99

6

SCREW, PAN

98517-05012-00

$4.73

7

. BRACKET

4KG-14995-00-00

Unavailable

8

SCREW, FLAT

98707-04008-00

Unavailable

9

. CAP

4SV-14968-00-00

Unavailable

10

. SPRING, DIAPHRAGM

4SV-14933-00-00

Unavailable

11

DIAPHRAGM

4SV-24411-00-00

Unavailable

12

. NEEDLE SET

4YW-1490J-00-00

Unavailable

13

PILOT SCREW SET

4SV-14105-00-00

Unavailable

14

SCREW, PAN HEAD(N15)

98507-04014-00

Unavailable

15

SCREW, PAN HEAD(3LA)

98517-05010-00

Unavailable

16

JET, MAIN (#125)

3G2-14231-25-00

Unavailable

16

JET,MAIN #127.5

3G2-1423A-76-00

Unavailable

17

. JET, MAIN (#1225)

8CC-1423A-75-00

Unavailable

18

JET, PILOT (# 17.5)

4KM-14142-17-00

Unavailable

19

NEEDLE VALVE SET

4SV-14107-15-00

Unavailable

20

. PIN, FLOAT

620-14186-00-00

Unavailable

21

FLOAT

4SV-14985-00-00

Unavailable

22

STARTER SET

4SV-1410A-00-00

Unavailable

23

NET, FILTER

1KT-14994-00-00

Unavailable

24

VALVE, THROTTLE 1

4SV-14112-00-00

Unavailable

25

PLUG, DRAIN

4KP-14191-00-00

Unavailable

26

CAP

3F9-14118-00-00

Unavailable

27

HOLDER

4SV-14261-00-00

Unavailable

28

PIPE

3JE-14197-00-00

Unavailable

29

WASHER

4KG-14285-00-00

Unavailable

30

. SPRING

4SV-14935-00-00

Unavailable

31

PACKING

4NK-14327-00-00

Unavailable

32

SCREW

4SV-24453-00-00

Unavailable

33

SCREW

4KM-24453-00-00

Unavailable

34

THROTTLE SENSOR ASSY

4HD-85885-00-00

Unavailable

35

HOSE

4SV-14987-00-00

Unavailable

36

HOSE

4SV-14987-20-00

Unavailable

37

PIPE

4SV-14996-30-00

Unavailable

38

HOSE

4SV-14987-30-00

Unavailable

38

HOSE

4YW-14987-00-00

Unavailable

39

PIPE

4SV-14996-40-00

Unavailable

40

PIPE

4SV-14996-50-00

Unavailable

41

THROTTLE SCREW SET

4SV-14103-00-00

Unavailable

42

HOSE

4SV-14987-10-00

Unavailable

43

STOP SCREW SET

4KM-1490K-00-00

Unavailable

44

CONNECTOR

4HD-14188-00-00

Unavailable

45

PIPE

4SV-14197-00-00

Unavailable

46

STAY

4FN-14413-00-00

Unavailable

47

O-RING

4XV-14562-00-00

Unavailable
