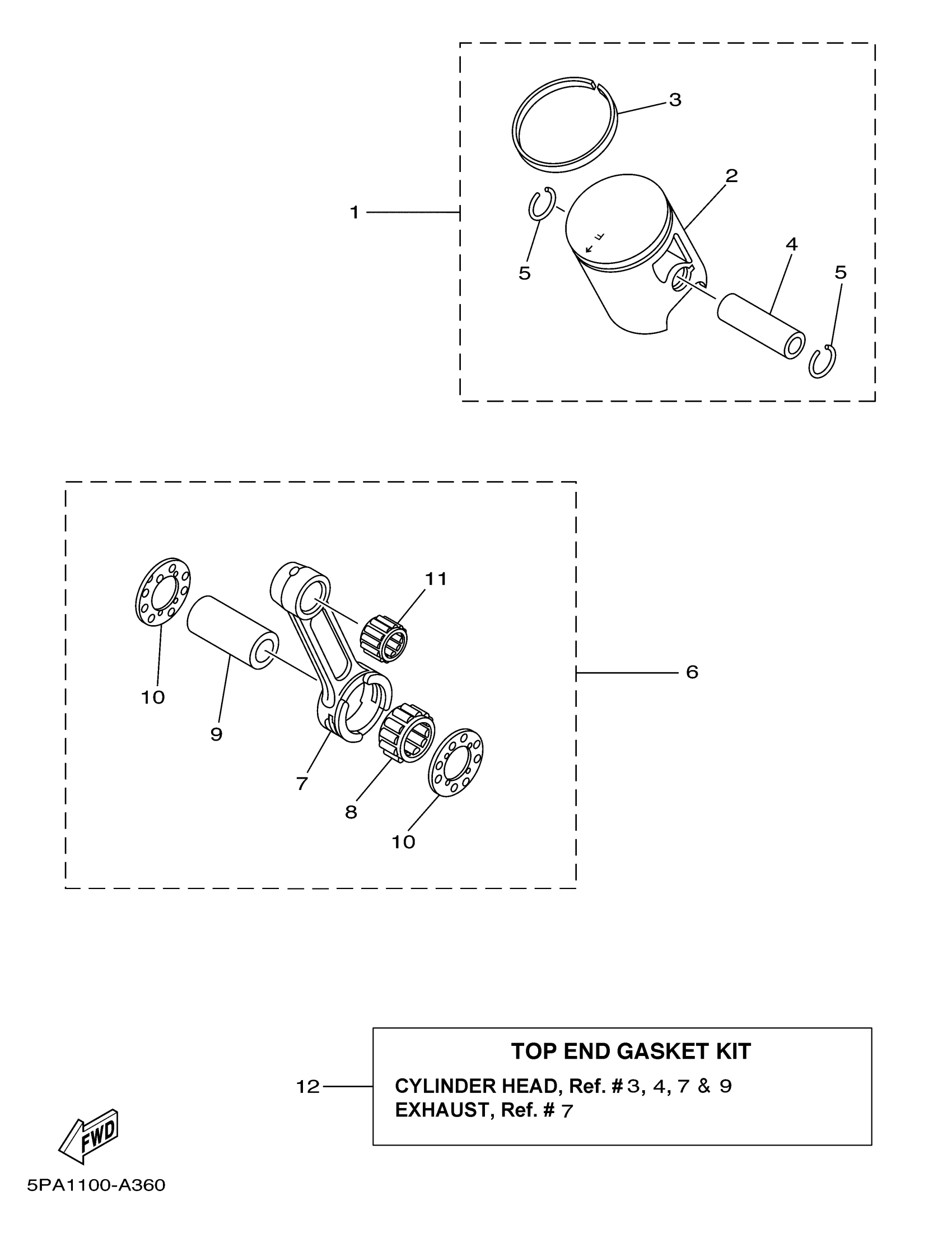

Yamaha YZ85Z (YZ85) 5PAS 2010 OPTIONAL PARTS Diagram

#

Description
Price

1

PISTON ASSY (STD)

5PA-11630-00-00

$113.99

2

PISTON (STD)

5PA-11631-10-B0

$74.99

3

RING, PISTON

5PA-11611-01-00

$16.49

4

PIN, PISTON

4ES-11633-00-00

$16.49

5

CIRCLIP(1HX)

93450-16115-00

$3.88

6

CONNECTING ROD ASSY

4ES-11650-10-00

Unavailable

7

ROD, CONNECTING

4ES-11651-10-00

Unavailable

8

BEARING

93310-420B1-00

$49.99

9

PIN, CRANK 1

2RA-11681-00-00

$37.99

10

WASHER, CRANK PIN (1H9)

90209-20159-00

$5.60

11

BEARING

93310-21417-00

$33.99

12

TOP END GASKET KIT

5PA-W0001-00-00

$28.99
