Description

Price

1

FENDER, FRONT

4ES-21511-20-00

Unavailable

2

BOLT, WITH WASHER

90119-06201-00

$8.49

3

WASHER

90209-06015-00

$1.96

4

LABEL, CAUTION

3XJ-2415E-A1-00

$4.84

5

EMBLEM YAMAHA

4ES-2153E-02-00

$14.49

6

FENDER, REAR

5PA-21611-00-00

$59.99

7

BOLT, WITH WASHER

90119-06133-00

$5.60

8

COLLAR(3XJ)

90387-064X4-00

$7.49

9

COLLAR(4EW)

90387-0701A-00

$9.49

10

NUT, SPRING

90183-060A7-00

$8.49

11

GUARD, FLAP

4ES-21642-01-00

$37.99

12

BOLT, WITH WASHER

90119-06239-00

$3.55

13

LABEL, CAUTION

5PA-2118K-01-00

Unavailable

14

LABEL 5

3XJ-2151H-A1-00

$7.99

15

EMBLEM YAMAHA

4ES-2153E-02-00

$14.49

16

LABEL, CAUTION 2

5B6-2839Y-00-00

Unavailable

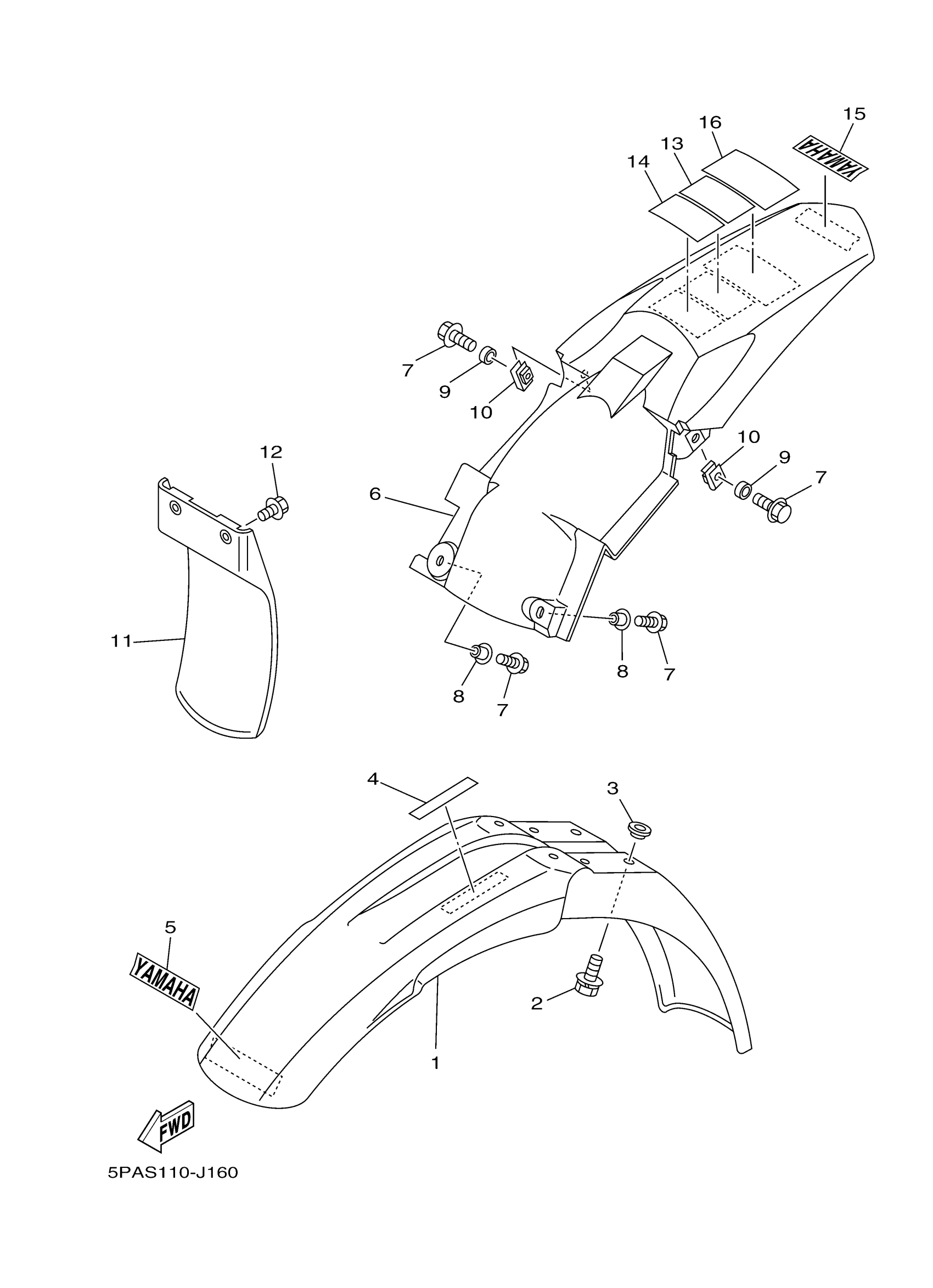

Yamaha YZ85Z (YZ85) 5PAS 2010 FENDER Diagram

FENDER, FRONT

BOLT, WITH WASHER

WASHER

LABEL, CAUTION

EMBLEM YAMAHA

FENDER, REAR

BOLT, WITH WASHER

COLLAR(3XJ)

COLLAR(4EW)

NUT, SPRING

GUARD, FLAP

BOLT, WITH WASHER

LABEL, CAUTION

LABEL 5

EMBLEM YAMAHA

LABEL, CAUTION 2
