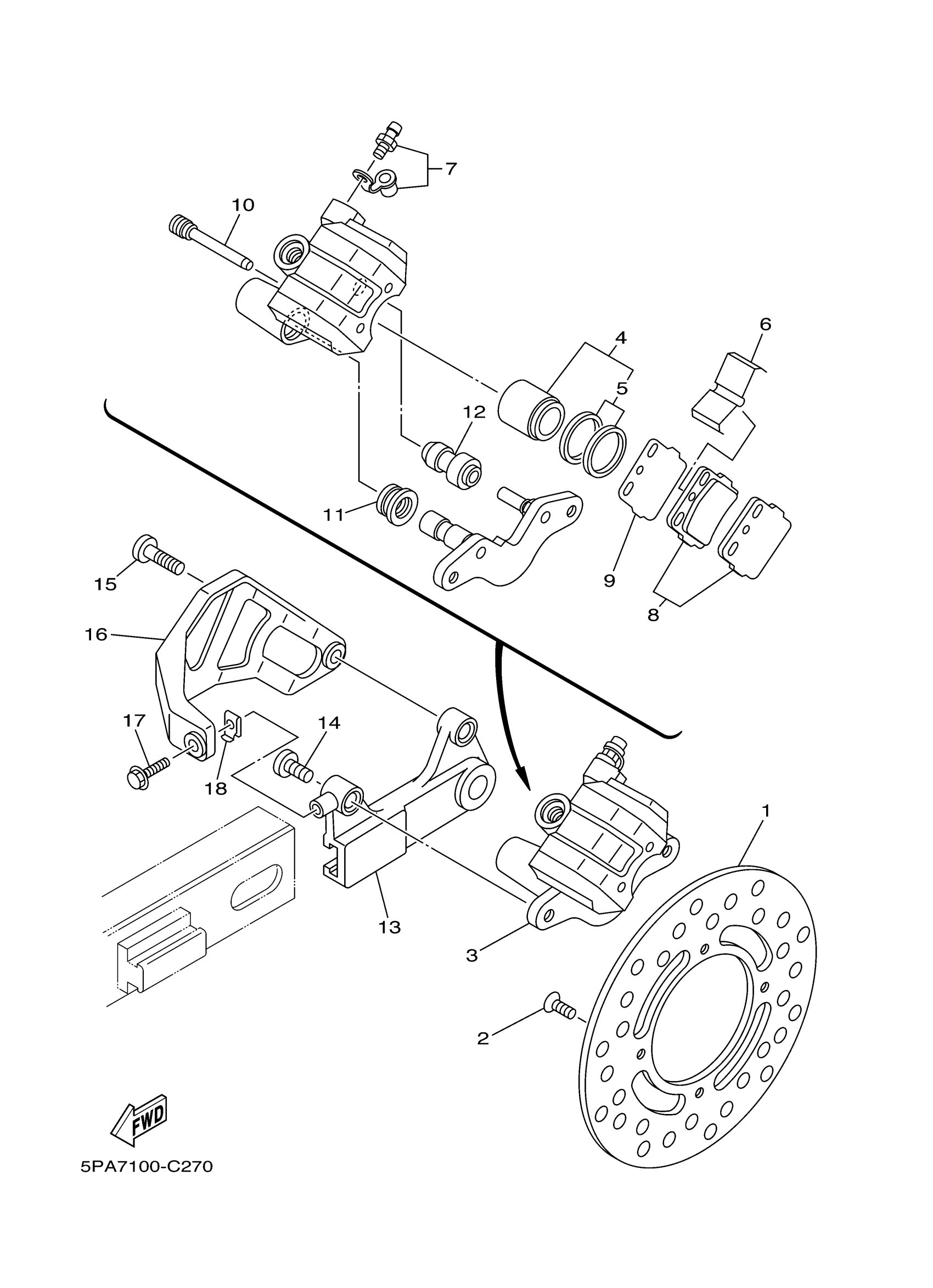

Yamaha YZ85Y (YZ85) 5PAN 2009 REAR BRAKE CALIPER Diagram

#

Description
Price

1

DISC, REAR BRAKE 2

5PA-2582W-00-00

$173.99

2

SCREW, COUNTERSUNK

90151-06080-00

$2.18

3

CALIPER ASSY, REAR 2

5PA-2580W-00-00

$345.99

4

PISTON ASSY, CALIPER

4ES-W0057-00-00

$102.99

5

CALIPER SEAL KIT

4ES-W0047-00-00

$19.99

6

SUPPORT, PAD

1UY-25919-51-00

$22.99

7

BLEED SCREW KIT

36Y-W0048-00-00

$9.99

8

BRAKE PAD KIT 2

5PA-W0046-50-00

$42.99

9

SHIM, CALIPER

3GD-25827-00-00

Unavailable

10

PIN, PAD

3GD-25933-00-00

$28.99

11

BOOT, CALIPER

1UY-25917-51-00

$6.99

12

BOOT 2

1UY-25937-51-00

$14.49

13

SUPT. BRKT. ASSY.

4ES-25920-00-00

$254.99

14

BOLT

90111-08029-00

$8.49

15

BOLT,HEX. SOCKET BUTTON

90111-08084-00

$5.60

16

PROTECTOR

5PA-27491-00-00

Unavailable

17

BOLT, FLANGE

95022-06012-00

Unavailable

18

STOPPER, MAIN STAND

4ES-27114-00-00

Unavailable
