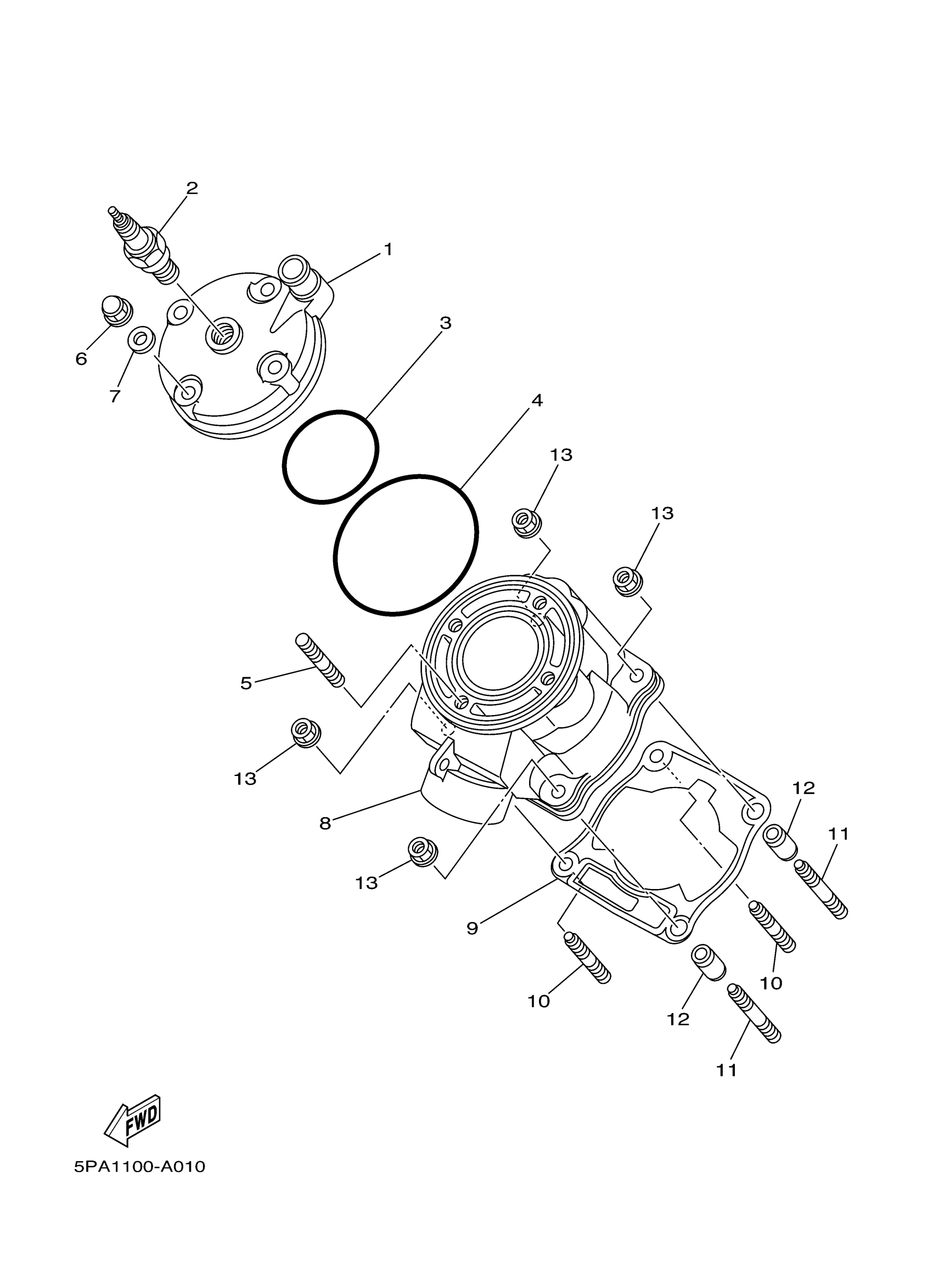

Yamaha YZ85X (YZ85) 5PAK 2008 CYLINDER Diagram

#

Description
Price

1

HEAD, CYLINDER 1

5PA-11111-01-00

Unavailable

2

PLUG, SPARK (NGK BR10EG)

BR1-0EG00-00-00

Unavailable

3

O-RING (4G0)

93210-56459-00

$13.49

4

O-RING(4ES)

93210-84724-00

$10.49

5

BOLT, STUD

90116-08027-00

$9.49

6

NUT, CROWN

90176-08005-00

$2.22

7

WASHER, PLATE

90201-080L8-00

$4.41

8

CYLINDER 1

5PA-11311-30-00

$871.99

9

GASKET, CYLINDER

4ES-11351-00-00

$19.99

10

BOLT, STUD

90116-08031-00

$9.49

11

BOLT, STUD

90116-08028-00

$8.49

12

PIN, DOWEL

99590-10114-00

Unavailable

13

NUT

90179-08019-00

$7.49
