Description

Price

1

FRONT FRAME COMP.

5PA-21101-12-P0

Unavailable

2

REAR FRAME COMP.

5PA-21190-00-P0

Unavailable

3

BOLT, HEXAGON SOCKET HEAD(53Y)

90110-08096-00

$10.49

4

BOLT, FLANGE

95817-08125-00

$9.49

5

BOLT, FLANGE

90105-10111-00

$12.49

6

BOLT, FLANGE

90105-10110-00

$9.49

7

NUT, SELF-LOCKING(JN5)

95607-10200-00

$4.19

8

TENSIONER

30X-22178-00-00

$35.99

9

BUSH

4V4-22184-00-00

$4.47

10

WASHER, PLATE(8AT)

90201-081R9-00

$9.49

11

BOLT, SMALL FLANGE

95027-08012-00

$9.49

12

TENSIONER SET

99999-04397-00

$18.99

13

BOLT, WITH WASHER(81H)

90119-06118-00

$8.49

14

COLLAR(51L)

90387-067K6-00

$10.49

15

BRACKET, C.D.I. UNIT

5PA-21274-10-00

$12.99

16

BOLT, FLANGE(4MY)

95027-06012-00

Unavailable

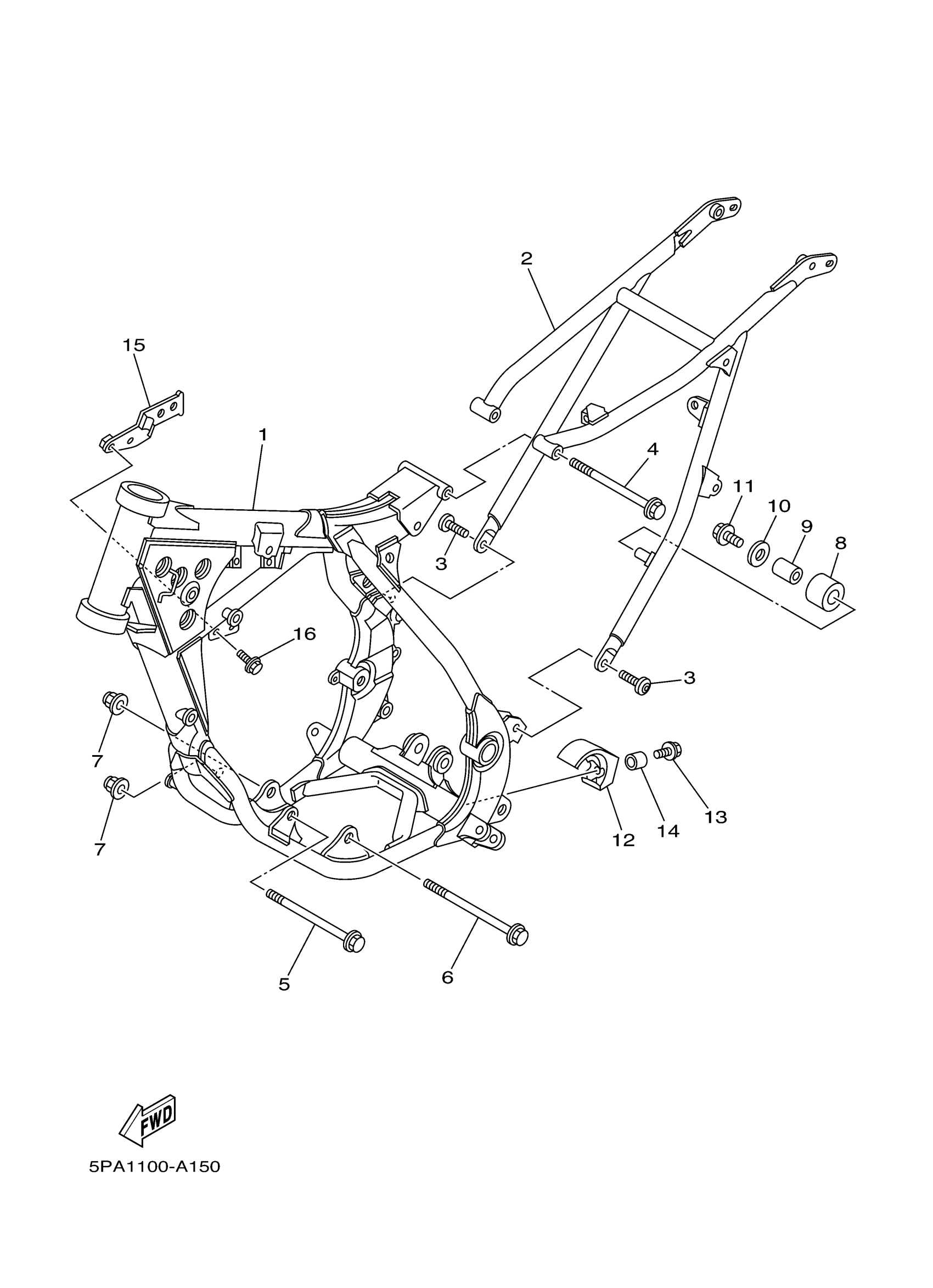

Yamaha YZ85V (YZ85) 5PAD 2006 FRAME Diagram

FRONT FRAME COMP.

REAR FRAME COMP.

BOLT, HEXAGON SOCKET HEAD(53Y)

BOLT, FLANGE

BOLT, FLANGE

BOLT, FLANGE

NUT, SELF-LOCKING(JN5)

TENSIONER

BUSH

WASHER, PLATE(8AT)

BOLT, SMALL FLANGE

TENSIONER SET

BOLT, WITH WASHER(81H)

COLLAR(51L)

BRACKET, C.D.I. UNIT

BOLT, FLANGE(4MY)
