Description

Price

1

FENDER, FRONT

4ES-21511-20-00

Unavailable

2

BOLT, WITH WASHER (10V)

90119-06063-00

$9.49

3

WASHER (3R8)

90209-06187-00

$8.49

4

LABEL, CAUTION

3XJ-2415E-A1-00

$4.84

5

EMBLEM YAMAHA

4ES-2153E-02-00

$14.49

6

FENDER, REAR

5PA-21611-00-00

$59.99

7

BOLT, WITH WASHER(3RB)

90119-06192-00

$8.49

8

COLLAR(3XJ)

90387-064X4-00

$7.49

9

COLLAR(4EW)

90387-0701A-00

$9.49

10

NUT, SPRING (26H)

90183-06023-00

$9.49

11

GUARD, FLAP

4ES-21642-01-00

$37.99

12

BOLT, WITH WASHER(3JD)

90119-06185-00

$10.49

13

LABEL, CAUTION

5PA-2118K-01-00

Unavailable

14

LABEL 5

3XJ-2151H-A1-00

$7.99

15

EMBLEM YAMAHA

4ES-2153E-02-00

$14.49

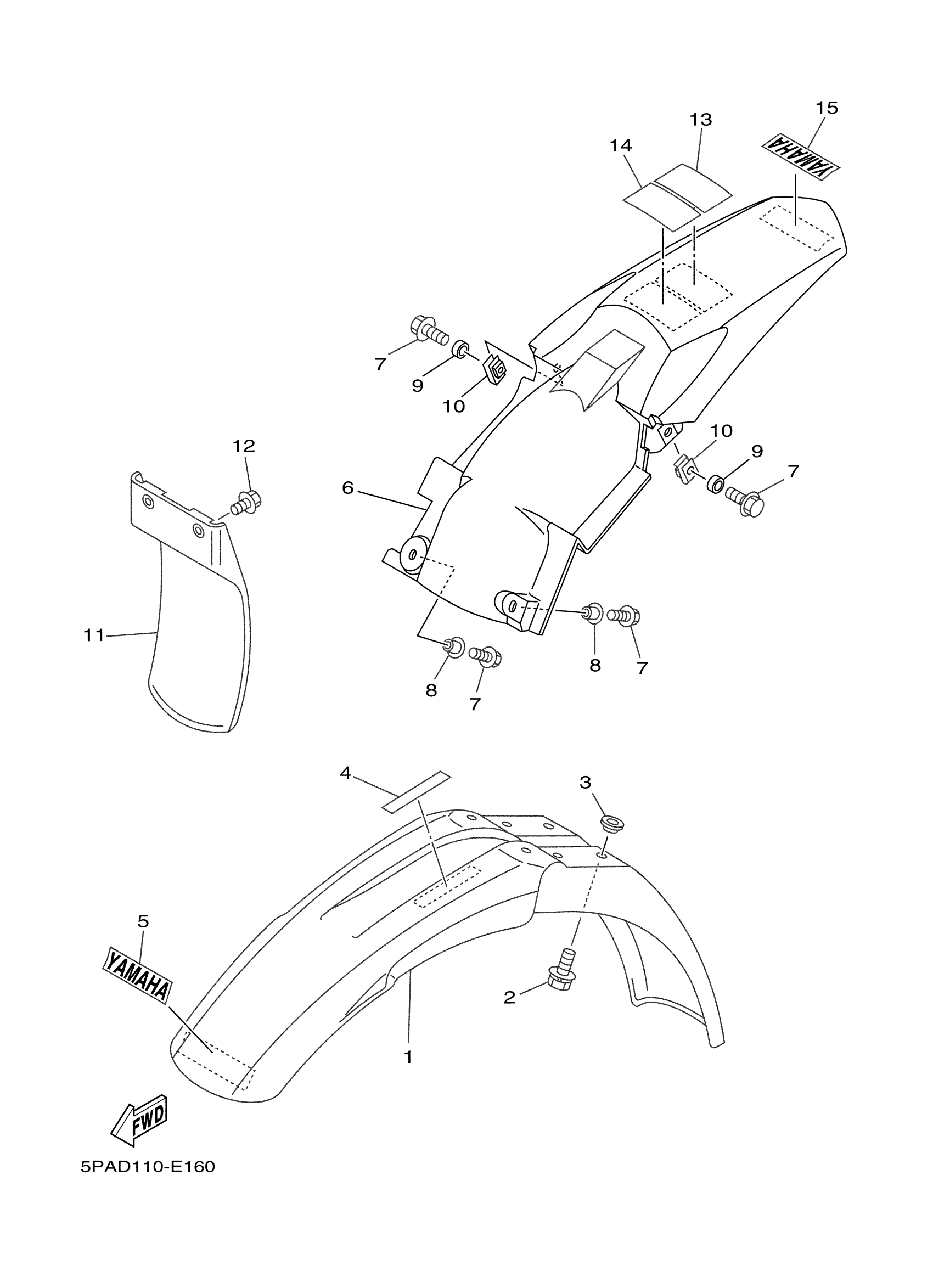

Yamaha YZ85V (YZ85) 5PAD 2006 FENDER Diagram

FENDER, FRONT

BOLT, WITH WASHER (10V)

WASHER (3R8)

LABEL, CAUTION

EMBLEM YAMAHA

FENDER, REAR

BOLT, WITH WASHER(3RB)

COLLAR(3XJ)

COLLAR(4EW)

NUT, SPRING (26H)

GUARD, FLAP

BOLT, WITH WASHER(3JD)

LABEL, CAUTION

LABEL 5

EMBLEM YAMAHA
