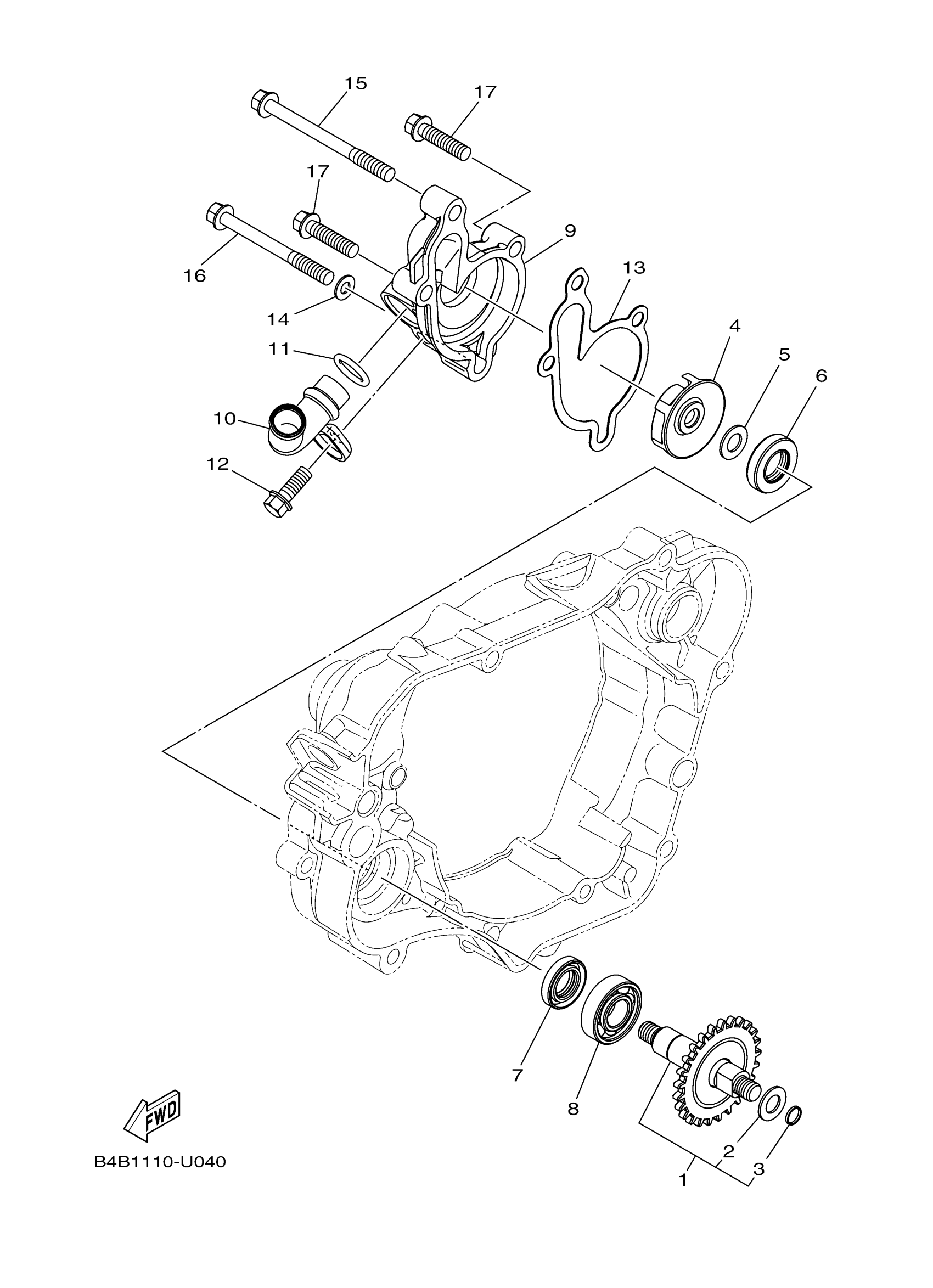

Yamaha YZ85T2 (YZ85) B4BP 2026 WATER PUMP Diagram

GEAR, IMPELLER SHAFT

5PA-12459-00-00

$113.99

WASHER, PLATE (5F7)

90201-08512-00

$8.49

CIRCLIP

93440-07182-00

$3.78

IMPELLER, WATER PUMP

5PA-12451-00-00

$55.99

WASHER, PLATE (5F7)

90201-08512-00

$8.49

OIL SEAL

93109-11073-00

$11.49

OIL SEAL (12X22X5-371)

93102-12106-00

$11.49

BRG,R-B 6001 28MM 28G KY

93306-00105-00

$30.99

COVER, HOUSING

BR8-12422-00-00

$60.99

PIPE 1

B4B-12481-00-00

$28.99

O-RING(36Y)

93210-13657-00

$7.49

BOLT, FLANGE DEEP RECESS

95E32-06016-00

$0.60

GASKET, HOUSING COVER 2

BR8-12428-00-00

$3.40

GASKET (4V2)

90430-06166-00

$3.76

BOLT, FLANGE DEEP RECESS

95E32-06070-00

$0.70

BOLT, FLANGE DEEP RECESS

95E32-06060-00

Unavailable

BOLT, FLANGE DEEP RECESS

95E32-06025-00

Unavailable
