2026 Yamaha YZ85 (YZ85T2) Intake Diagram

← All diagrams

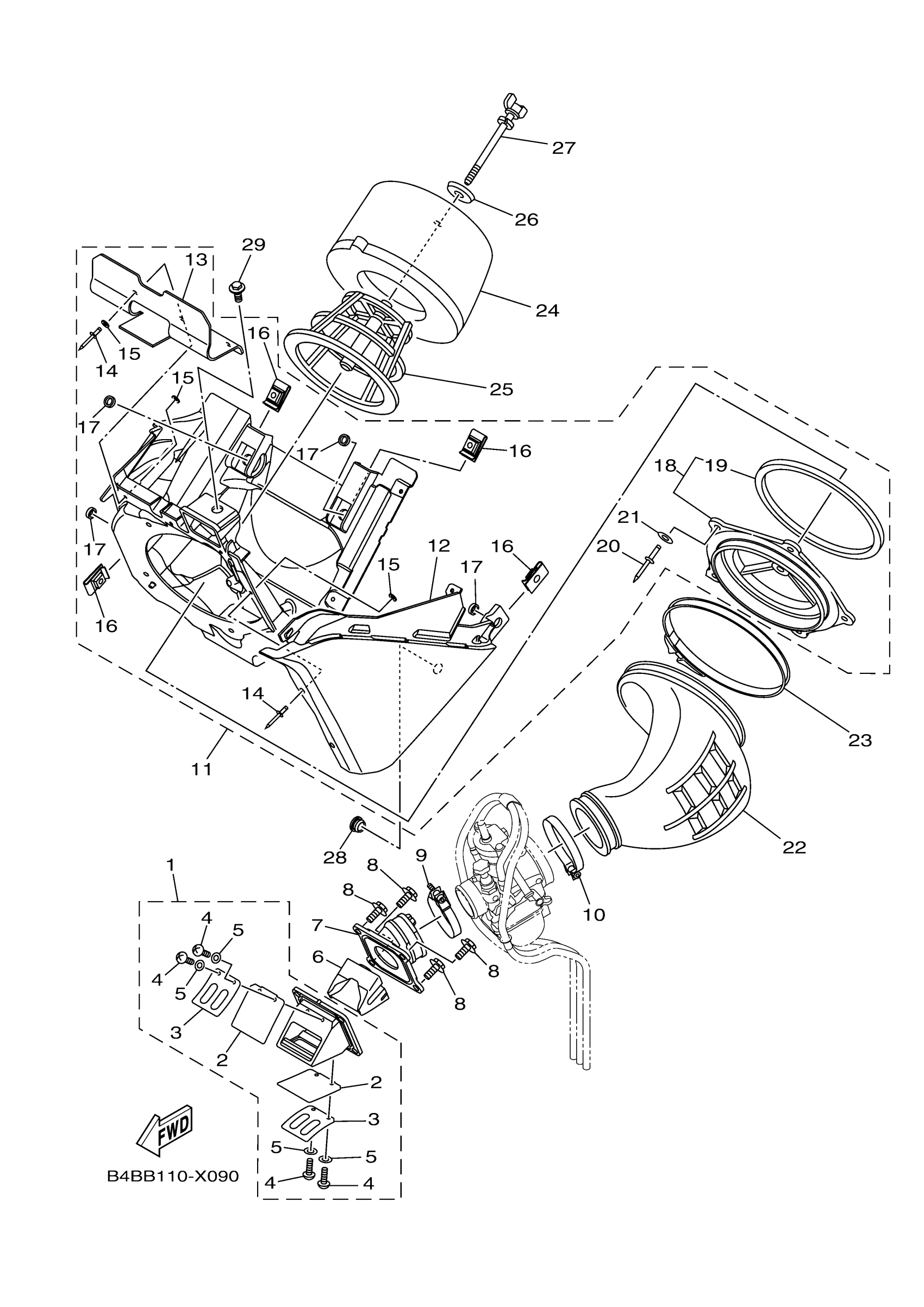

Find the part on the Intake diagram for your 2026 Yamaha YZ85 (YZ85T2), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2026 Yamaha YZ85 (YZ85T2) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REED VALVE ASSY

BR8-13610-00-00

1
Out of stock

2

REED, VALVE

BR8-13613-00-00

1
Out of stock

3

STOPPER, REED VALVE

4ES-13616-00-00

1
Out of stock

4

SCREW, PAN HEAD(78G)

98580-03006-00

—
Out of stock

5

WASHER, SPRING

92990-03100-00

1
Out of stock

6

SPACER, REED VALVE

BR8-13625-00-00

—
Out of stock

7

JOINT, CARBURETOR

BR8-13565-00-00

1
Out of stock

8

BOLT, FLANGE DEEP RECESS

95E32-06016-00

1
Out of stock

9

BAND

4TR-13474-02-00

1
Out of stock

10

HOSE CLAMP ASSY

90450-56001-00

1
Out of stock

11

AIR CLEANER CASE A

B4B-14401-00-00

1
Out of stock

12

COVER 1

B4B-14417-00-00

1
Out of stock

13

COVER, AIR CLEANER

B4B-1449E-00-00

1
Out of stock

14

RIVET, BLIND

90267-32196-00

1
Out of stock

15

WASHER, PLATE 8077743700

90201-03313-00

1
Out of stock

16

NUT, SPRING

90183-060A7-00

—
Out of stock

17

COLLAR

90387-06069-00

—
Out of stock

18

HOLDER, GUIDE

5PA-14459-00-00

—
Out of stock

19

SEAL

4ES-14462-00-00

—
Out of stock

20

RIVET, BLIND(80N)

90267-48138-00

—
Out of stock

21

WASHER, PLATE (34L)

90201-043H7-00

—
Out of stock

22

JOINT, AIR CLEANER

5PA-14453-01-00

—
Out of stock

23

HOSE CLAMP ASSY

90450-99014-00

—
Out of stock

24

ELEMENT, AIR CLEANER

5PA-14451-02-00

—
Out of stock

25

GUIDE

5PA-14458-00-00

—
Out of stock

26

WASHER (4H7)

90209-06096-00

—
Out of stock

27

BOLT, WING

90122-06010-00

—
Out of stock

28

GROMMET

90480-10M28-00

1
Out of stock

29

BOLT

90109-06245-00

—
Out of stock
