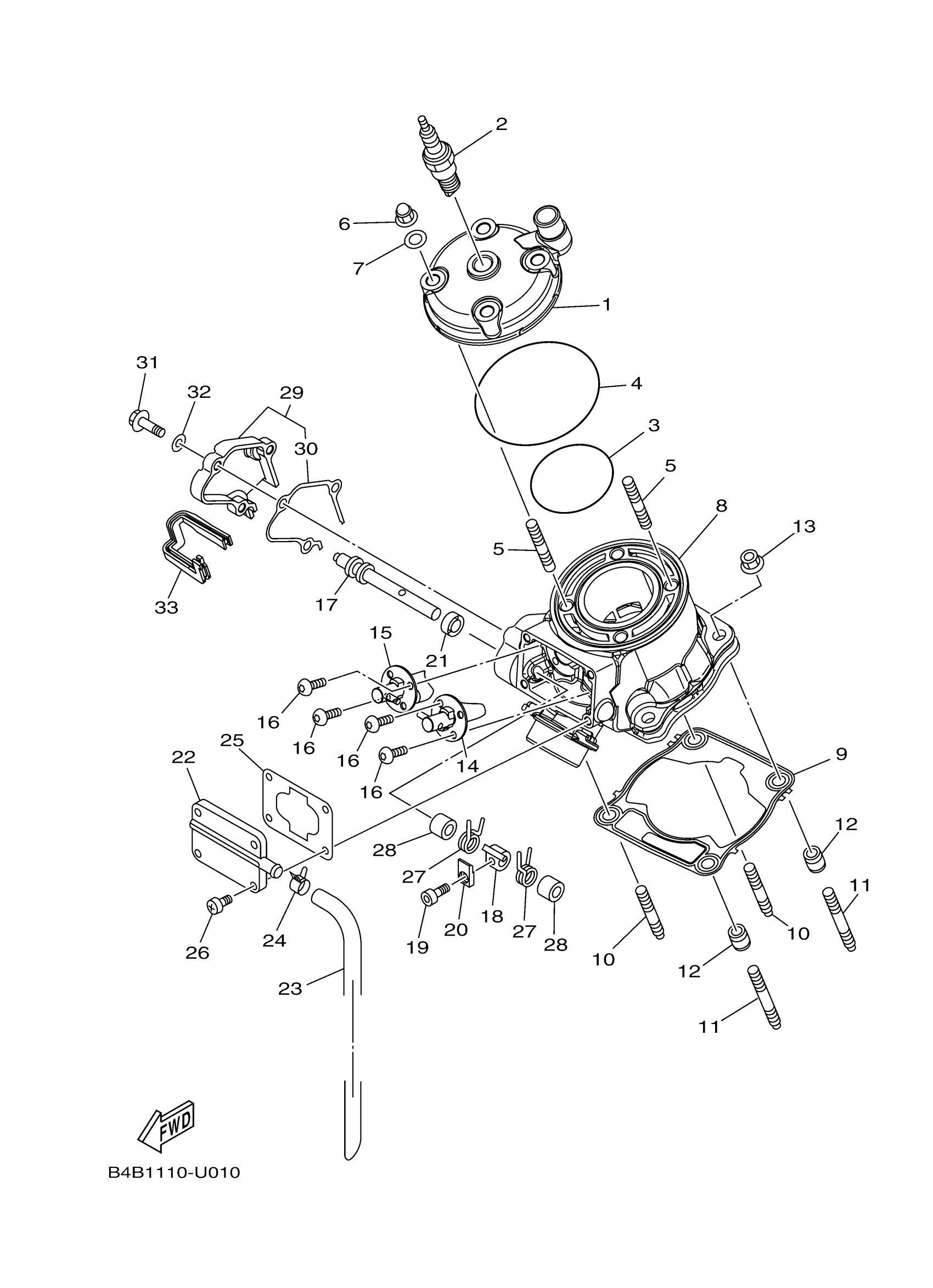

Yamaha YZ85T2 (YZ85) B4BP 2026 CYLINDER Diagram

#

Description
Price

1

HEAD, CYLINDER 1

B4B-11111-00-00

$269.99

2

PLUG, SPARK (NGK BR10EG)

BR1-0EG00-00-00

Unavailable

3

O-RING (4G0)

93210-56459-00

$13.49

4

O-RING(4ES)

93210-84724-00

$10.49

5

BOLT, STUD

90116-08027-00

$9.49

6

NUT, CROWN

90176-08005-00

$2.22

7

WASHER, PLATE

90201-080L8-00

$4.41

8

CYLINDER 1

B4B-11311-00-00

$750.99

9

GASKET, CYLINDER

B4B-11351-00-00

$7.49

10

BOLT, STUD

90116-08031-00

$9.49

11

BOLT, STUD

90116-08028-00

$8.49

12

PIN, DOWEL

99590-10114-00

Unavailable

13

NUT

90179-08019-00

$7.49

14

VALVE ASSY

B4B-1131D-00-00

$327.99

15

VALVE ASSY 2

B4B-1132D-00-00

$251.99

16

SCREW

90149-05001-00

Unavailable

17

SHAFT 1

5HD-1131V-00-00

Unavailable

18

LEVER, LINK

4SS-11832-00-00

Unavailable

19

BOLT, SOCKET

91317-04010-00

Unavailable

20

HOLDER

5UN-11395-00-00

Unavailable

21

OIL SEAL (8X12X3-371)

93104-08040-00

Unavailable

22

COVER

4SS-1131M-01-00

Unavailable

23

PIPE, BREATHER 1

4JY-11166-00-00

Unavailable

24

CLIP(MG5)

90467-14117-00

Unavailable

25

GASKET

1C3-11354-00-00

Unavailable

26

SCREW, BIND (8K2)

98902-05016-00

Unavailable

27

SPRING, TORSION

90508-16134-00

Unavailable

28

COLLAR (7G5)

90387-08785-00

Unavailable

29

HOUSING 1

B4B-11991-00-00

Unavailable

30

GASKET

B4B-11993-00-00

Unavailable

31

BOLT(3JK)

97027-05020-00

Unavailable

32

WASHER, PLAIN (646)

92990-05600-00

Unavailable

33

SEAL, HOUSING

BR8-11995-00-00

Unavailable
