Description

Price

1

GEAR, PRIMARY DRIVE

5PA-16111-00-00

Unavailable

2

COLLAR, DISTANCE (525)

90387-20488-00

$24.99

3

KEY, STRAIGHT

90282-05001-00

$9.49

4

WASHER, CONICAL SPRING 12,2 X

90208-12800-00

Unavailable

5

NUT(1EE)

90179-12659-00

$8.49

6

PRIMARY DRIVEN GEA

5PA-16150-12-00

$294.99

7

WASHER, PLATE (1N1)

90201-17558-00

$9.49

8

BOSS, CLUTCH

5PA-16371-10-00

$100.99

9

PLATE, PRESSURE 1

2TK-16351-00-00

$41.99

10

PLATE, CLUTCH 1

131-16324-10-00

$20.99

11

PLATE, FRICTION

4ES-16321-00-00

$18.49

12

PLATE, FRICTION

3XP-16321-00-00

$19.99

12

PLATE, FRICTION

3XP-16321-00-00

$19.99

13

SPRING, COMPRESSION(58T)

90501-204A0-00

$8.49

14

BOLT, HEXAGON WITH WASHER(353)

90119-05001-00

$8.49

15

WASHER, CONICAL SPRING 12,2 X

90208-12800-00

Unavailable

16

NUT(1EE)

90179-12659-00

$8.49

17

ROD, PUSH 1

4ES-16356-00-00

Unavailable

18

ROD, PUSH 2

5PA-16357-00-00

Unavailable

19

BALL

93503-16003-00

Unavailable

20

BRG,CYL-CAL ROLLER 6G TM

93315-11206-00

Unavailable

21

OIL SEAL (4G0)

93102-12224-00

Unavailable

22

PUSH LEVER COMP.

4ES-16381-00-00

Unavailable

23

SPACER 1

5PA-16181-00-00

Unavailable

24

WASHER, PLATE (24X)

90201-171G6-00

Unavailable

25

SPRING, TORSION

90508-14016-00

Unavailable

26

CLUTCH PLATE KIT

5PA-W001G-00-00

Unavailable

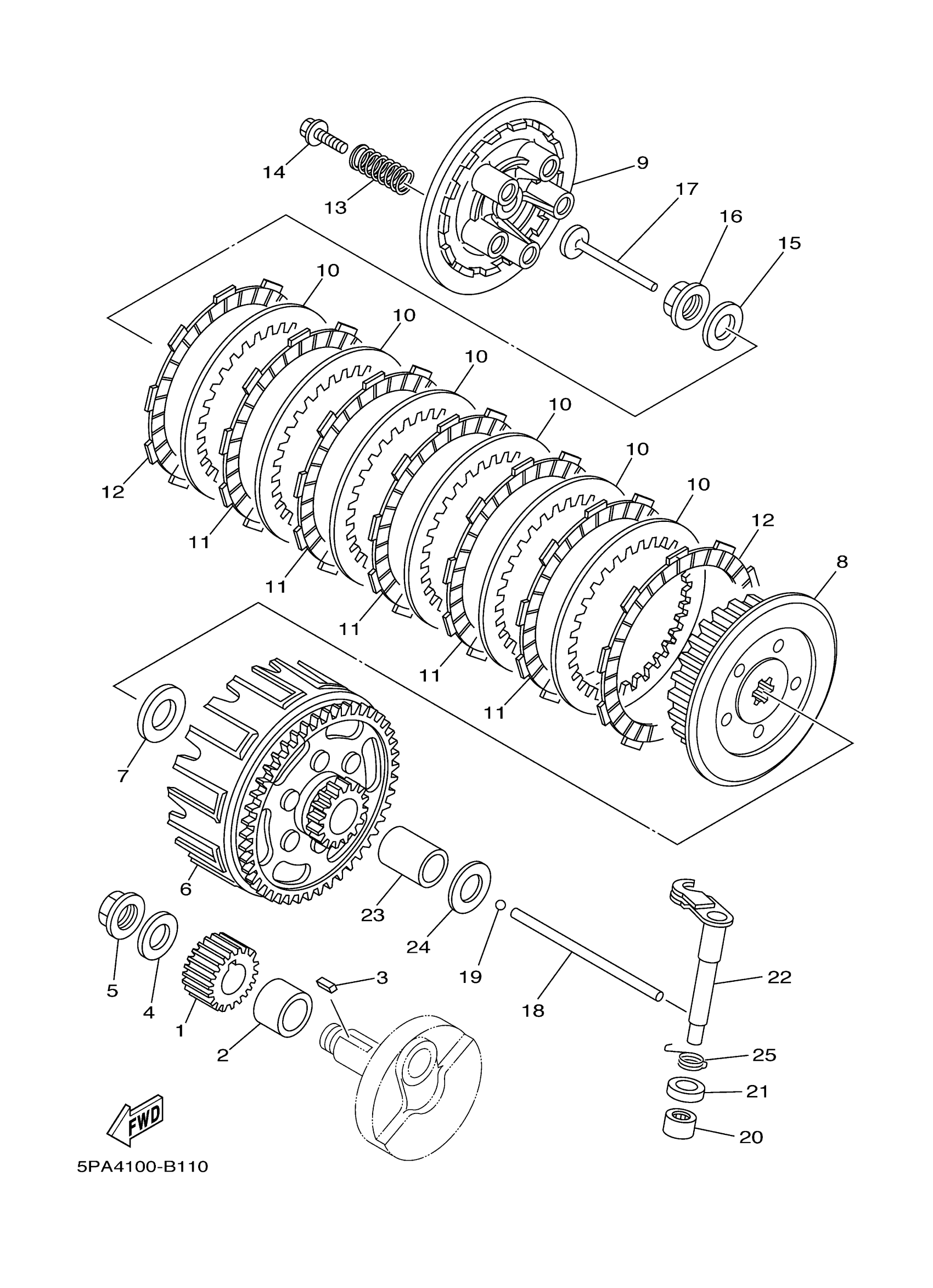

Yamaha YZ85T (YZ85) 5PAA 2005 CLUTCH Diagram

GEAR, PRIMARY DRIVE

COLLAR, DISTANCE (525)

KEY, STRAIGHT

WASHER, CONICAL SPRING 12,2 X

NUT(1EE)

PRIMARY DRIVEN GEA

WASHER, PLATE (1N1)

BOSS, CLUTCH

PLATE, PRESSURE 1

PLATE, CLUTCH 1

PLATE, FRICTION

PLATE, FRICTION

PLATE, FRICTION

SPRING, COMPRESSION(58T)

BOLT, HEXAGON WITH WASHER(353)

WASHER, CONICAL SPRING 12,2 X

NUT(1EE)

ROD, PUSH 1

ROD, PUSH 2

BALL

BRG,CYL-CAL ROLLER 6G TM

OIL SEAL (4G0)

PUSH LEVER COMP.

SPACER 1

WASHER, PLATE (24X)

SPRING, TORSION

CLUTCH PLATE KIT
