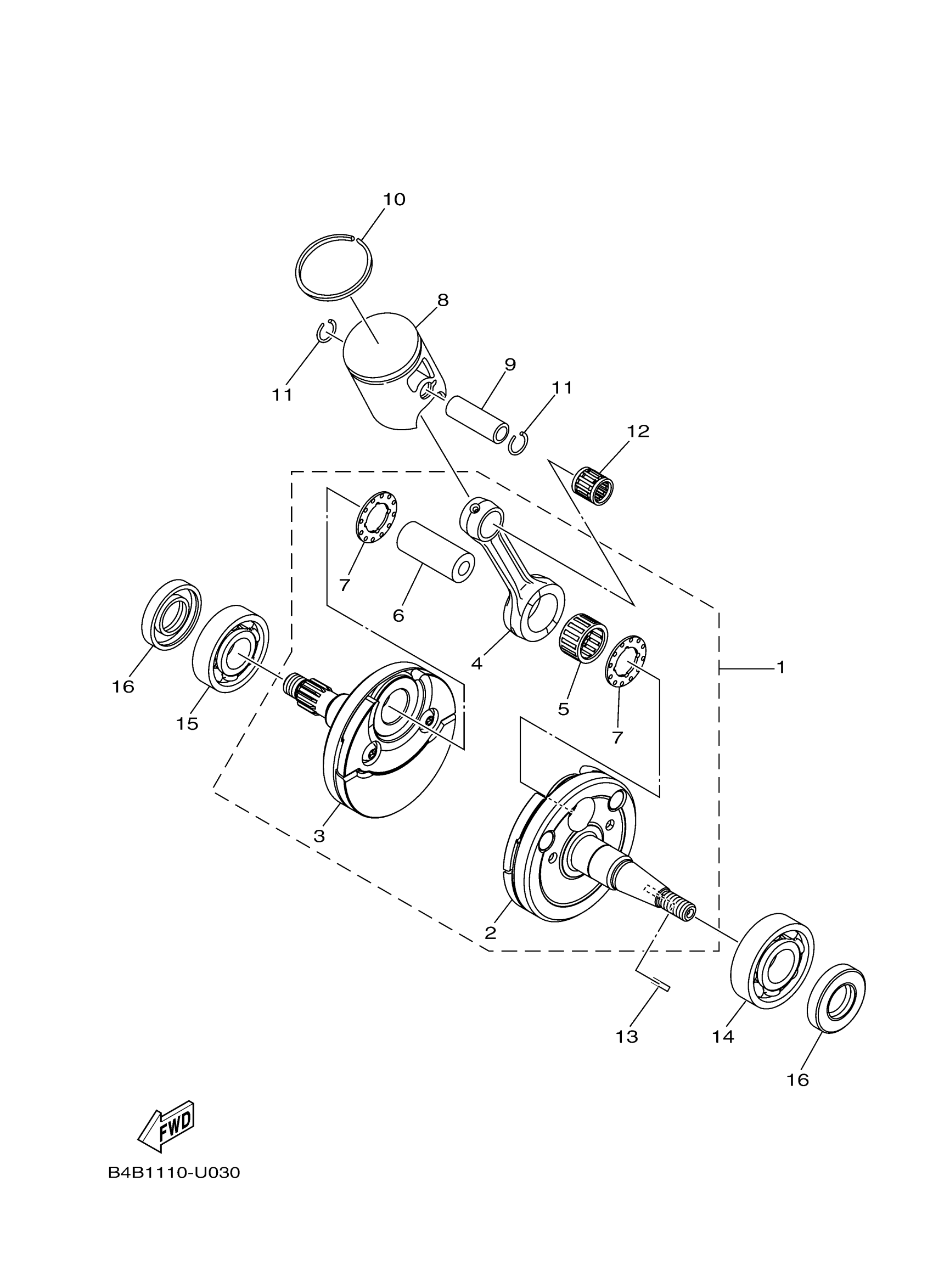

Yamaha YZ85S2 (YZ85) B4BL 2025 CRANKSHAFT & PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSY

B4B-11400-00-00

$338.99

2

CRANKSHAFT

B4B-11410-00-00

$156.99

3

CRANKSHAFT

B4B-11420-00-00

$156.99

4

ROD, CONNECTING

B4B-11651-00-00

$48.99

5

BEARING

93310-420B1-00

$49.99

6

PIN, CRANK 1

2RA-11681-00-00

$37.99

7

WASHER, CRANK PIN (1H9)

90209-20159-00

$5.60

8

PISTON (STD)

5PA-11631-10-A0

$74.99

8

PISTON (STD)

5PA-11631-10-B0

$74.99

8

PISTON (STD)

5PA-11631-10-C0

$74.99

8

PISTON (STD)

5PA-11631-10-D0

$74.99

9

PIN, PISTON

4ES-11633-00-00

$16.49

10

RING, PISTON

5PA-11611-01-00

$16.49

11

CIRCLIP(1HX)

93450-16115-00

$3.88

12

BEARING

93310-21417-00

$33.99

13

KEY WOODRUFF 146115450000

90280-03017-00

Unavailable

14

BEARING(4ED)

93306-20468-00

Unavailable

15

BRG,R-B 6304C3 52MM 144G KY

93306-30421-00

Unavailable

16

OIL SEAL

93102-20485-00

Unavailable
