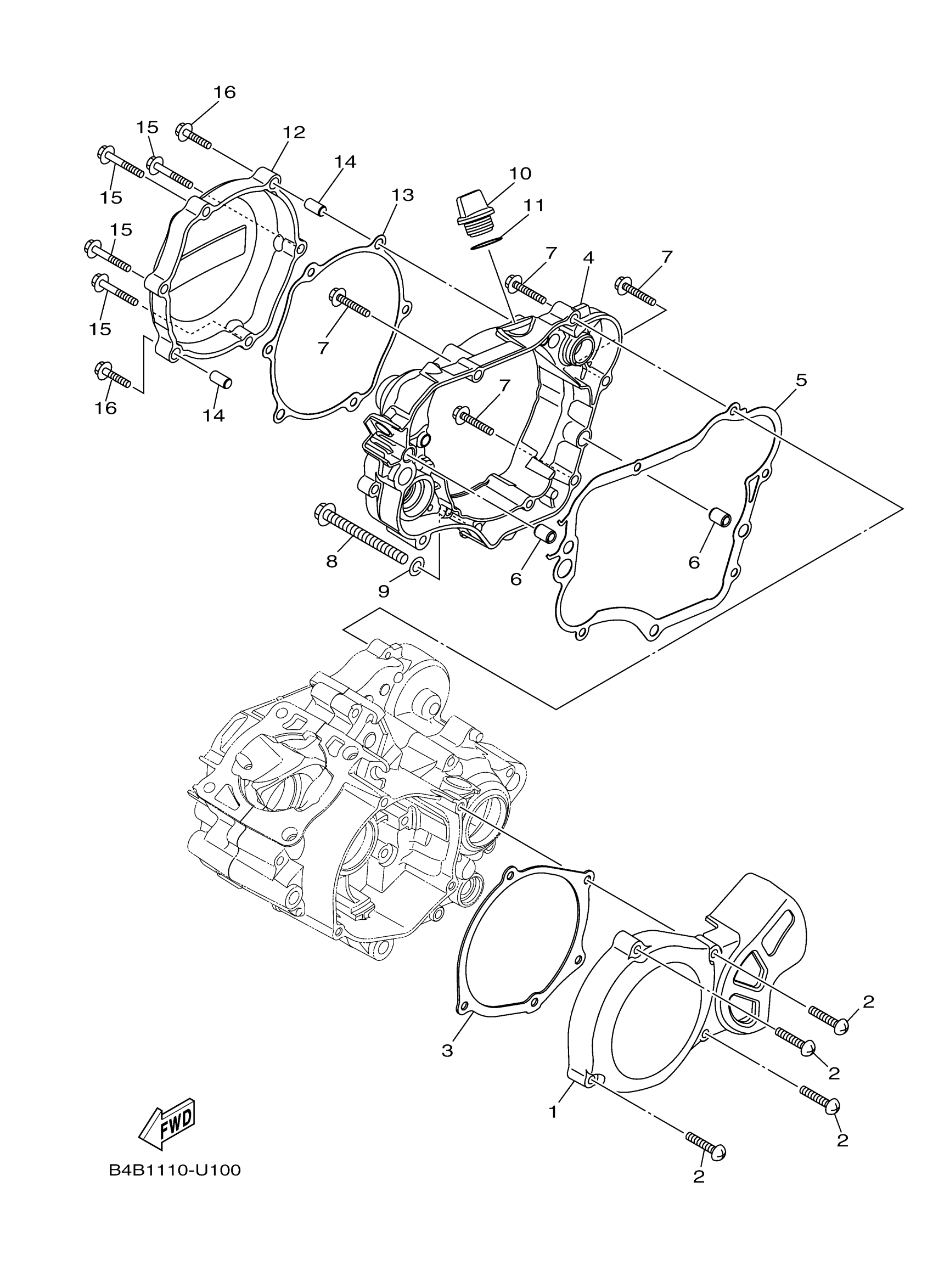

Yamaha YZ85S2 (YZ85) B4BL 2025 CRANKCASE COVER Diagram

COVER, CRANKCASE 1

4ES-15411-02-00

$16.49

SCREW, PAN HEAD

98502-06030-00

$2.18

GASKET, CRANKCASE COVER 1

5PA-15451-00-00

$28.99

COVER, CRANKCASE 3

BR8-15431-00-00

Unavailable

GASKET, CRANKCASE COVER 2

BR8-15461-00-00

$15.99

PIN, DOWEL(3VD)

99530-10114-00

$2.55

BOLT, FLANGE DEEP RECESS

95E32-06030-00

$0.75

BOLT, FLANGE DEEP RECESS

95E32-08080-00

$2.92

GASKET

90430-08119-00

$6.62

PLUG, OIL

3Y1-15363-10-00

$18.49

O-RING (646)

93210-19123-00

Unavailable

COVER, 1

5PA-15415-11-00

Unavailable

GASKET, CARBURETOR COVER 2

5PA-15463-00-00

$14.49

PIN, DOWEL(3XW)

91808-16023-00

$8.49

BOLT, FLANGE DEEP RECESS

95E32-06025-00

$0.48

BOLT, FLANGE DEEP RECESS

95E32-06035-00

Unavailable
