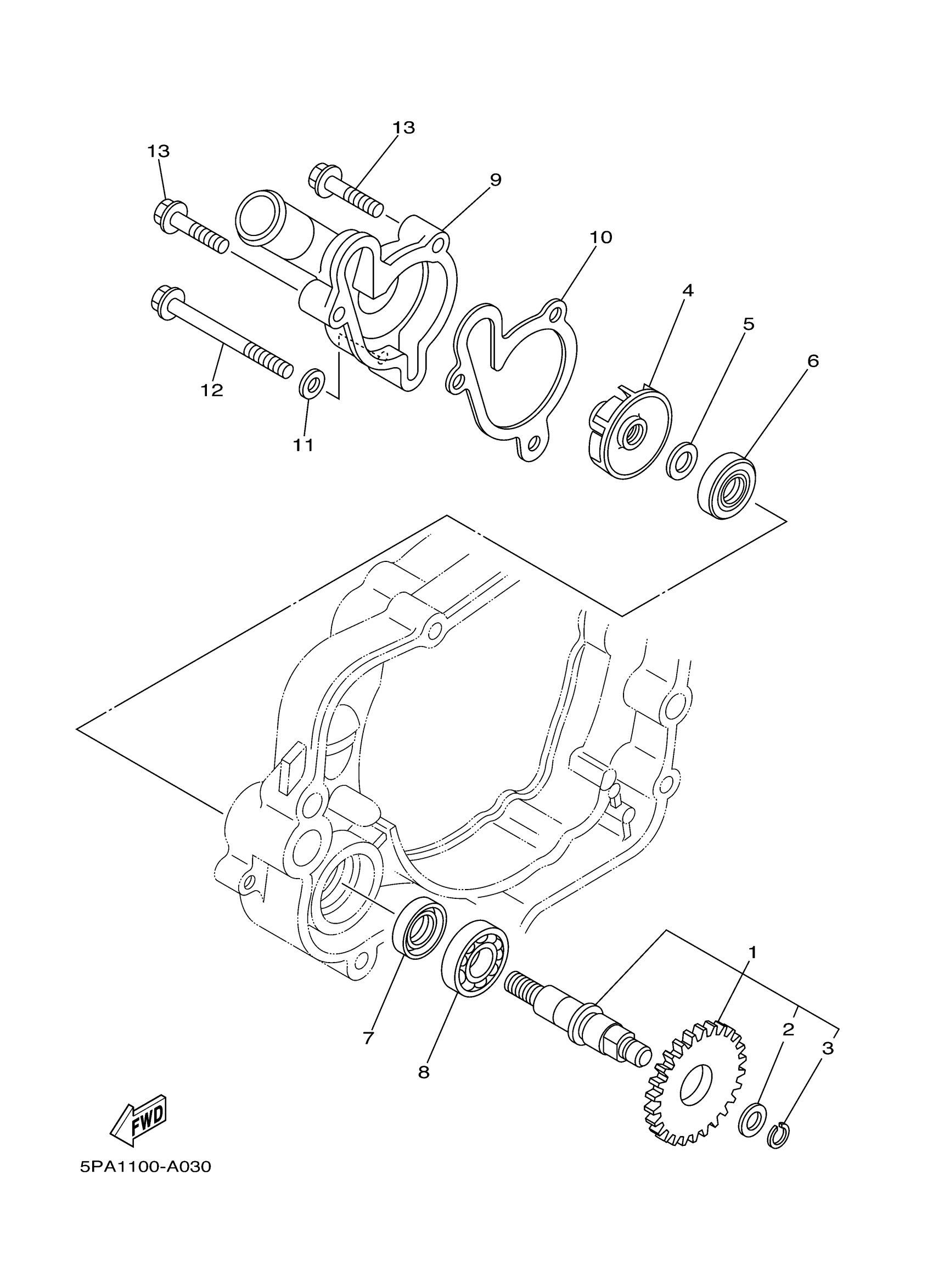

Yamaha YZ85S (YZ85) 5PA7 2004 WATER PUMP Diagram

#

Description
Price

1

GEAR, IMPELLER SHAFT

5PA-12459-00-00

$91.87

2

WASHER, PLATE (5F7)

90201-08512-00

$5.75

3

CIRCLIP

93440-07182-00

$2.93

4

IMPELLER, WATER PUMP

5PA-12451-00-00

$44.18

5

WASHER, PLATE (5F7)

90201-08512-00

$5.75

6

OIL SEAL

93109-11073-00

$9.00

7

OIL SEAL (12X22X5-371)

93102-12106-00

$9.45

8

BRG,R-B 6001 28MM 28G KY

93306-00105-00

$23.71

9

COVER, HOUSING

4BA-12422-00-00

$87.76

10

GASKET, HOUSING COVER 2

4BA-12428-00-00

$6.29

11

GASKET (4V2)

90430-06166-00

$3.22

12

BOLT, FLANGE

95817-06060-00

$2.60

13

BOLT, SMALL FLANGE

95027-06025-00

$2.95
