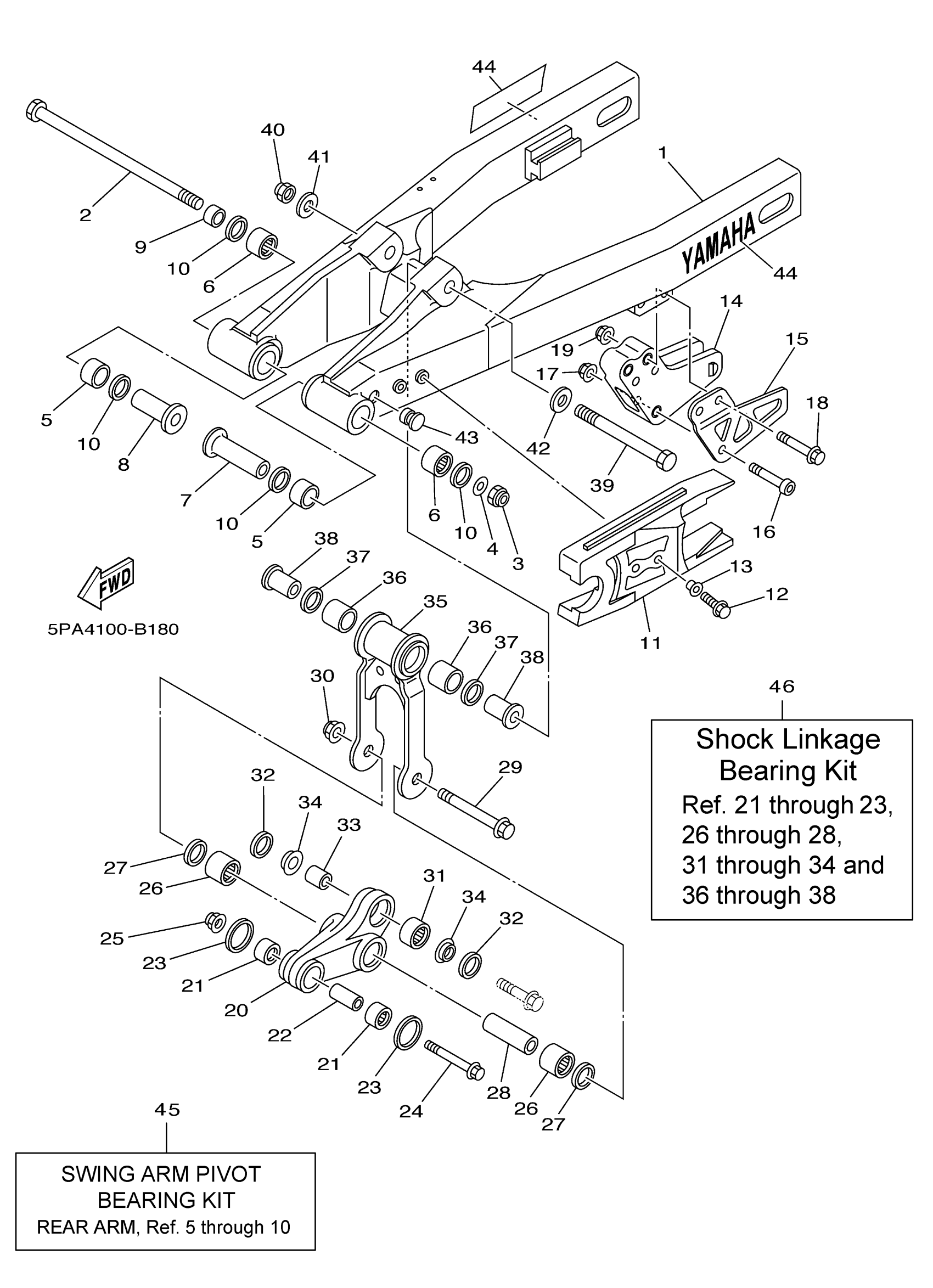

Yamaha YZ85S (YZ85) 5PA7 2004 REAR ARM Diagram
#
1
REAR ARM COMP.
5PA-22110-00-00
Unavailable
15
COVER, THRUST 1
5PA-22128-00-00
Unavailable
16
BOLT, BUTTON HEAD
92017-06040-00
Unavailable
17
NUT,SELF-LOCKING
95607-06200-00
Unavailable
18
BOLT, SMALL FLANGE
95027-08050-00
Unavailable
19
NUT, SELF-LOCKING
90185-08169-00
Unavailable
20
ARM, RELAY
5PA-2217A-00-00
Unavailable
21
BEARING, CYLINDRICAL(8CM)
93315-21455-00
Unavailable
22
BUSH, SOLID(4ES)
90380-10218-00
Unavailable
23
COVER, THRUST 2
4ES-22129-00-00
Unavailable
24
BOLT, WASHER BASED(3FV)
90105-10582-00
Unavailable
25
NUT, SELF-LOCKING(JN5)
95607-10200-00
Unavailable
26
BEARING, CYLINDRICAL(3YL)
93317-31771-00
Unavailable
27
OIL SEAL (17X25X4-401)
93101-17062-00
Unavailable
28
BUSH, SOLID(4ES)
90380-12219-00
Unavailable
29
BOLT, FLANGE
90105-12382-00
Unavailable
30
NUT, U FLANGE
95607-12200-00
Unavailable
31
BEARING
5PA-22176-00-00
Unavailable
32
SEAL, DUST
5PA-22475-00-00
Unavailable
33
BUSH
5PA-22184-00-00
Unavailable
34
COLLAR, DISTANCE
5PA-22253-00-00
Unavailable
35
ROD, CONNECTING 1
4ES-2217F-00-00
Unavailable
36
BEARING, CYLINDRICAL(3YL)
93317-31771-00
Unavailable
37
OIL SEAL (17X25X4-401)
93101-17062-00
Unavailable
38
BUSH, SOLID(4ES)
90381-12091-00
Unavailable
39
BOLT(4ES)
90101-12755-00
Unavailable
40
NUT, SELF LOCKING (23X)
90185-12119-00
Unavailable
41
WASHER, PLATE
90201-12047-00
Unavailable
42
WASHER, PLATE(55K)
90201-127J6-00
Unavailable
43
PLUG (31M)
90338-10150-00
Unavailable
44
EMBLEM, YAMAHA
99244-00140-00
Unavailable
45
SWING ARM PIVOT BEARING KIT
1SN-W002C-00-00
Unavailable
46
SHOCK LINKAGE BEARING KIT
1SN-W002E-00-00
Unavailable
