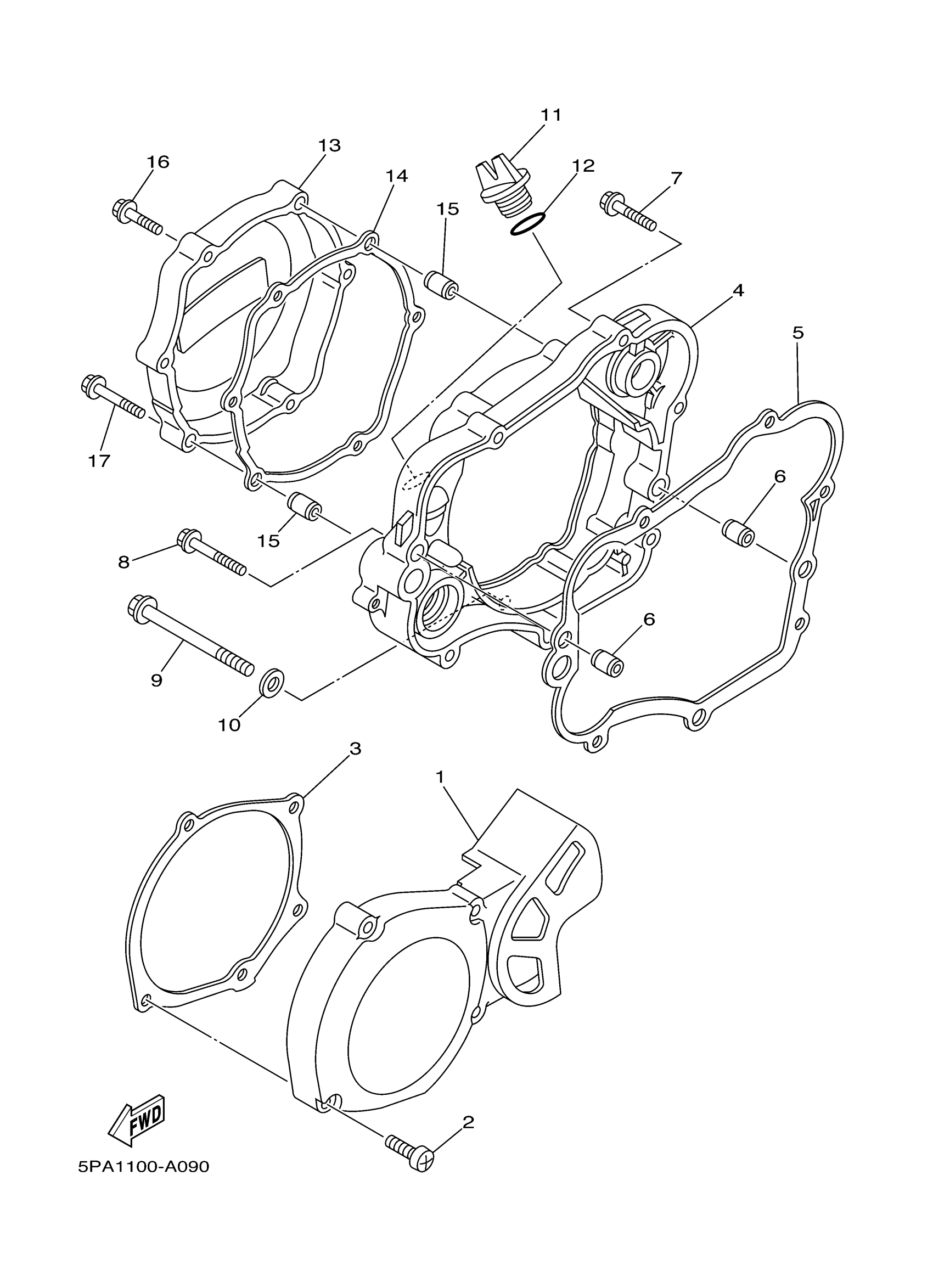

Yamaha YZ85S (YZ85) 5PA7 2004 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE 1

4ES-15411-02-00

$12.08

2

SCREW, PAN

98517-06030-00

$2.88

3

GASKET, CRANKCASE COVER 1

5PA-15451-00-00

$20.42

4

COVER, CRANKCASE 3

5PA-15431-01-00

$260.32

5

GASKET, CRANKCASE COVER 2

4ES-15461-00-00

$23.48

6

PIN, DOWEL(3VD)

99530-10114-00

$2.13

7

BOLT, SMALL FLANGE

95027-06030-00

$3.40

8

BOLT, SMALL FLANGE

95027-06040-00

$2.31

9

BOLT, FLANGE(4ES)

95027-08080-00

Unavailable

10

GASKET

90430-08119-00

Unavailable

11

PLUG, OIL

3Y1-15363-10-00

$15.94

12

O-RING (646)

93210-19123-00

Unavailable

13

COVER, GENERATOR

5PA-15415-00-00

Unavailable

14

GASKET, CARBURETOR COVER 2

5PA-15463-00-00

$10.40

15

PIN, DOWEL(3XW)

91808-16023-00

$5.26

16

BOLT, SMALL FLANGE

95027-06025-00

Unavailable

17

BOLT, SMALL FLANGE

95027-06035-00

Unavailable
