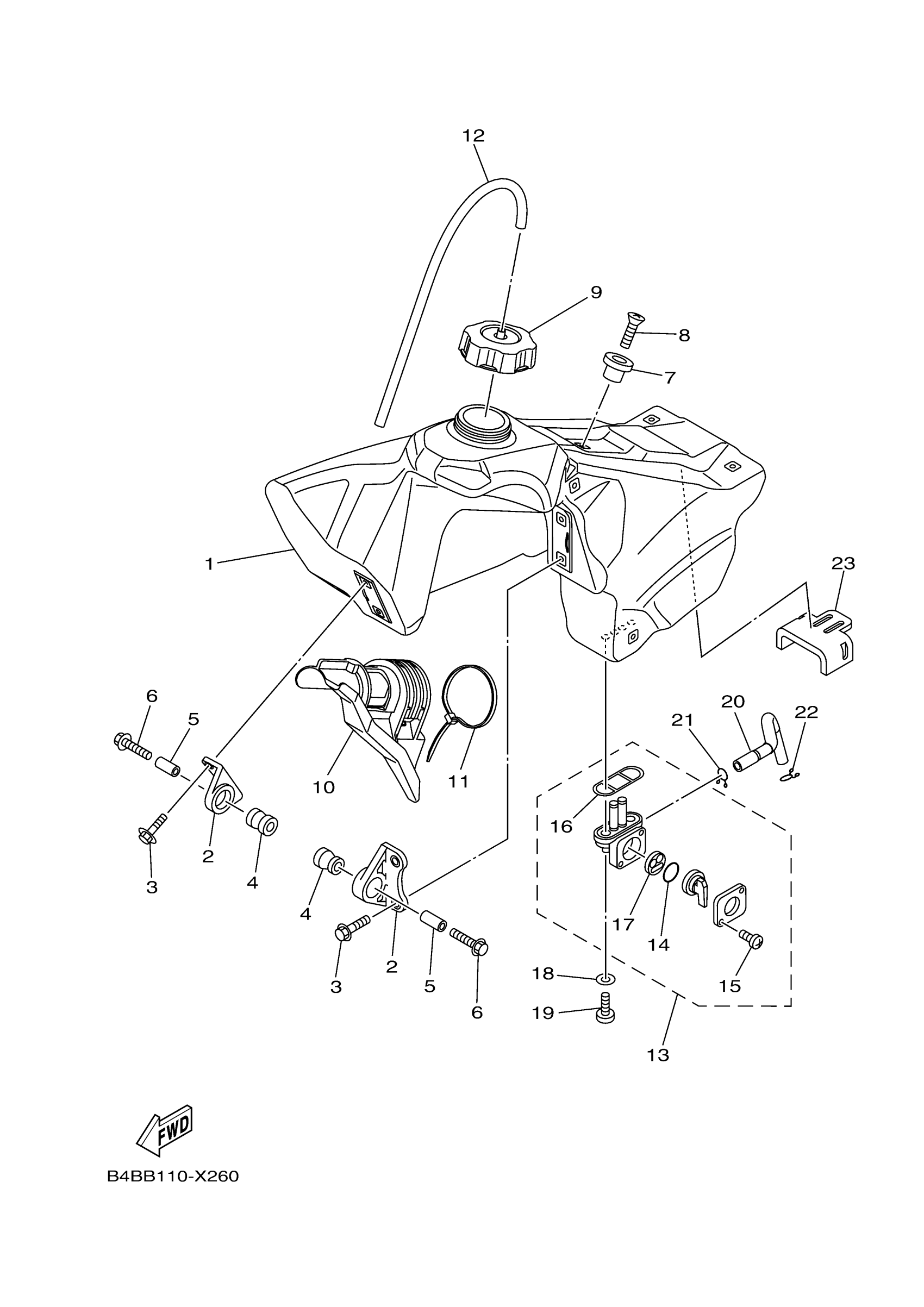

Yamaha YZ85R2 (YZ85) B4BH 2024 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP.

B4B-24110-00-00

Unavailable

2

HOLDER, DAMPER

5XE-24144-00-00

$18.59

3

BOLT, FLANGE DEEP RECESS

95E32-06016-00

$0.56

4

GROMMET(4AA)

90480-18549-00

$8.23

5

COLLAR 849833160000

90387-06027-00

$5.29

6

BOLT, WITH WASHER

90119-06262-00

$5.86

7

BRACKET, SEAT

4EW-2412F-00-00

$11.85

8

SCREW, FLAT HEAD

98702-06025-00

$5.75

9

CAP ASSY

2FJ-24610-20-00

$57.70

10

MOLE, FUEL TANK 1

B4B-2418B-00-00

$36.53

11

CLAMP

90464-65001-00

$4.71

12

HOSE (L420)

90445-092K1-00

$10.47

13

FUEL COCK ASSY 1

4DP-24500-10-00

$76.94

14

SEAL, COCK

3AJ-24534-10-00

$6.74

15

SCREW, PAN HEAD(3AC)

98517-03008-00

$2.56

16

O-RING

4X8-24512-10-00

Unavailable

17

VALVE PACKING

3AC-24523-00-00

Unavailable

18

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

19

SCREW

90149-06108-00

Unavailable

20

PIPE, FUEL 1

BR8-24311-00-00

Unavailable

21

CLIP

90467-100A1-00

Unavailable

22

CLIP

90467-09002-00

Unavailable

23

DAMPER, LOCATING 1

5PA-24181-00-00

Unavailable
