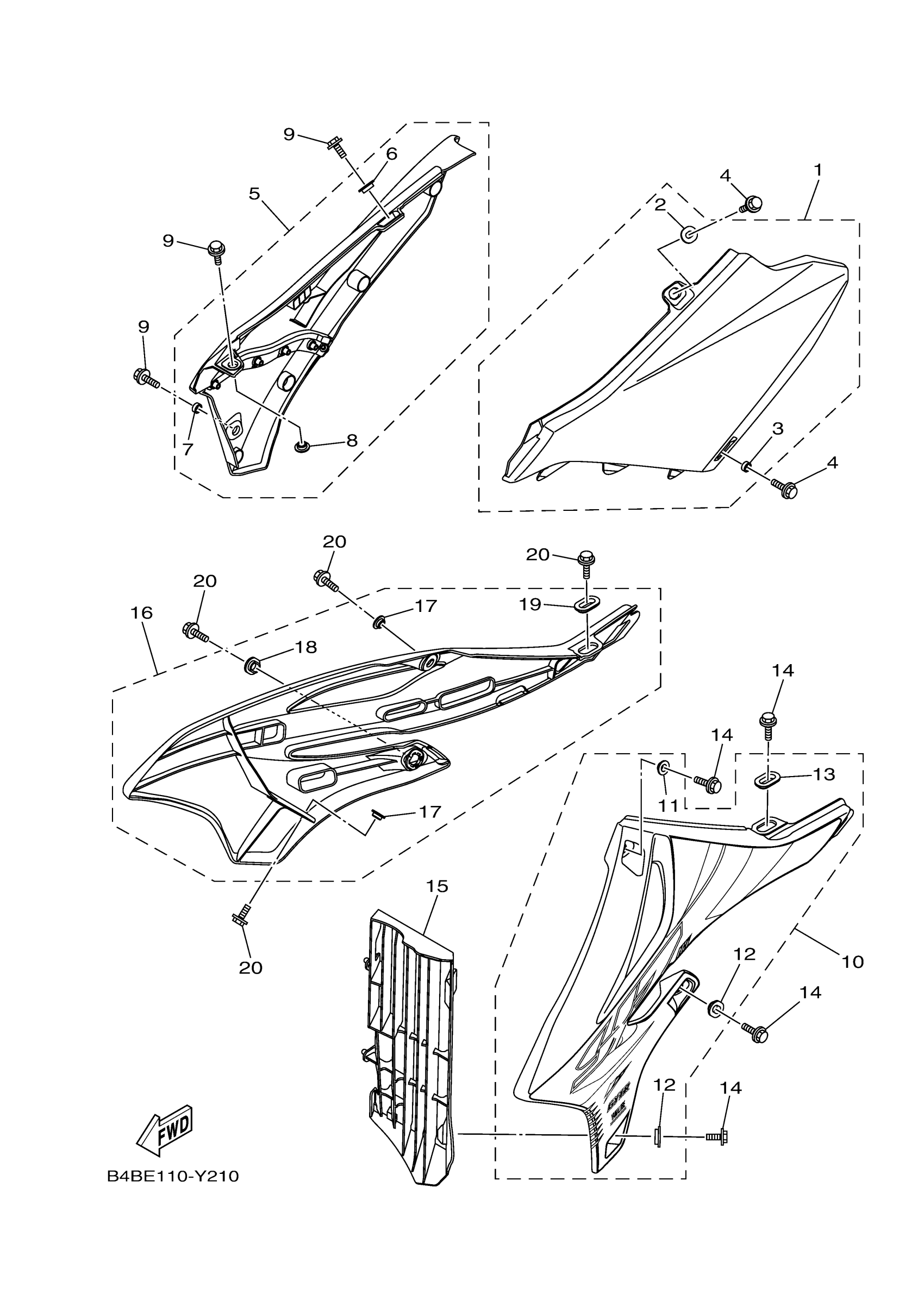

Yamaha YZ85P2 (YZ85) B4BE 2023 SIDE COVER Diagram

#

Description
Price

1

SIDE COVER ASSY 1

B4B-21710-00-00

$32.99

2

COLLAR

17D-14449-00-00

$7.99

3

COLLAR

90387-07015-00

$2.17

4

BOLT, FLANGE

90105-06170-00

$4.72

5

SIDE COVER ASSY 2

B4B-21720-00-00

$32.99

6

COLLAR

17D-14449-00-00

$7.99

7

COLLAR

90387-07015-00

$2.17

8

COLLAR

90387-06009-00

$10.49

9

BOLT, FLANGE

90105-06170-00

$4.72

10

SIDE COVER ASSY 3

B4B-21730-00-00

Unavailable

10

SIDE COVER INSERT ASSY. 3

B4B-217R0-J0-00

$298.99

11

COLLAR

90387-06009-00

$10.49

12

COLLAR

5TA-21749-00-00

$11.99

13

COLLAR

1SL-21748-00-00

$11.99

14

BOLT, FLANGE

90105-06064-00

Unavailable

15

PANEL 1

B4B-2172A-10-00

Unavailable

16

SIDE COVER ASSY 4

B4B-21740-00-00

Unavailable

16

SIDE COVER INSERT ASSY. 4

B4B-217S0-J0-00

Unavailable

17

COLLAR

90387-06009-00

$10.49

18

COLLAR

5TA-21749-00-00

$11.99

19

COLLAR

1SL-21748-00-00

$11.99

20

BOLT, FLANGE

90105-06064-00

Unavailable
