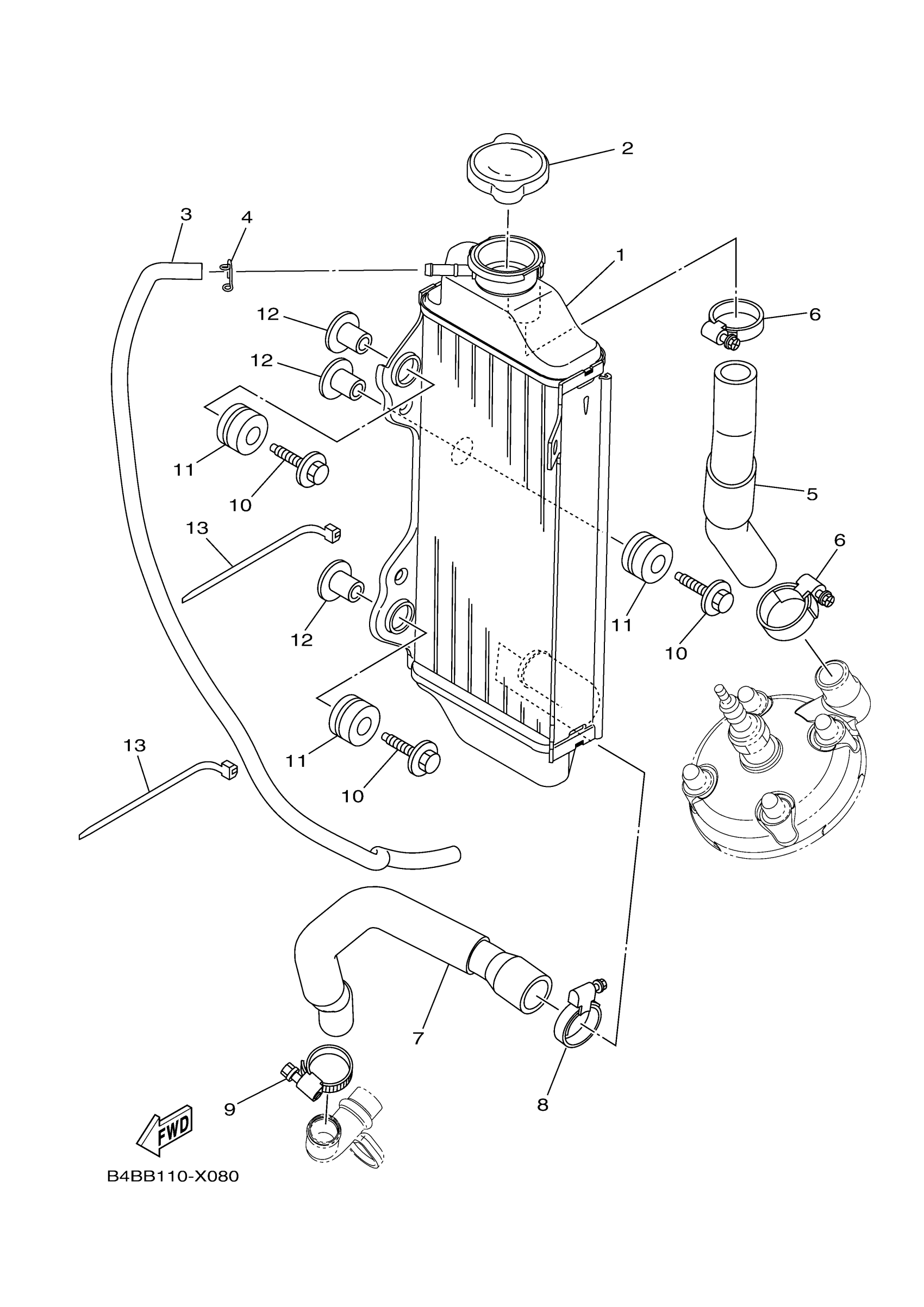

Yamaha YZ85P2 (YZ85) B4BE 2023 RADIATOR & HOSE Diagram

#

Description
Price

1

RADIATOR COMP

B4B-12461-00-00

$250.71

2

CAP, RADIATOR

5SL-12462-01-00

Unavailable

3

PIPE, BREATHER

22W-12463-00-00

$17.83

4

CLIP, PIPE 6162435600

90467-08004-00

$6.87

5

PIPE 1

4ES-12481-10-00

$20.70

6

HOSE CLAMP ASSY(64X)

90450-22M14-00

$12.87

7

HOSE 2

B4B-12577-00-00

$22.68

8

HOSE CLAMP ASSY

90450-28001-00

$11.70

9

HOSE CLAMP ASSY(64X)

90450-22M14-00

$12.87

10

BOLT, WITH WASHER

90119-06262-00

$5.86

11

GROMMET(3RB)

90480-15528-00

$6.22

12

COLLAR

90387-06065-00

$8.92

13

CLAMP

90464-25004-00

$2.20
