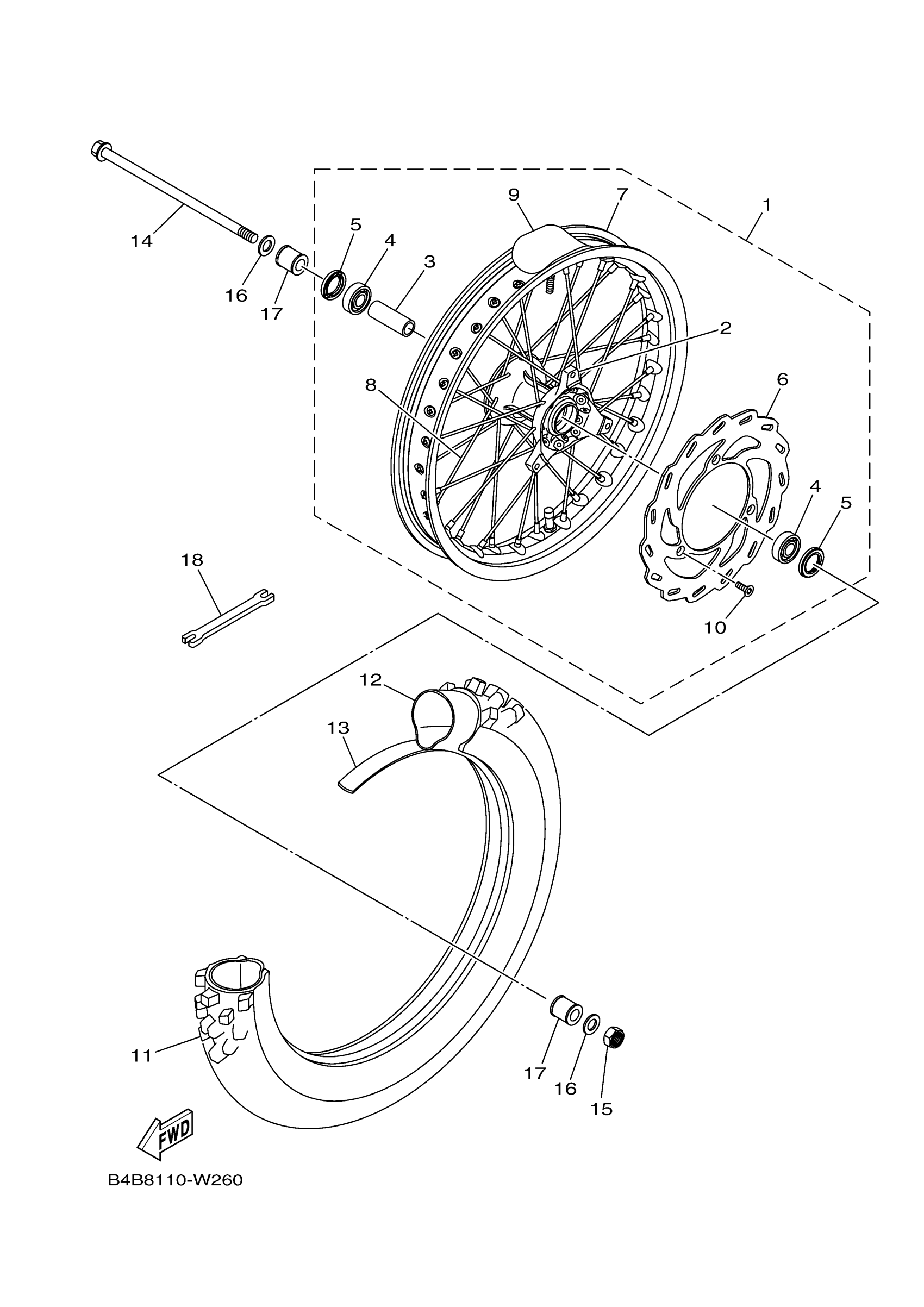

Yamaha YZ85P2 (YZ85) B4BE 2023 FRONT WHEEL Diagram

WHEEL RIM ASSY

B4B-25102-00-00

$350.99

HUB, FRONT

4ES-25111-01-00

$175.99

COLLAR (26H)

90387-124H0-00

$16.99

BEARING(3WF)

93306-20119-00

$33.99

OIL SEAL (22X32X5-818)

93102-22087-00

$12.49

DISC, BRAKE (LEFT)

B4B-2582T-00-00

$124.99

RIM (1.40-17)

94414-17013-00

Unavailable

SPOKE SET, FRONT

4ES-25104-20-00

$72.99

SPACER, BEAD

1T1-25194-00-00

Unavailable

SCREW, COUNTERSUNK

90151-06080-00

$2.18

TIRE (70/100-17 40M MX3SF)

94107-17024-00

Unavailable

TUBE (70/100-17 TR4)(4ES)

94207-17284-00

$21.99

BAND, RIM (22-17)

94307-17166-00

$7.49

AXLE, WHEEL

4ES-25181-00-00

$48.99

NUT, SELF-LOCKING

90185-12010-00

$8.49

WASHER, PLATE

90201-12055-00

Unavailable

COLLAR, WHEEL

BR8-25183-00-00

Unavailable

WRENCH, HEXAGON

1RH-28166-00-00

Unavailable
