Description

Price

1

PISTON RE-BUILT KIT

5PA-WB033-10-A0

$86.99

1

PISTON RE-BUILT KIT

5PA-WB033-10-B0

$86.99

1

PISTON RE-BUILT KIT

5PA-WB033-10-C0

$86.99

1

PISTON RE-BUILT KIT

5PA-WB033-10-D0

$86.99

2

PISTON (STD)

5PA-11631-10-A0

$74.99

2

PISTON (STD)

5PA-11631-10-B0

$74.99

2

PISTON (STD)

5PA-11631-10-C0

$74.99

2

PISTON (STD)

5PA-11631-10-D0

$74.99

3

PIN, PISTON

4ES-11633-00-00

$16.49

4

RING, PISTON

5PA-11611-01-00

$16.49

5

BEARING

93310-21417-00

$33.99

6

CIRCLIP(1HX)

93450-16115-00

$3.88

7

GASKET

1C3-11354-00-00

$5.49

8

GASKET

B4B-11993-00-00

$5.60

9

O-RING (4G0)

93210-56459-00

$13.49

10

O-RING(4ES)

93210-84724-00

Unavailable

11

GASKET, CYLINDER

B4B-11351-00-00

Unavailable

12

WASHER, PLATE

90201-080L8-00

Unavailable

13

O-RING(2HF)

93210-40745-00

Unavailable

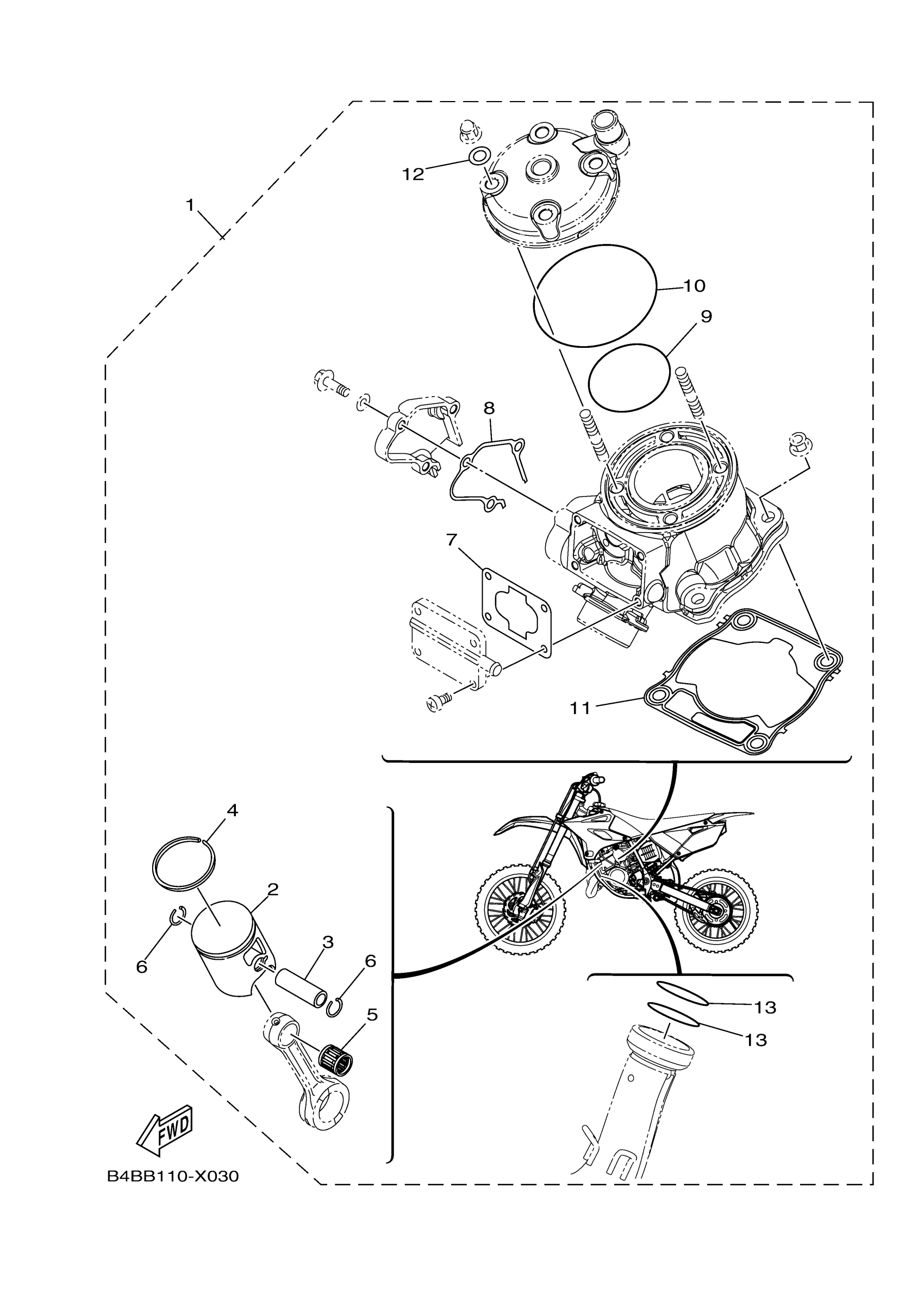

Yamaha YZ85P2 (YZ85) B4BE 2023 4 PISTON REBUILT KIT Diagram

PISTON RE-BUILT KIT

PISTON RE-BUILT KIT

PISTON RE-BUILT KIT

PISTON RE-BUILT KIT

PISTON (STD)

PISTON (STD)

PISTON (STD)

PISTON (STD)

PIN, PISTON

RING, PISTON

BEARING

CIRCLIP(1HX)

GASKET

GASKET

O-RING (4G0)

O-RING(4ES)

GASKET, CYLINDER

WASHER, PLATE

O-RING(2HF)
