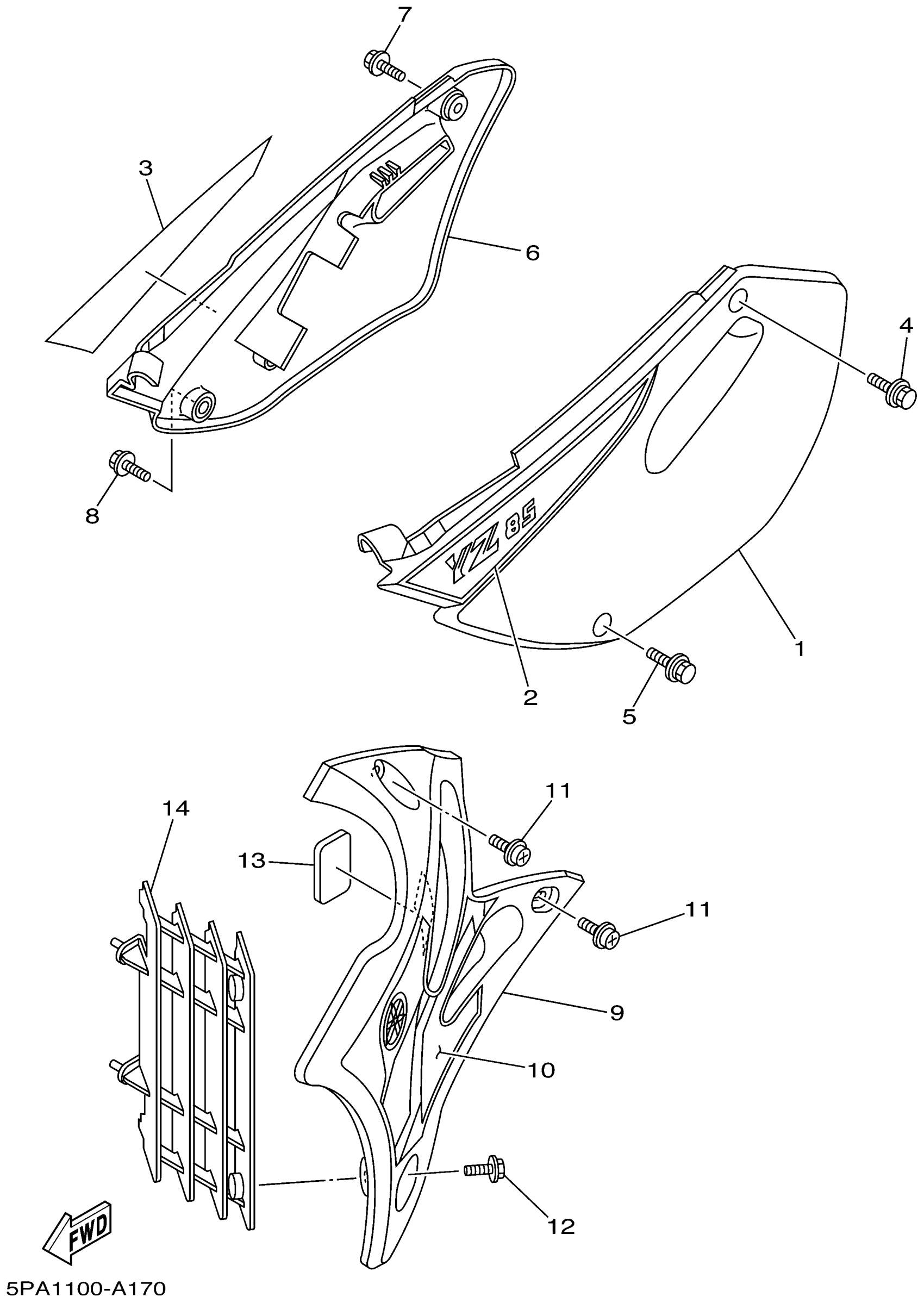

Yamaha YZ85P (YZ85) 5PA1 2002 SIDE COVER Diagram

#

Description
Price

1

COVER, SIDE 1

5PA-21711-00-00

Unavailable

2

GRAPHIC 1

5PA-2173E-01-00

Unavailable

3

GRAPHIC 2

5PA-2173F-01-00

Unavailable

4

BOLT, WITH WASHER(4JX)

90119-06225-00

$9.49

5

BOLT, WITH WASHER

90119-06001-00

$10.49

6

COVER, SIDE 2

5PA-21721-00-00

$37.99

7

BOLT, WITH WASHER(4JX)

90119-06225-00

$9.49

8

BOLT, WITH WASHER

90119-06001-00

$10.49

9

COVER, SIDE 3

5PA-21731-00-00

Unavailable

10

GRAPHIC

5PA-24244-00-00

Unavailable

11

SCREW, WITH WASHER(3YJ)

90159-06182-00

$9.49

12

SCREW, WITH WASHER (34K)

90159-06078-00

$9.49

13

DAMPER

1FK-21746-00-00

$6.99

14

PANEL 1

5PH-2172A-11-00

$21.99
