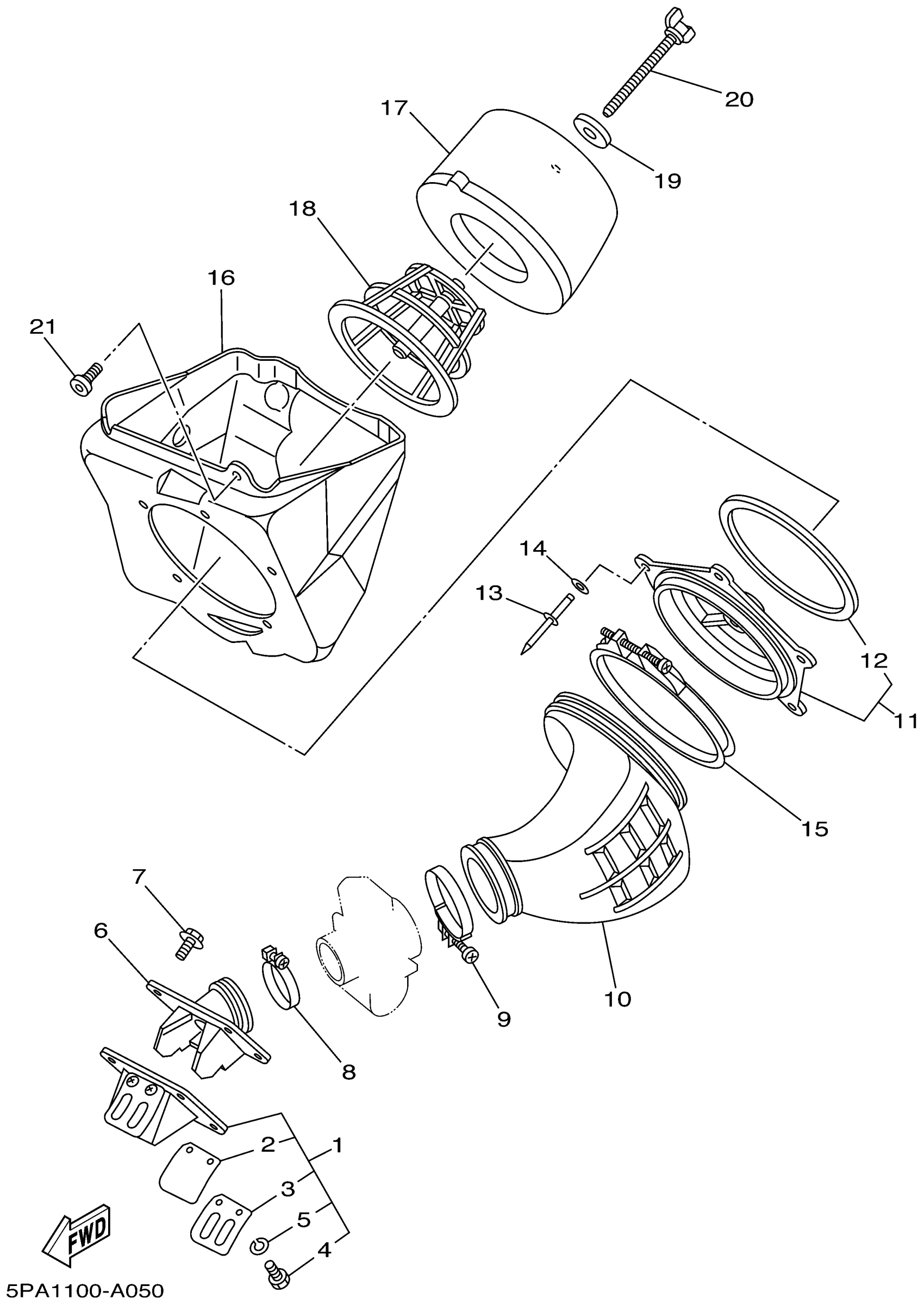

Yamaha YZ85P (YZ85) 5PA1 2002 INTAKE Diagram

REED VALVE ASSY

4ES-13610-00-00

$178.99

REED, VALVE

4ES-13613-00-00

$20.99

STOPPER, REED VALVE

4ES-13616-00-00

$13.49

SCREW, PAN HEAD(3AC)

98517-03008-00

$2.97

WASHER, SPRING

92990-03100-00

$8.49

JOINT, CARBURETOR

5PA-13565-00-00

$116.99

. BOLT, FLANGE

95027-06020-00

Unavailable

CLAMP, HOSE (5R2)

90460-41191-00

$16.99

HOSE CLAMP ASSY

90450-56001-00

$17.99

JOINT, AIR CLEANER

5PA-14453-01-00

Unavailable

HOLDER, GUIDE

5PA-14459-00-00

Unavailable

SEAL

4ES-14462-00-00

$13.49

RIVET, BLIND(80N)

90267-48138-00

$3.76

WASHER, PLATE (34L)

90201-043H7-00

$3.50

HOSE CLAMP ASSY(4ES)

90450-99064-00

$42.99

CASE, AIR CLEANER 1

5PA-14411-10-00

Unavailable

ELEMENT, AIR CLEANER

5PA-14451-02-00

Unavailable

GUIDE

5PA-14458-00-00

Unavailable

WASHER (4H7)

90209-06096-00

Unavailable

BOLT, WING

90122-06010-00

Unavailable

BOLT(3XP)

90109-065F3-00

Unavailable
