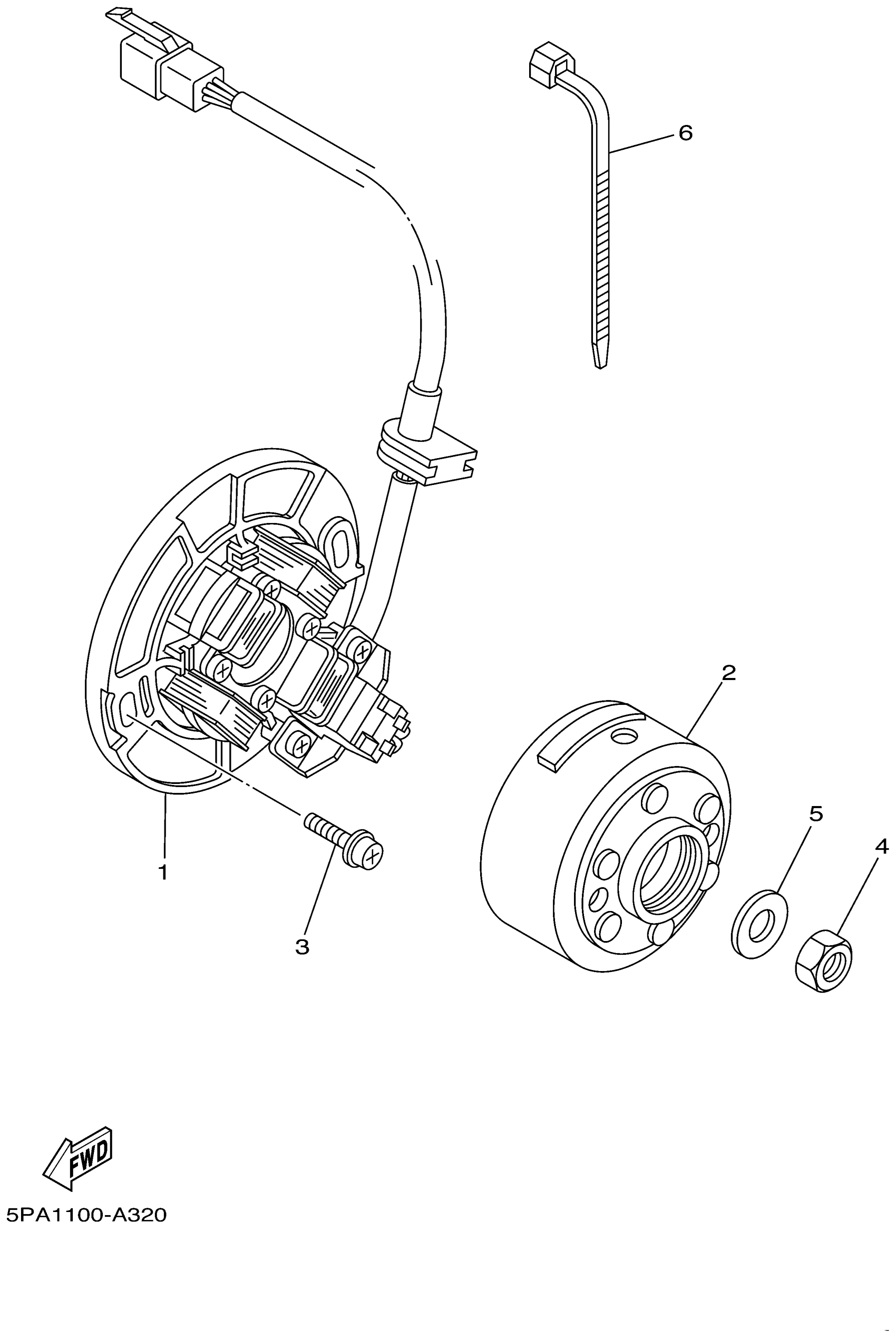

Yamaha YZ85P (YZ85) 5PA1 2002 GENERATOR Diagram

#

Description

Price

1

BASE ASSY

5PA-85560-03-00

$258.14

2

ROTOR ASSY

4SS-85550-11-00

$186.88

3

SCREW 256241430000

90149-06011-00

$1.56

4

NUT(6TD)

95337-10600-00

$6.52

5

WASHER, PLATE (3L6)

90201-10774-00

$5.81

6

CLAMP

90464-13077-00

$6.22
